Condenser Assy, Cooler
PNC 88460
Electrical

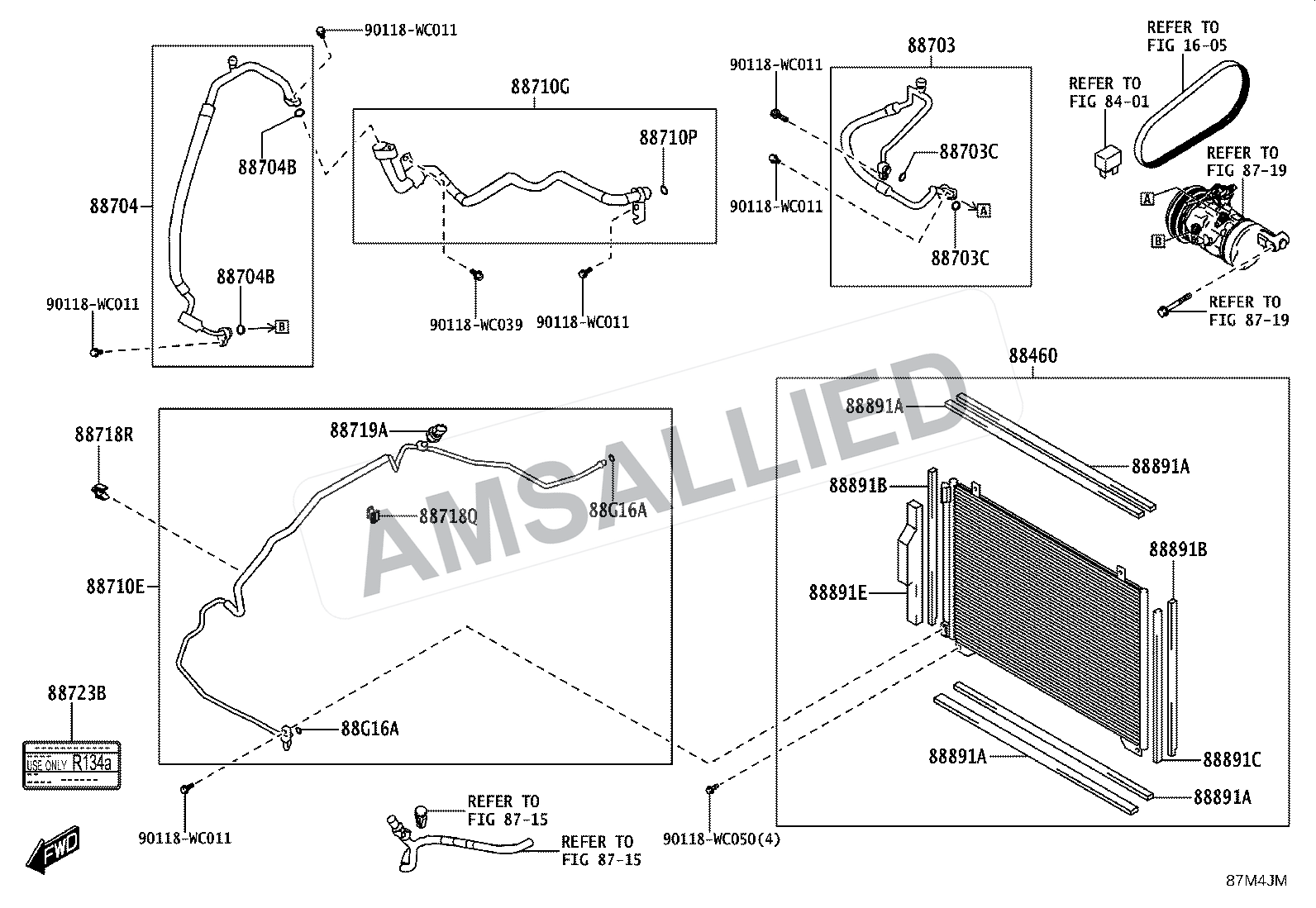

Figure 8718 · Heating & Air Conditioning - Cooler Piping
21 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
21 partsPacking A (for Cooler)
PNC 88891A
Packing B (for Cooler)
PNC 88891B
Packing C (for Cooler)
PNC 88891C
Packing E (for Cooler)
PNC 88891E
Hose Sub-assy, Suction
PNC 88704
Hose Sub-assy, Suction
PNC 88704
Tube & Accessory Assy, Air Conditioner
PNC 88710E
Tube & Accessory Assy, Air Conditioner, No.2
PNC 88710G
Hose Sub-assy, Discharge
PNC 88703
Hose Sub-assy, Discharge
PNC 88703
Clamp, Piping
PNC 88718Q
Sensor, Air Conditioner Pressure
PNC 88719A
Label, Cooler Service Caution
PNC 88723B
Clamp, Piping
PNC 88718R
Ring, O, No.1(for Cooler Refrigerant Liquid Pipe)
PNC 88G16A
Ring, O(for Discharge Hose)
PNC 88703C
Ring, O(for Suction Hose)
PNC 88704B, 88710P
Diagram Hardware / Fastener
PNC 90118WC050
Diagram Hardware / Fastener
PNC 90118WC011
Diagram Hardware / Fastener
PNC 90118WC039
