Electrical

Figure 8606 · Camera & Rear Monitor Display

5 genuine catalog part numbers · Production from 2024-04

Open interactive figure

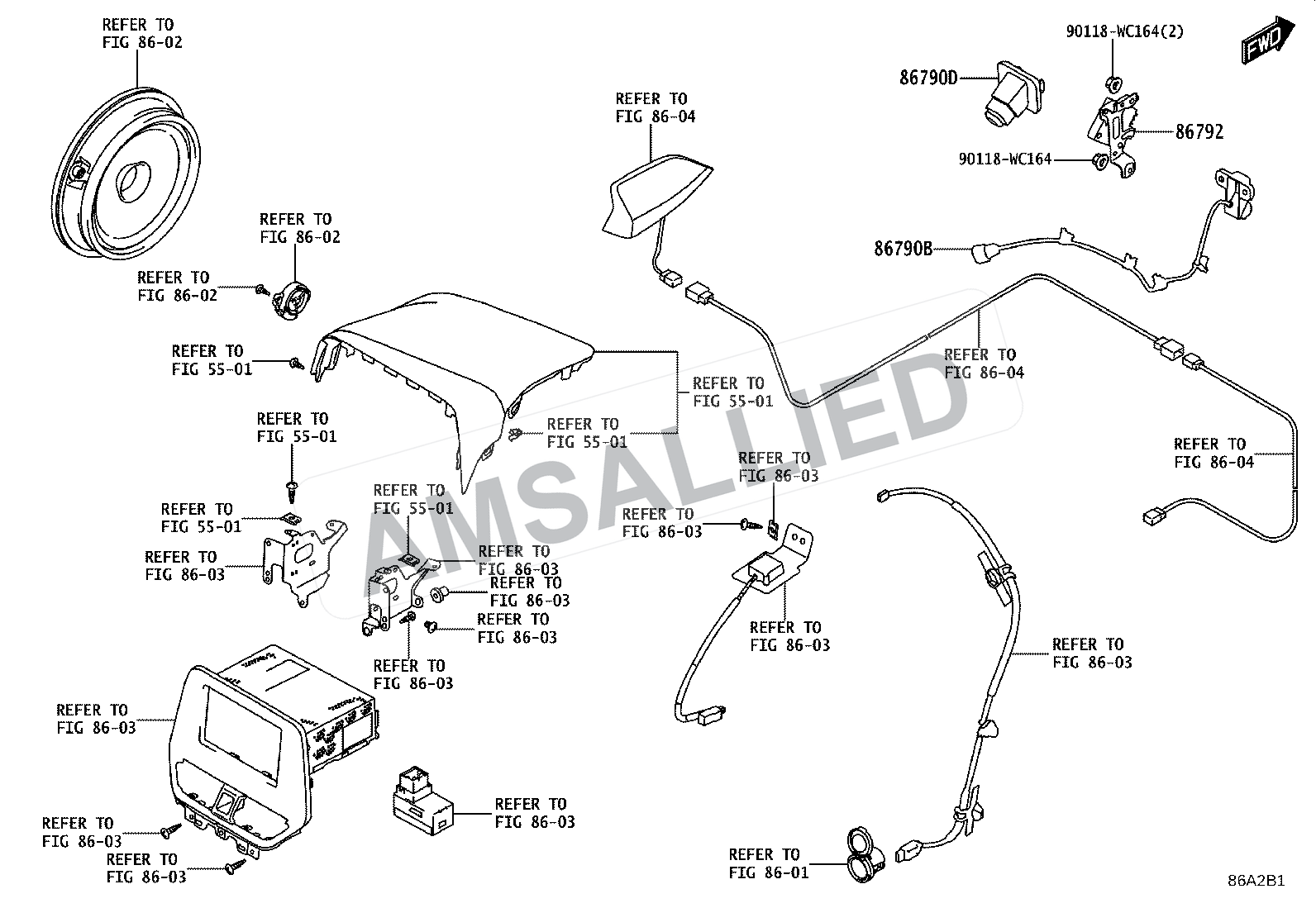

Toyota Taisor Camera & Rear Monitor Display exploded parts diagram, figure 8606 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

5 parts

Camera Assy, Television, Fr

PNC 86790B

Camera Assy, Television, Rr

PNC 86790D

Camera Assy, Television, Rr

PNC 86790D

Controller, Television Camera

PNC 86792

Diagram Hardware / Fastener

PNC 90118WC164
