Figure 8603 · Navigation & Front Monitor Display

13 genuine catalog part numbers · Production from 2024-04

Open interactive figure

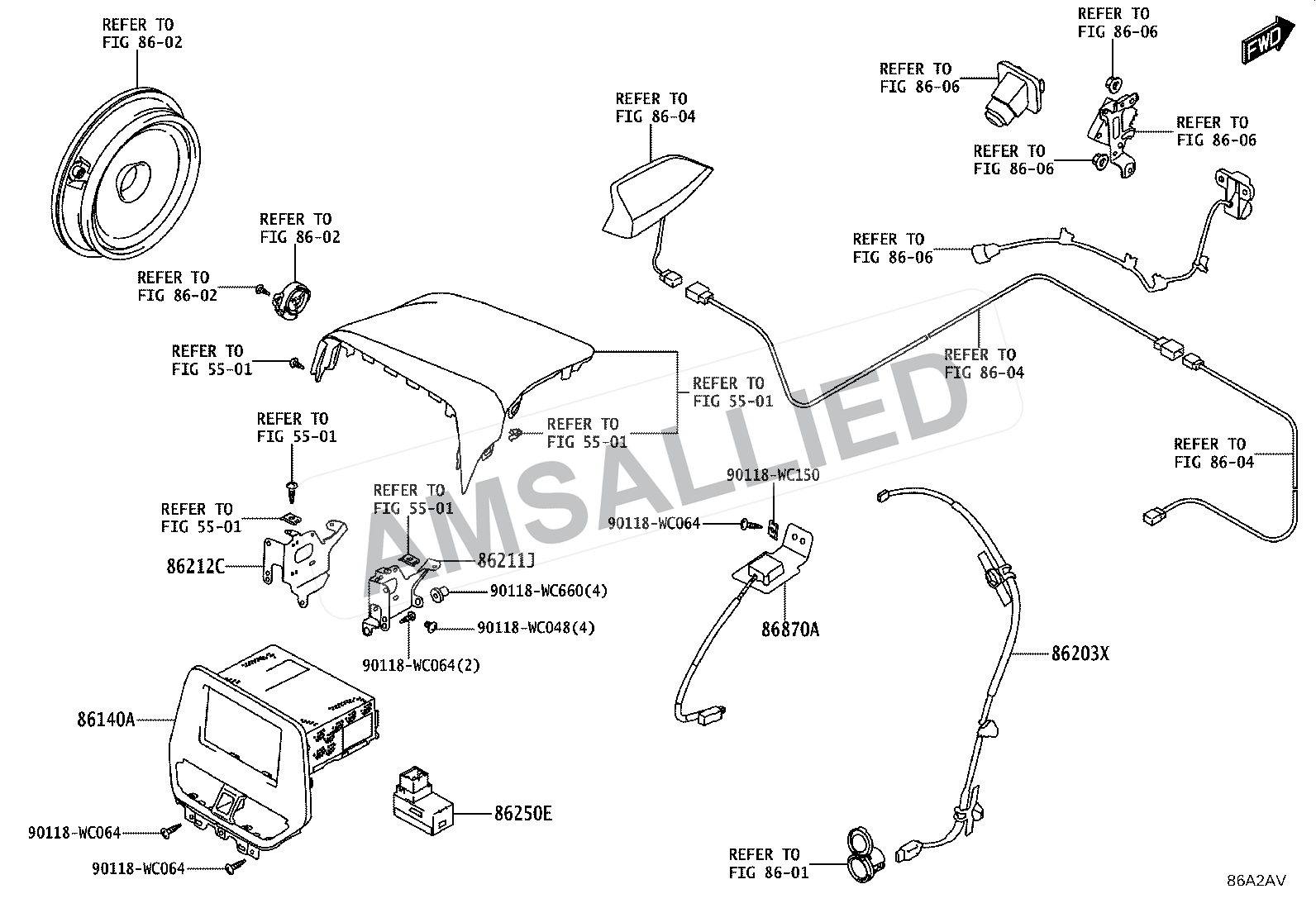

Toyota Taisor Navigation & Front Monitor Display exploded parts diagram, figure 8603 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

13 parts

Receiver Assy, Radio & Display

PNC 86140A

Wiring Sub-assy, Radio

PNC 86203X

Bracket, Radio Receiver, No.1

PNC 86211J

Bracket, Radio Receiver, No.1

PNC 86211J

Bracket, Radio Receiver, No.2

PNC 86212C

Bracket, Radio Receiver, No.2

PNC 86212C

Microphone Assy, Amplifier

PNC 86250E

Antenna Assy, Navigation

PNC 86860

Antenna Assy, Gps & Vics

PNC 86870A

Diagram Hardware / Fastener

PNC 90118WC064

Diagram Hardware / Fastener

PNC 90118WC150

Diagram Hardware / Fastener

PNC 90118WC660

Diagram Hardware / Fastener

PNC 90118WC048
