Electrical

Figure 8601 · Radio Receiver & Amplifier & Condenser

7 genuine catalog part numbers · Production from 2024-04

Open interactive figure

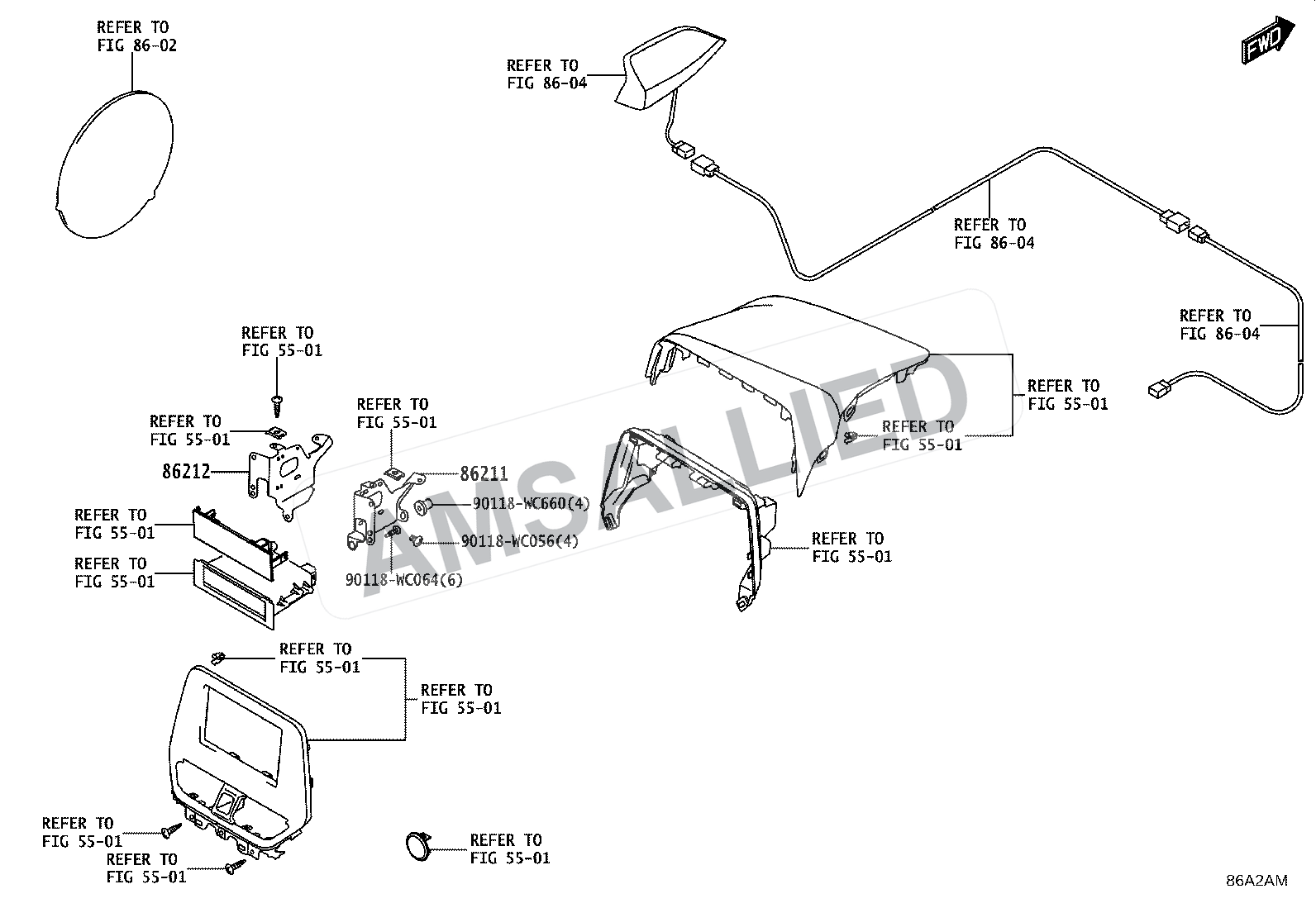

Toyota Taisor Radio Receiver & Amplifier & Condenser exploded parts diagram, figure 8601 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

7 parts

Receiver Assy, Radio

PNC 86120

Adapter Assy, Stereo Jack

PNC 86190F

Bracket, Radio, No.1

PNC 86211

Bracket, Radio, No.2

PNC 86212

Diagram Hardware / Fastener

PNC 90118WC056

Diagram Hardware / Fastener

PNC 90118WC064

Diagram Hardware / Fastener

PNC 90118WC660
