Figure 8503 · Windshield Washer

12 genuine catalog part numbers · Production from 2024-04

Open interactive figure

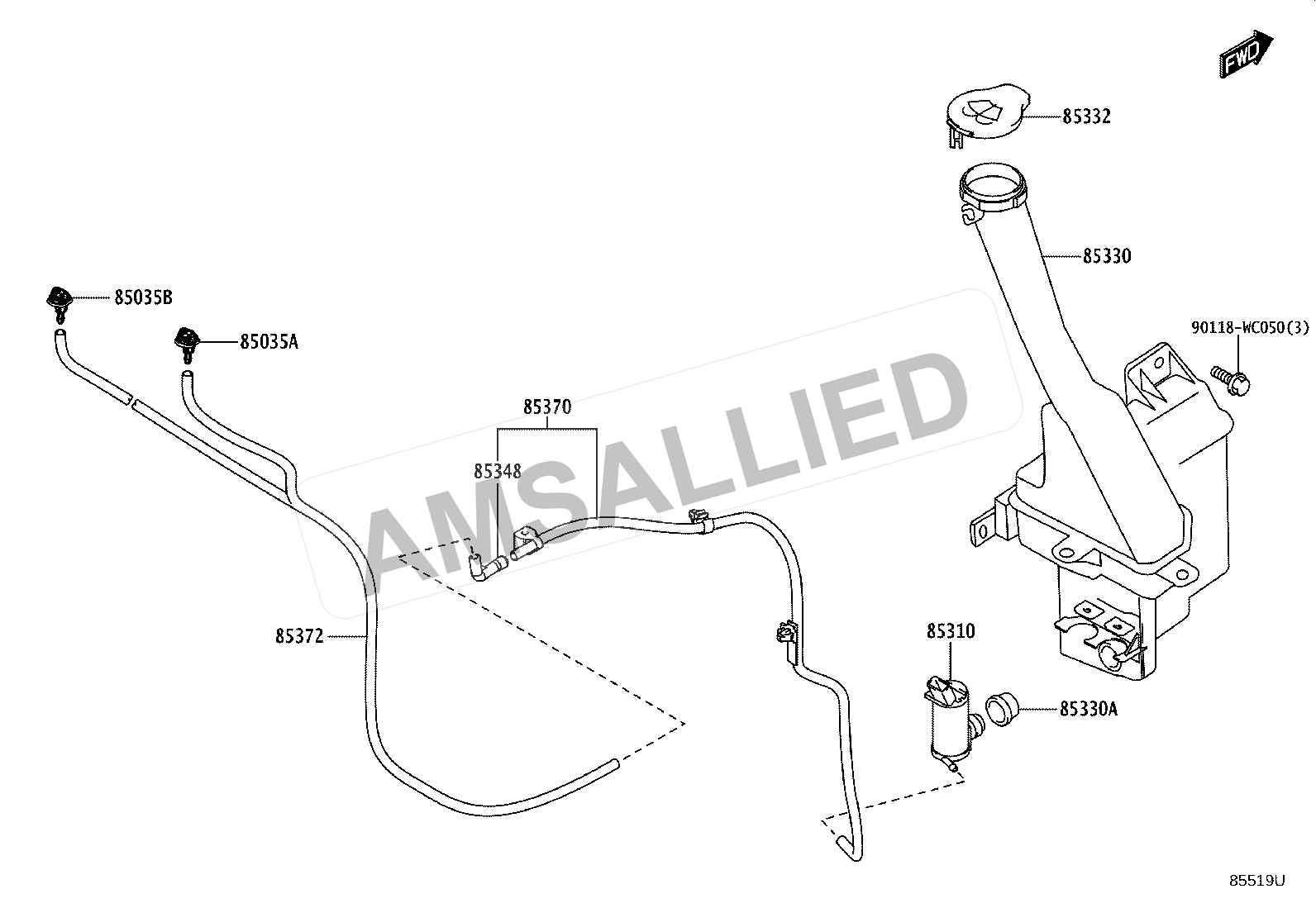

Toyota Taisor Windshield Washer exploded parts diagram, figure 8503 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

12 parts

Cap, Windshield Washer Jar

PNC 85332

Motor And Pump Assy, Windshield Washer

PNC 85310

Jar Assy, Windshield Washer

PNC 85330

Jar Assy, Windshield Washer

PNC 85330

Bush, Windshield Washer Jar

PNC 85330A

Joint, Windshield Washer Hose, No.1

PNC 85348

Hose Assy, Windshield Washer

PNC 85370

Hose Assy, Windshield Washer

PNC 85370

Nozzle, Front Washer, Lh

PNC 85035B

Nozzle, Fr Washer, Rh

PNC 85035A

Hose, Windshield Washer (from Joint To Joint), No.1

PNC 85372

Diagram Hardware / Fastener

PNC 90118WC050
