Figure 8502 · Rear Wiper

6 genuine catalog part numbers · Production from 2024-04

Open interactive figure

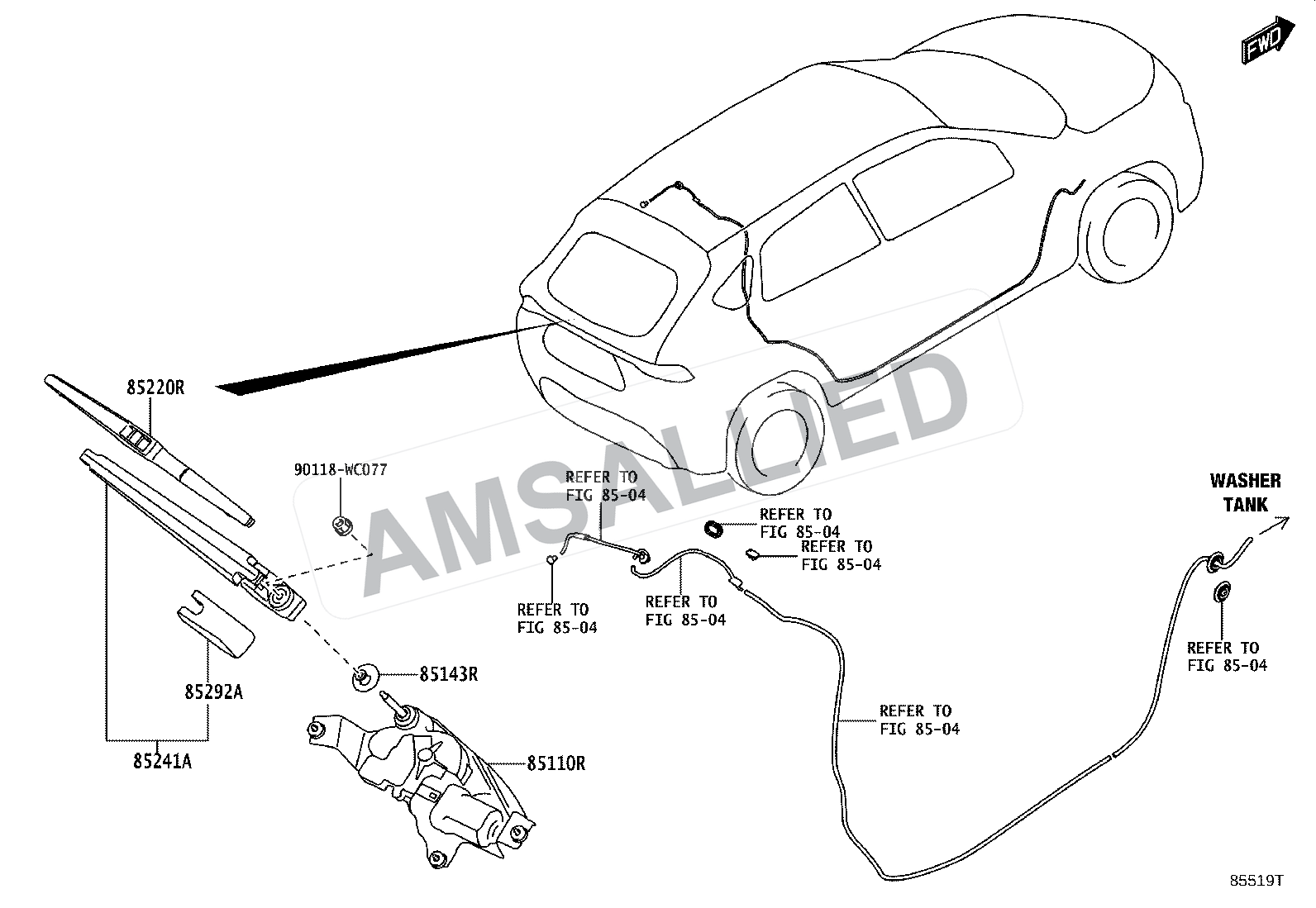

Toyota Taisor Rear Wiper exploded parts diagram, figure 8502 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

6 parts

Motor Assy, Rear Wiper

PNC 85110R

Grommet, Rear Wiper Motor

PNC 85143R

Arm, Rear Wiper

PNC 85241A

Blade Assy, Rear Wiper

PNC 85220R

Cap, Rear Wiper Arm Head

PNC 85292A

Diagram Hardware / Fastener

PNC 90118WC077
