Figure 8301 · Meter

17 genuine catalog part numbers · Production from 2024-04

Open interactive figure

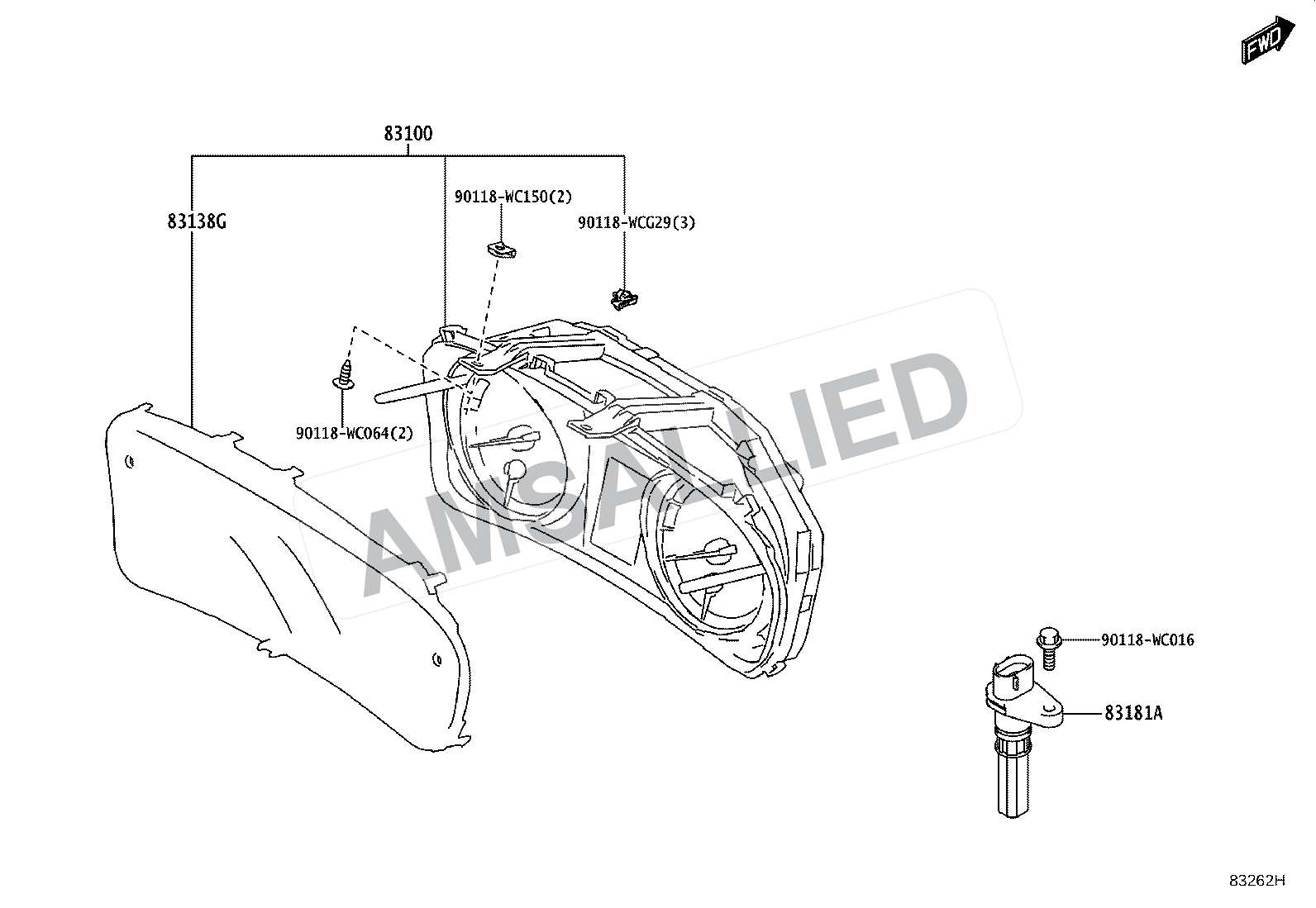

Toyota Taisor Meter exploded parts diagram, figure 8301 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

17 parts

83107-WC002

Bracket Sub-assy, Meter, No.1

PNC 83107A

83108-WC006

Mirror Sub-assy, Meter

PNC 83108

83181-WC001

Sensor, Speedometer

PNC 83181A

83800-WC118

Meter Assy, Combination

PNC 83100

83800-WC119

Meter Assy, Combination

PNC 83100

83800-WC120

Meter Assy, Combination

PNC 83100

83800-WC121

Meter Assy, Combination

PNC 83100

83800-WC122

Meter Assy, Combination

PNC 83100

83800-WC123

Meter Assy, Combination

PNC 83100

83800-WC124

Meter Assy, Combination

PNC 83100

83800-WC125

Meter Assy, Combination

PNC 83100

83852-WC012

Glass, Combination Meter

PNC 83138G

90118-WCJ10

Cap, Head Up Display Switch

PNC 84120B

90118-WC150

Diagram Hardware / Fastener

PNC 90118WC150

90118-WC064

Diagram Hardware / Fastener

PNC 90118WC064

90118-WCG29

Diagram Hardware / Fastener

PNC 90118WCG29

90118-WC016

Diagram Hardware / Fastener

PNC 90118WC016
