Electrical

Figure 8201 · Battery & Battery Cable

12 genuine catalog part numbers · Production from 2024-04

Open interactive figure

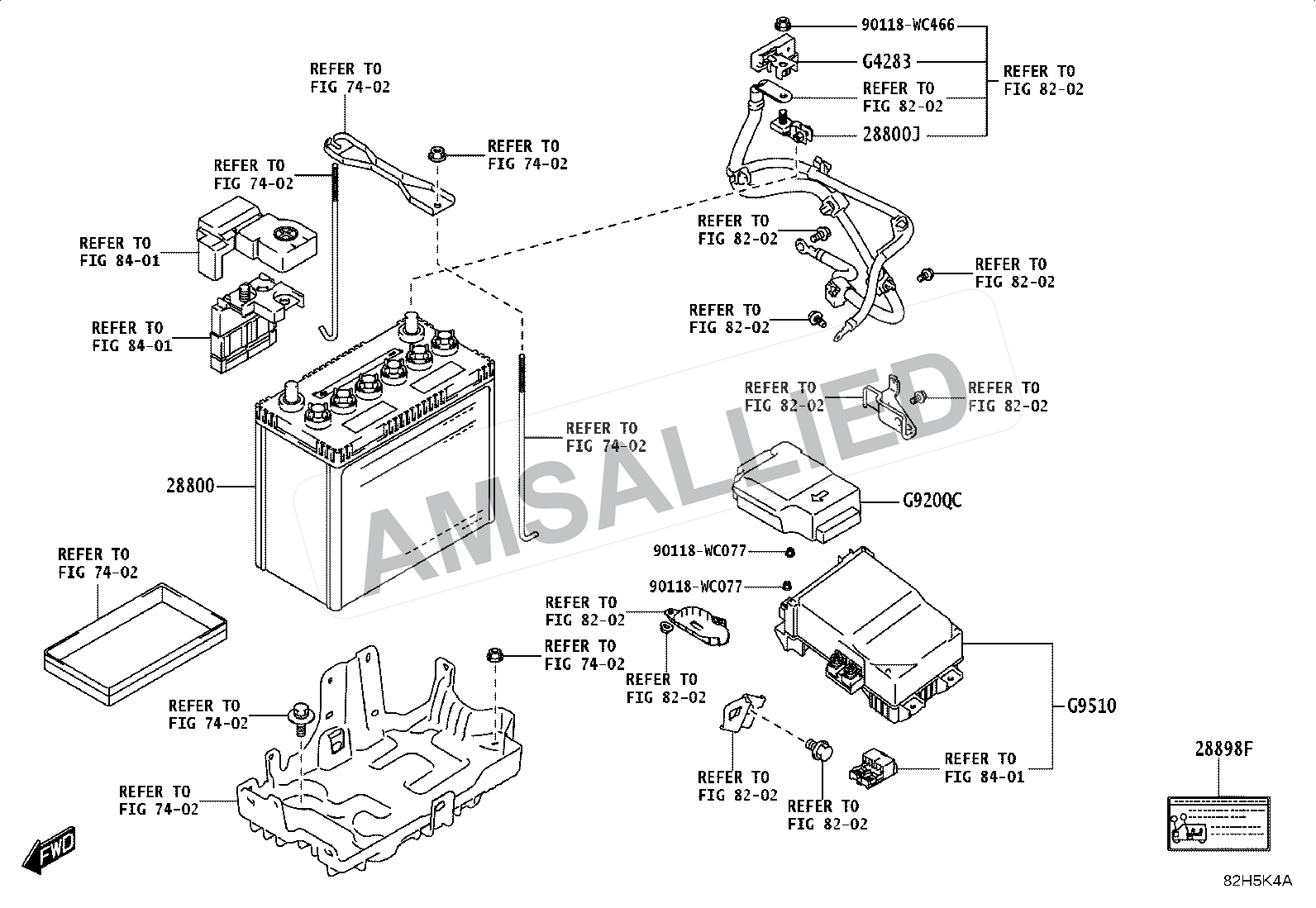

Toyota Taisor Battery & Battery Cable exploded parts diagram, figure 8201 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

12 parts

Battery

PNC 28800

Battery

PNC 28800

Label, Battery Information

PNC 28898F

Insulator, Battery

PNC 28899

Insulator, Battery

PNC 28899

Cover, Connector(for Battery Terminal)

PNC 28800D

Terminal, Battery Negative

PNC 28800J

Sensor, Battery Current

PNC G4283

Cover, Battery Pack

PNC G920QC

Battery Assy, Hv Supply

PNC G9510

Diagram Hardware / Fastener

PNC 90118WC077

Diagram Hardware / Fastener

PNC 90118WC466
