Body

Figure 7503 · Side Moulding

45 genuine catalog part numbers · Production from 2024-04

Open interactive figure

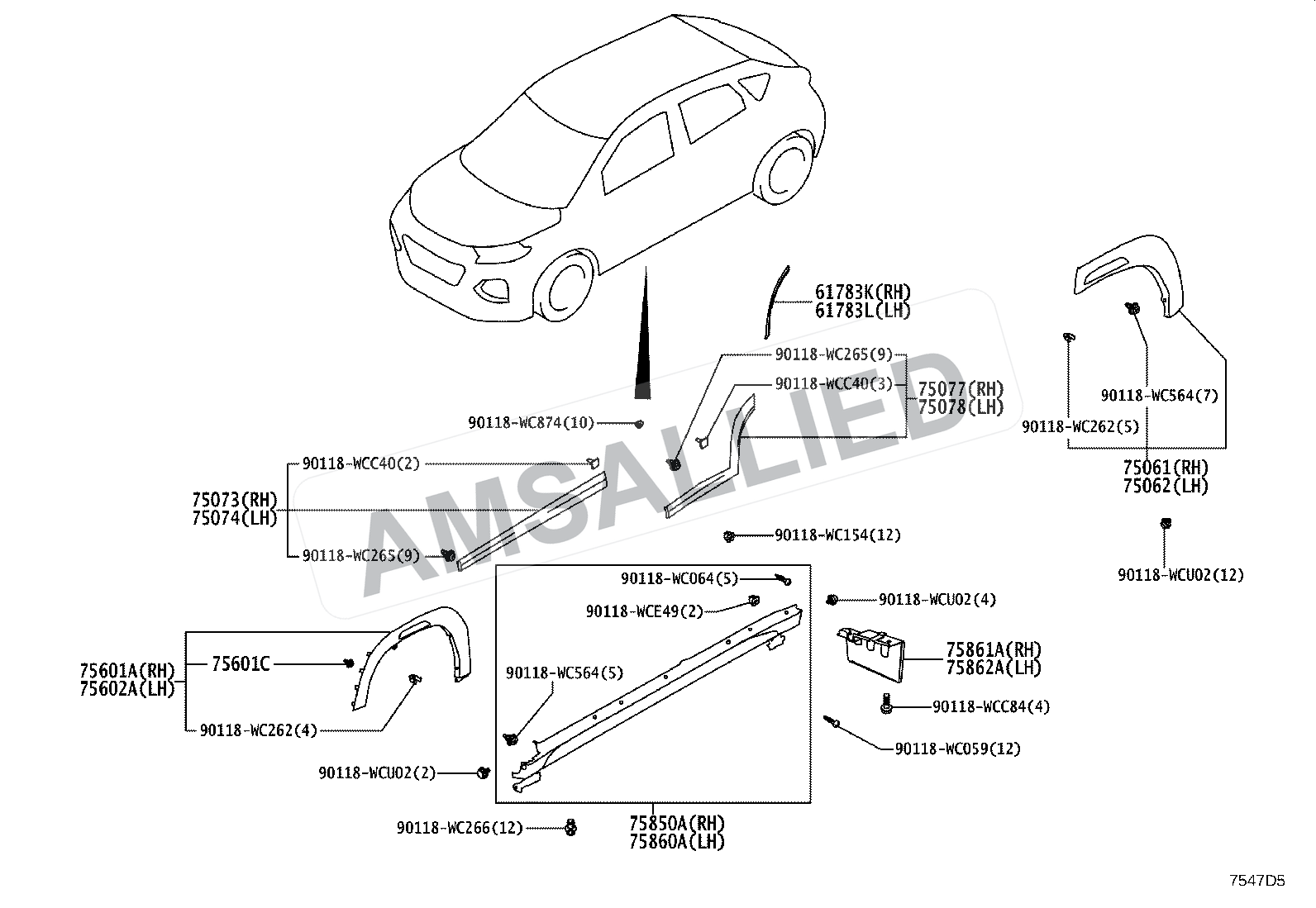

Toyota Taisor Side Moulding exploded parts diagram, figure 7503
AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

45 parts
61783-WC001

Pad, Rear Wheel Opening Extension, Rh

PNC 61783K

61784-WC001

Pad, Rear Wheel Opening Extension, Lh

PNC 61783L

67495-WC002

Moulding Sub-assy, Front Door, Outside Rh

PNC 75071A

67496-WC002

Moulding Sub-assy, Front Door, Outside Lh

PNC 75072A

75073-WC002

Moulding Sub-assy, Front Door, Outside Lower Rh

PNC 75073

75074-WC002

Moulding Sub-assy, Front Door, Outside Lower Lh

PNC 75074

75077-WC002

Moulding Sub-assy, Rear Door Outside Lower Rh

PNC 75077

75078-WC002

Moulding Sub-assy, Rear Door Outside Lower Lh

PNC 75078

75533-WC002

Cover Sub-assy, Front Pillar, Upr Rh

PNC 60117

75534-WC002

Cover Sub-assy, Front Pillar, Upr Lh

PNC 60118

75601-WC004

Moulding Sub-assy, Front Fender, Rh

PNC 75601A

75602-WC004

Moulding Sub-assy, Front Fender, Lh

PNC 75602A

75850-WC004

Moulding Assy, Body Rocker Panel, Rh

PNC 75850A

75850-WC005

Moulding Assy, Body Rocker Panel, Rh

PNC 75850A

75860-WC003

Moulding Assy, Body Rocker Panel, Lh

PNC 75860A

75860-WC004

Moulding Assy, Body Rocker Panel, Lh

PNC 75860A

75861-WC002

Protector, Rocker Panel Moulding, No.1

PNC 75861A

75862-WC002

Protector, Rocker Panel Moulding, No.2

PNC 75862A
