Figure 7402 · Battery Carrier

10 genuine catalog part numbers · Production from 2024-04

Open interactive figure

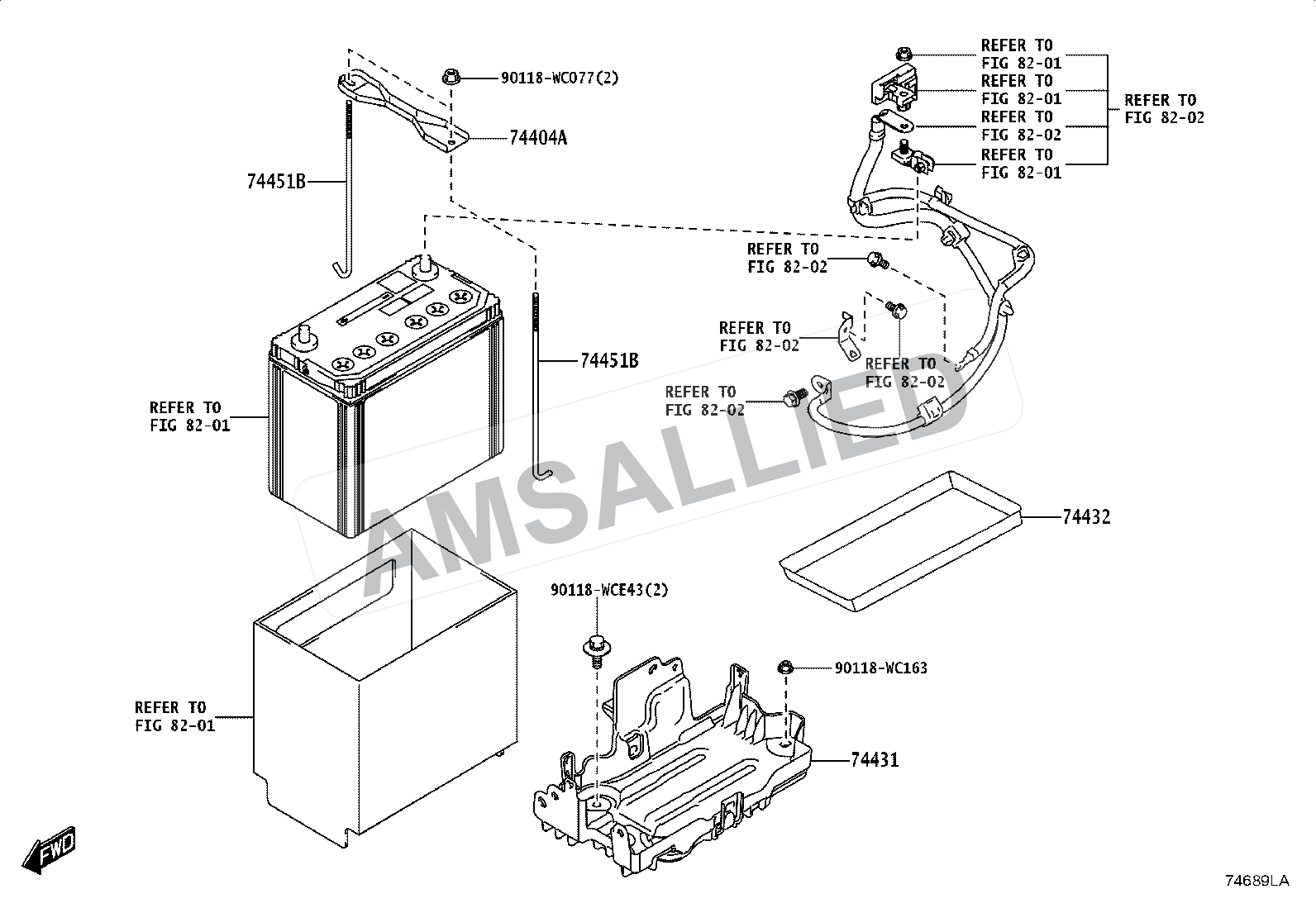

Toyota Taisor Battery Carrier exploded parts diagram, figure 7402 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

10 parts

Clamp Sub-assy, Battery

PNC 74404A

Tray, Battery

PNC 74431

Tray, Battery

PNC 74431

Tray, Battery

PNC 74431

Tray, Battery, No.2

PNC 74432

Tray, Battery, No.2

PNC 74432

Bolt, Battery Clamp

PNC 74451B

Diagram Hardware / Fastener

PNC 90118WC163

Diagram Hardware / Fastener

PNC 90118WC077

Diagram Hardware / Fastener

PNC 90118WCE43
