Frame Sub-assy, Rear Seatback, Rh
PNC 71017
Body

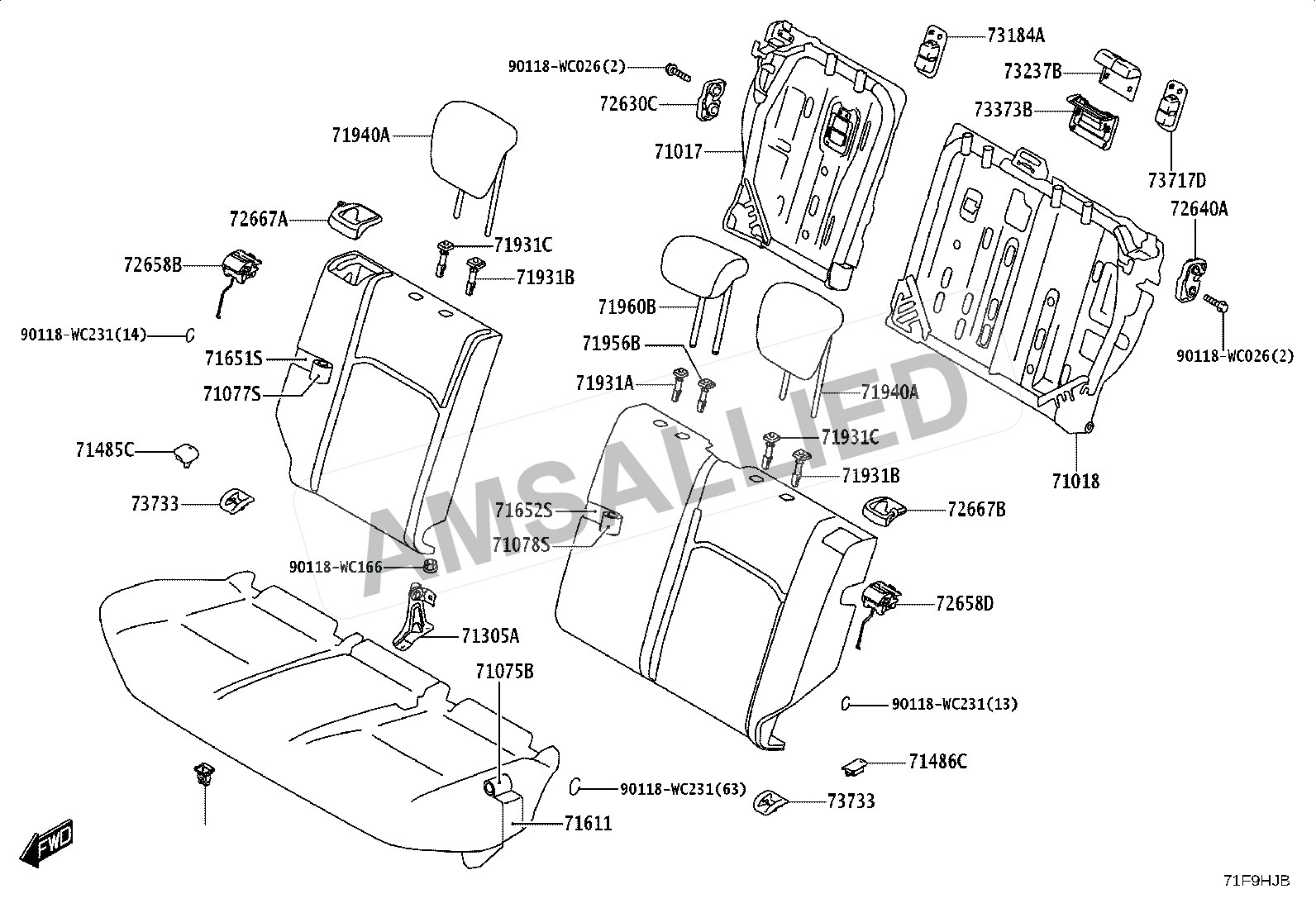

Figure 7102 · Rear Seat & Seat Track
29 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
29 partsFrame Sub-assy, Rear Seatback, Lh
PNC 71018
Cover, Rear Seat Cushion (for Bench Type)
PNC 71075B
Cover, Rear Seatback, Rh (for Separate Type)
PNC 71077S
Cover, Rear Seatback, Lh(for Separate Type)
PNC 71078S
Hinge Sub-assy, Rear Seatback, Center
PNC 71305A
Pad, Rear Seat Cushion
PNC 71611
Pad, Rear Seatback, Rh(for Separate Type)
PNC 71651S
Pad, Rear Seatback, Lh(for Separate Type)
PNC 71652S
Headrest Assy, Rear Seat
PNC 71940A
Headrest Assy, Rear Seat, Center
PNC 71960B
Support Assy, Rear No.1 Seat Headrest
PNC 71931B, 71956B
Support, Rear Seat Headrest
PNC 71931A, 71931C
Cover, Rear Seat Hinge, Rh
PNC 71485C
Cover, Rear Seat Hinge, Lh
PNC 71486C
Lock Assy, Rear Seatback, Rh
PNC 72630C
Knob, Rear Seat Lock Handle
PNC 72658B
Lock Assy, Rear Seatback, Lh
PNC 72640A
Knob, Rear Seat Lock Handle
PNC 72658D
Bezel, Rear Seatback Lock, Upper Lh
PNC 72667B
Bezel, Rear Seatback Lock, Upper Rh
PNC 72667A
Cover, Child Restraint Seat Tether Anchor
PNC 73184A, 73717D
Cover, Child Restraint Seat Tether Anchor
PNC 73184A, 73717D
Cover, Shoulder Belt Anchor
PNC 73237B
Cover, Rear No.1 Seat Shoulder Belt
PNC 73373B
Cover, Child Restraint Seat Base
PNC 73733
Diagram Hardware / Fastener
PNC 90118WC231
Diagram Hardware / Fastener
PNC 90118WC166
Diagram Hardware / Fastener
PNC 90118WC026
