Body

Figure 7101 · Front Seat & Seat Track

66 genuine catalog part numbers · Production from 2024-04

Open interactive figure

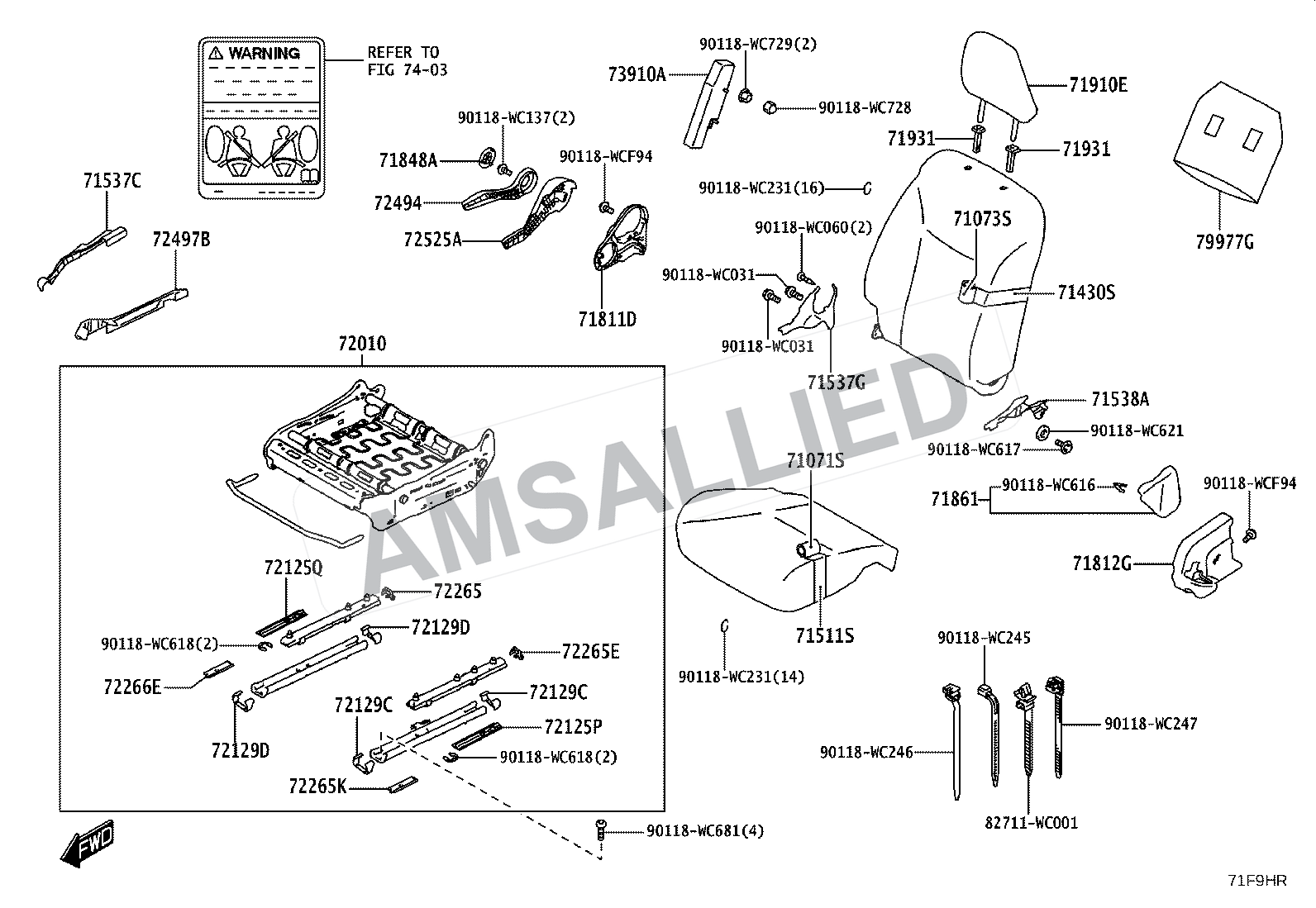

Toyota Taisor Front Seat & Seat Track exploded parts diagram, figure 7101
AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

66 parts
71071-WC034

Cover, Front Seat Cushion, Rh(for Separate Type)

PNC 71071S

71071-WC035

Cover, Front Seat Cushion, Rh(for Separate Type)

PNC 71071S

71073-WC037

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71073-WC038

Cover, Front Seatback, Rh(for Separate Type)

PNC 71073S

71074-WC041

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC042

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71074-WC043

Cover, Front Seatback, Lh(for Separate Type)

PNC 71074S

71420-WC024

Cushion Assy, Front Seat, Lh (for Separate Type)

PNC 71420S

71512-WC005

Pad, Front Seat Cushion, Rh(for Separate Type)

PNC 71511S

71537-WC001

Protector, Front Seat Cushion Edge, Rh

PNC 71537C

71537-WC002

Protector, Front Seat Cushion Edge, Rh

PNC 71537C

71630-WC007

Back Assy, Front Seat, Rh(for Separate Type)

PNC 71430S

71630-WC008

Back Assy, Front Seat, Rh(for Separate Type)

PNC 71430S

71640-WC006

Back Assy, Front Seat, Lh(for Separate Type)

PNC 71440S

71640-WC007

Back Assy, Front Seat, Lh(for Separate Type)

PNC 71440S

71640-WC009

Back Assy, Front Seat, Lh(for Separate Type)

PNC 71440S

71861-WC001

Shield, Front Seat Cushion, Inner Rh

PNC 71861

71862-WC001

Shield, Front Seat Cushion, Inner Lh

PNC 71862

71875-WC001

Protector, Front Seat Cushion Edge, Rh(for Rh Seat)

PNC 71537G

71875-WC002

Protector, Front Seat Cushion Edge, Lh(for Rh Seat)

PNC 71538A

71876-WC001

Cover, Reclining Adjuster Inside, Lh

PNC 71876

71876-WC002

Protector, Front Seat Cushion Edge, Rh(for Lh Seat)

PNC 71537H

71910-WC052

Headrest Assy, Front Seat, Rh

PNC 71910E, 71910F

72125-WC001

Cover, Seat Track Upper Rail, Rh

PNC 72265, 72265E, 72266, 72266C

72125-WC002

Cover, Seat Track, Upper Rear No.2

PNC 72125D, 72125P, 72125Q, 72125R

72129-WC001

Protector, Seat Track Lower Rail, No.1

PNC 72129, 72129A, 72129C, 72129D

72129-WC002

Cover, Seat Track Upper Rail, Front Inner(for Rh Seat)

PNC 72265K, 72265L, 72266E, 72266F

72129-WC007

Protector, Seat Track Lower Rail, No.1

PNC 72129, 72129A, 72129C, 72129D

72498-WC001

Cover, Vertical Adjuster Bracket, Rh

PNC 72497B

72525-WC004

Handle, Reclining Adjuster Release, Rh

PNC 72525A

72526-WC003

Handle, Reclining Adjuster Release, Lh

PNC 72526
