Figure 6709 · Back Door Lock & Handle

13 genuine catalog part numbers · Production from 2024-04

Open interactive figure

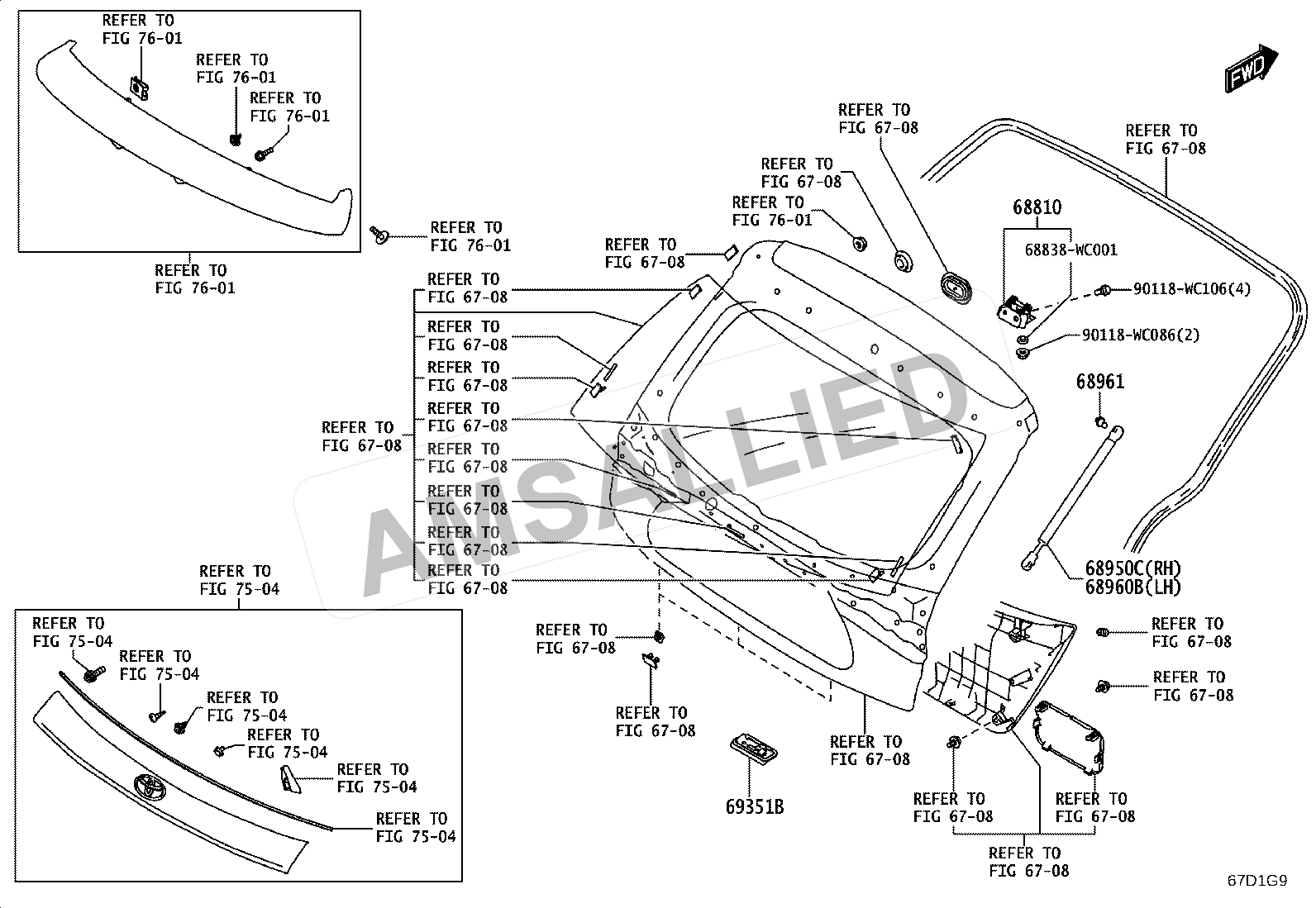

Toyota Taisor Back Door Lock & Handle exploded parts diagram, figure 6709 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

13 parts

Hinge Assy, Back Door, Upper

PNC 68810

Stay Assy, Back Door, Rh

PNC 68950C

Stay Assy, Back Door, Lh

PNC 68960B

Bolt, Back Door Stay

PNC 68961

Holder, Back Door Switch

PNC 69351B

Holder, Back Door Switch

PNC 69351B

Striker Assy, Back Door Lock

PNC 69430C

Lock Assy, Back Door

PNC 69350

Diagram Hardware / Fastener

PNC 68838WC001

Diagram Hardware / Fastener

PNC 90118WC106

Diagram Hardware / Fastener

PNC 90118WC086

Diagram Hardware / Fastener

PNC 90118WC051

Diagram Hardware / Fastener

PNC 90118WC146
