Figure 6708 · Back Door Panel & Glass

17 genuine catalog part numbers · Production from 2024-04

Open interactive figure

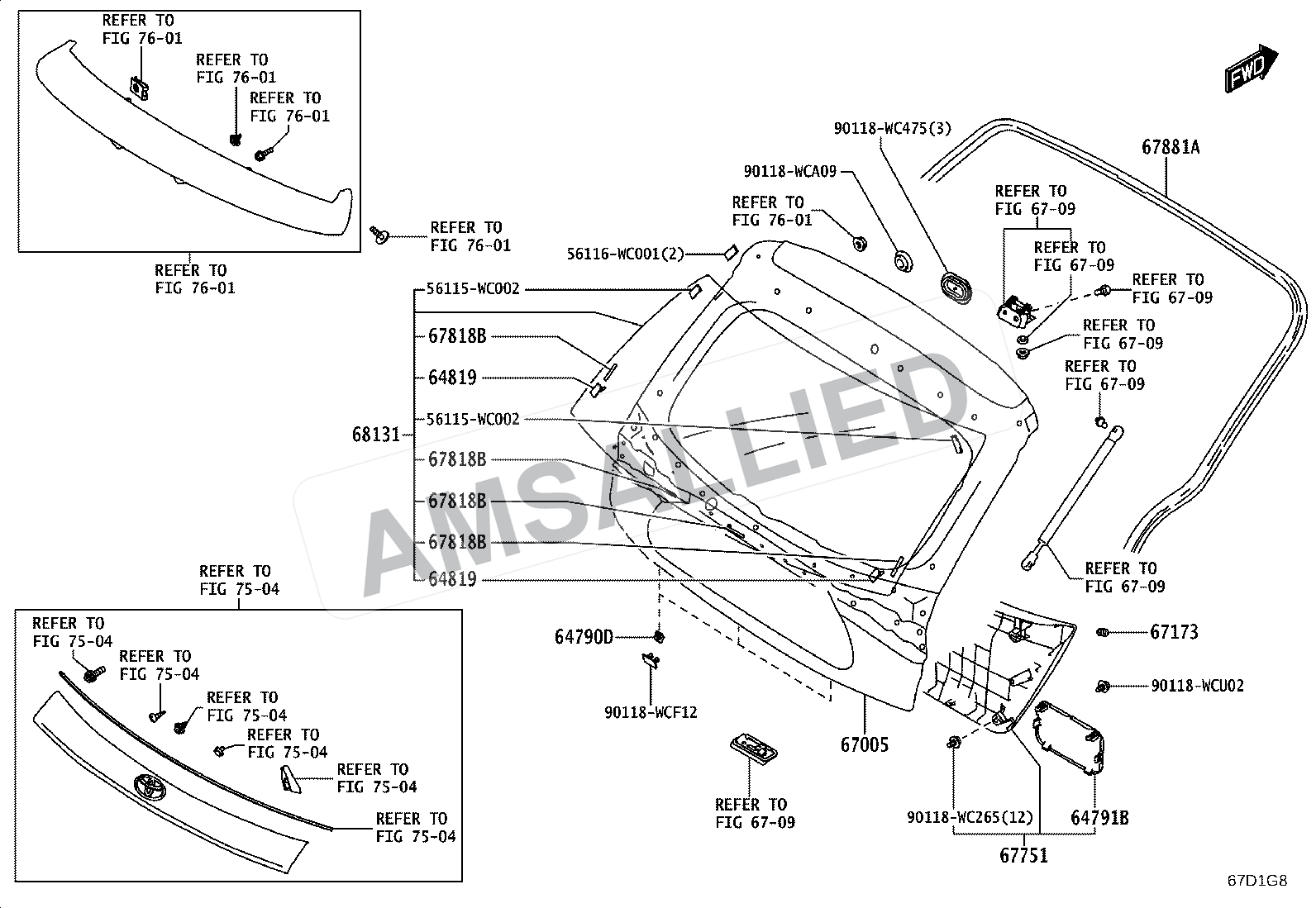

Toyota Taisor Back Door Panel & Glass exploded parts diagram, figure 6708 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

17 parts

56116-WC002

Spacer, Back Window Glass

PNC 67818B

64791-WC001

Cover, Back Door Trim

PNC 64791B

64827-WC001

Spacer, Back Window Glass, No.2

PNC 64819

67005-WC021

Panel Sub-assy, Back Door

PNC 67005

67751-WC010

Board, Back Door Trim

PNC 67751

67881-WC009

Weatherstrip, Back Door

PNC 67881A

68105-WC019

Glass, Back Door

PNC 68131

68105-WC020

Glass, Back Door

PNC 68131

90118-WCF63

Cap, Back Door Trim Panel

PNC 64790D

90118-WCG72

Cushion, Back Door

PNC 67173

56115-WC002

Diagram Hardware / Fastener

PNC 56115WC002

90118-WC265

Diagram Hardware / Fastener

PNC 90118WC265

90118-WC475

Diagram Hardware / Fastener

PNC 90118WC475

56116-WC001

Diagram Hardware / Fastener

PNC 56116WC001

90118-WCU02

Diagram Hardware / Fastener

PNC 90118WCU02

90118-WCA09

Diagram Hardware / Fastener

PNC 90118WCA09

90118-WCF12

Diagram Hardware / Fastener

PNC 90118WCF12
