Panel Sub-assy, Rear Door, Rh
PNC 67003
Body

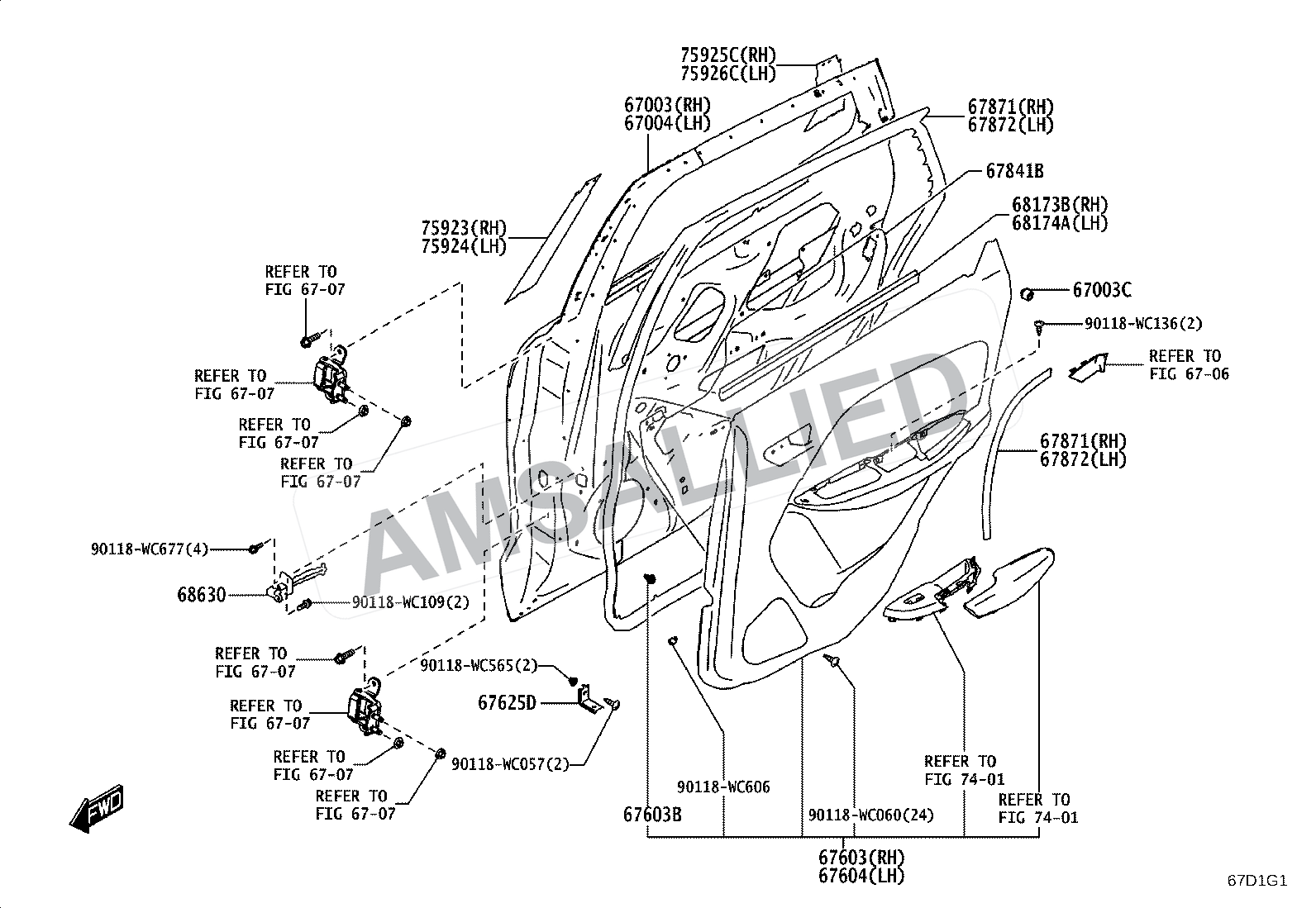

Figure 6705 · Rear Door Panel & Glass
38 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
38 partsPanel Sub-assy, Rear Door, Lh
PNC 67004
Guide Sub-assy, Rear Door Window, Rear Rh
PNC 67407D
Guide Sub-assy, Rear Door Window, Rear Lh
PNC 67408D
Board Sub-assy, Rear Door Trim, Rh
PNC 67603
Board Sub-assy, Rear Door Trim, Rh
PNC 67603
Board Sub-assy, Rear Door Trim, Lh
PNC 67604
Board Sub-assy, Rear Door Trim, Lh
PNC 67604
Cover, Rear Door Service Hole
PNC 67841B
Weatherstrip, Rear Door, Rh
PNC 67871
Weatherstrip, Rear Door, Rh
PNC 67871
Weatherstrip, Rear Door, Lh
PNC 67872
Weatherstrip, Rear Door, Lh
PNC 67872
Glass Sub-assy, Rear Door, Rh
PNC 68103
Glass Sub-assy, Rear Door, Rh
PNC 68103
Glass Sub-assy, Rear Door, Lh
PNC 68104
Glass Sub-assy, Rear Door, Lh
PNC 68104
Run, Rear Door Glass, Rh
PNC 68142C
Run, Rear Door Glass, Lh
PNC 68152C
Weatherstrip, Rear Door Glass, Inner Rh
PNC 68173B
Weatherstrip, Rear Door Glass, Inner Lh
PNC 68174A
Check Assy, Rear Door
PNC 68630
Tape, Black Out, No.2 Rh
PNC 75923
Tape, Black Out, No.2 Lh
PNC 75924
Tape, Black Out, No.3 Rh
PNC 75925C
Tape, Black Out, No.3 Lh
PNC 75926C
Clip(for Rear Door Trim Board)
PNC 67603B
Cushion, Rear Door Panel
PNC 67003C
Bracket, Rear Door Trim
PNC 67625D
Diagram Hardware / Fastener
PNC 90118WC060
Diagram Hardware / Fastener
PNC 90118WC606
Diagram Hardware / Fastener
PNC 90118WC136
Diagram Hardware / Fastener
PNC 90118WC109
Diagram Hardware / Fastener
PNC 90118WC677
Diagram Hardware / Fastener
PNC 90118WC565
Diagram Hardware / Fastener
PNC 90118WC057
Diagram Hardware / Fastener
PNC 90118WC050
Diagram Hardware / Fastener
PNC 90118WC129
