Body

Figure 6703 · Front Door Lock & Handle

26 genuine catalog part numbers · Production from 2024-04

Open interactive figure

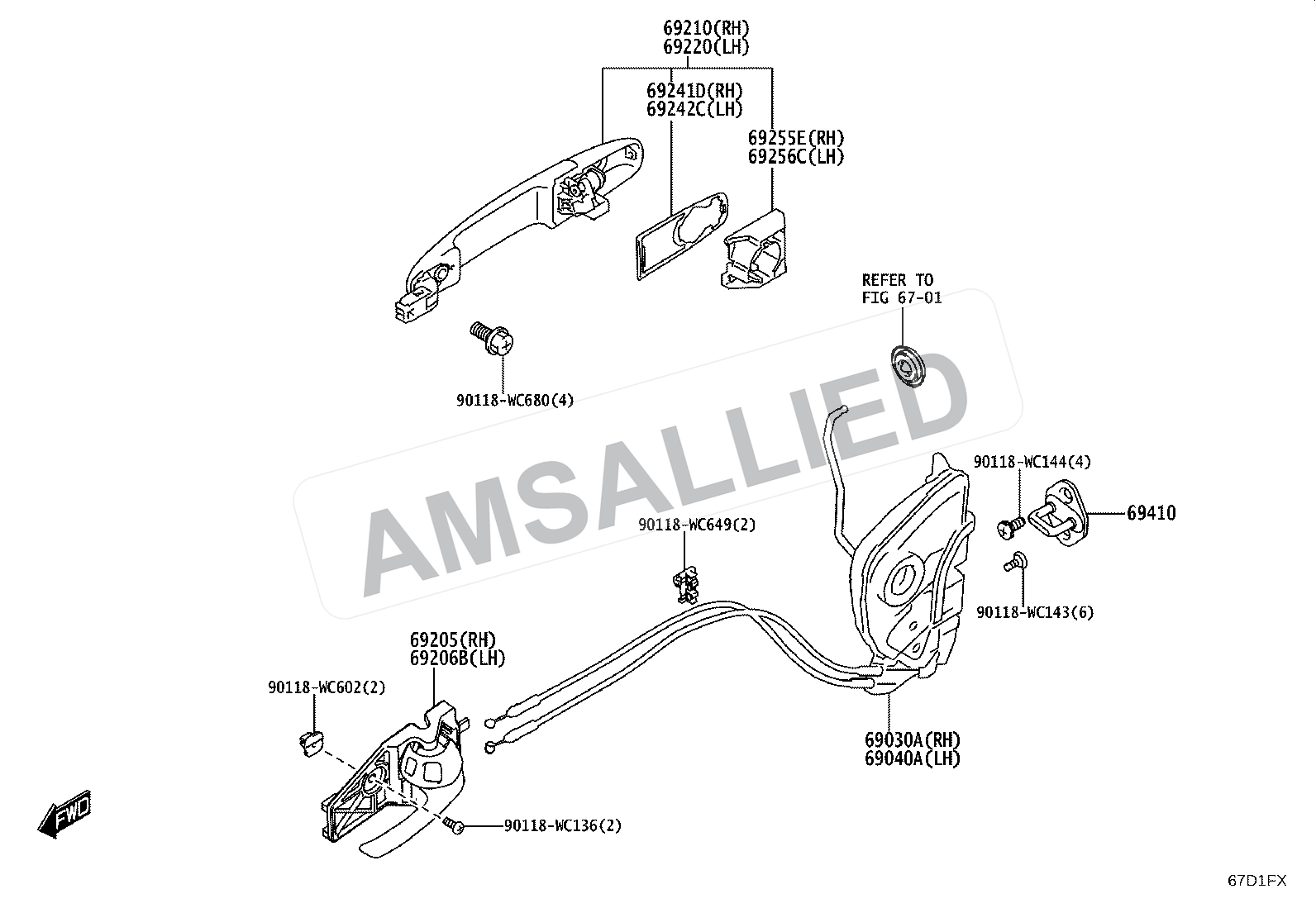

Toyota Taisor Front Door Lock & Handle exploded parts diagram, figure 6703
AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

26 parts
69205-WC001

Handle Sub-assy, Front Door Inside, Rh

PNC 69205

69205-WC002

Handle Sub-assy, Front Door Inside, Rh

PNC 69205

69206-WC001

Handle Sub-assy, Front Door Inside, Lh

PNC 69206B

69206-WC002

Handle Sub-assy, Front Door Inside, Lh

PNC 69206B

69210-WC038

Handle Assy, Front Door, Outside Rh

PNC 69210

69210-WC055

Handle Assy, Front Door, Outside Rh

PNC 69210

69210-WC124

Handle Assy, Front Door, Outside Rh

PNC 69210

69220-WC041

Handle Assy, Front Door Outside, Lh

PNC 69220

69220-WC042

Handle Assy, Front Door Outside, Lh

PNC 69220

69220-WC095

Handle Assy, Front Door Outside, Lh

PNC 69220

69242-WC001

Pad, Front Door Outside Handle, Rh

PNC 69241D, 69242C

69255-WC011

Protector, Door Outside Handle, Rh

PNC 69255E

69256-WC002

Protector, Door Outside Handle, Lh

PNC 69256C

69283-WC001

Bezel, Front Door Inside Handle, Rh

PNC 69277B

69410-WC001

Plate Assy, Front Door Lock Striker

PNC 69410

90118-WC607

Bezel, Front Door Inside Handle, Lh

PNC 69278B
