Hook, Floor Carpet
PNC 58521K
Body

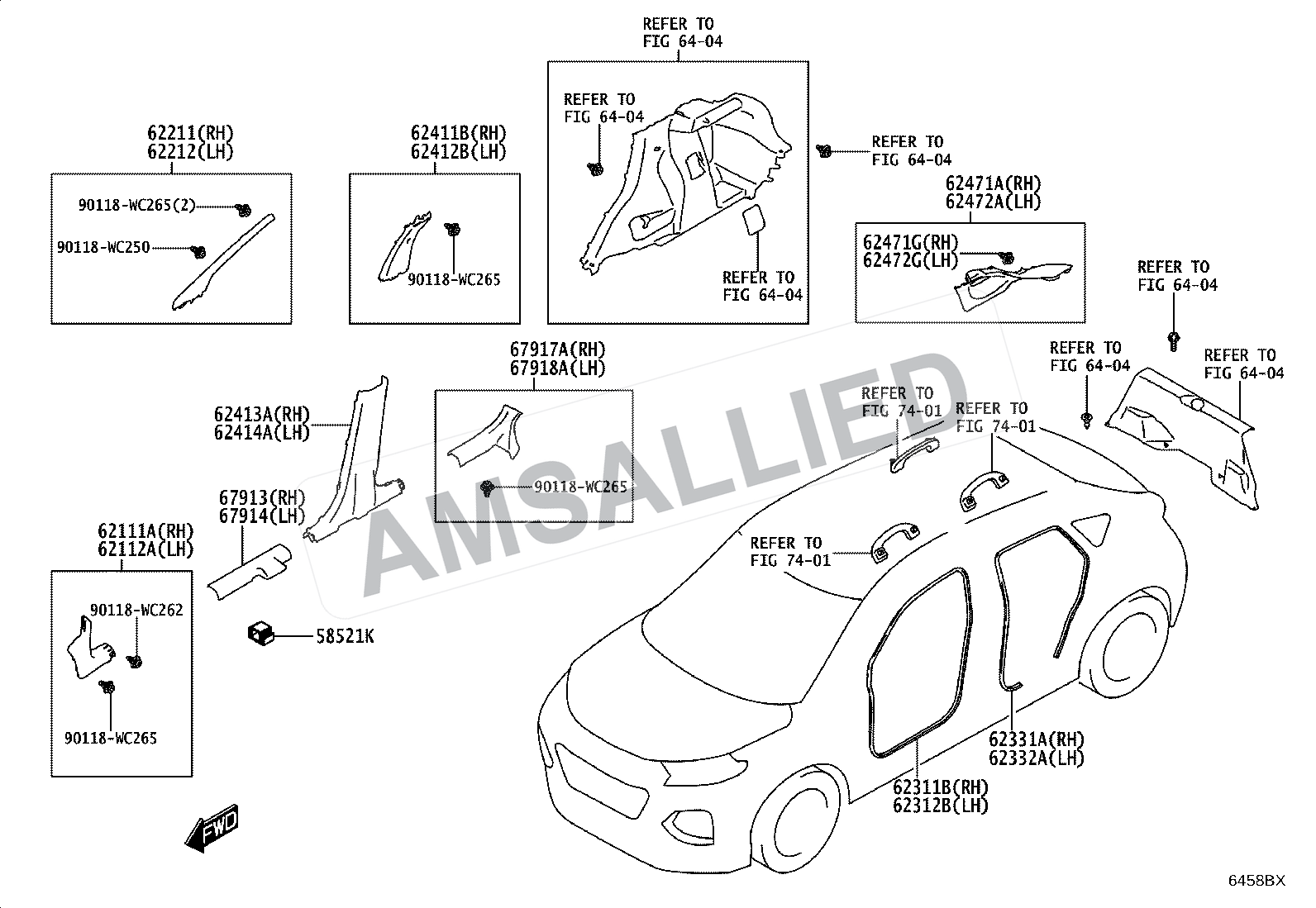

Figure 6401 · Inside Trim Board & Door Opening Trim Moulding
30 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
30 partsTrim Sub-assy, Cowl Side, Rh
PNC 62111A
Trim Sub-assy, Cowl Side, Lh
PNC 62112A
Airbag Assy, Curtain Shield, Rh
PNC 62170A
Airbag Assy, Curtain Shield, Lh
PNC 62180A
Garnish, Front Pillar, Rh
PNC 62211
Garnish, Front Pillar, Rh
PNC 62211
Garnish, Front Pillar, Lh
PNC 62212
Garnish, Front Pillar, Lh
PNC 62212
Weatherstrip, Front Door Opening Trim, Rh
PNC 62311B, 62312B
Weatherstrip, Rear Door Opening Trim, Rh
PNC 62331A, 62332A
Garnish, Center Pillar, Upper Rh
PNC 62411B
Garnish, Center Pillar, Upper Rh
PNC 62411B
Garnish, Center Pillar, Upper Lh
PNC 62412B
Garnish, Center Pillar, Upper Lh
PNC 62412B
Garnish, Center Pillar, Lower Rh
PNC 62413A
Garnish, Center Pillar, Lower Lh
PNC 62414A
Garnish, Roof Side, Inner Rh
PNC 62471A
Garnish, Roof Side, Inner Lh
PNC 62472A
Garnish, Quarter Pillar, Rh
PNC 62638A
Garnish, Quarter Pillar, Lh
PNC 62639A
Plate, Front Door Scuff, Rh
PNC 67913
Plate, Front Door Scuff, Lh
PNC 67914
Plate, Rear Door Scuff, Rh
PNC 67917A
Plate, Rear Door Scuff, Lh
PNC 67918A
Clip, Roof Side Inner Garnish
PNC 62471G, 62472G
Diagram Hardware / Fastener
PNC 90118WC250
Diagram Hardware / Fastener
PNC 90118WC262
Diagram Hardware / Fastener
PNC 90467C0024
Diagram Hardware / Fastener
PNC 9046718017
