Bracket, Front Fender, Rear Rh
PNC 53821B
Body

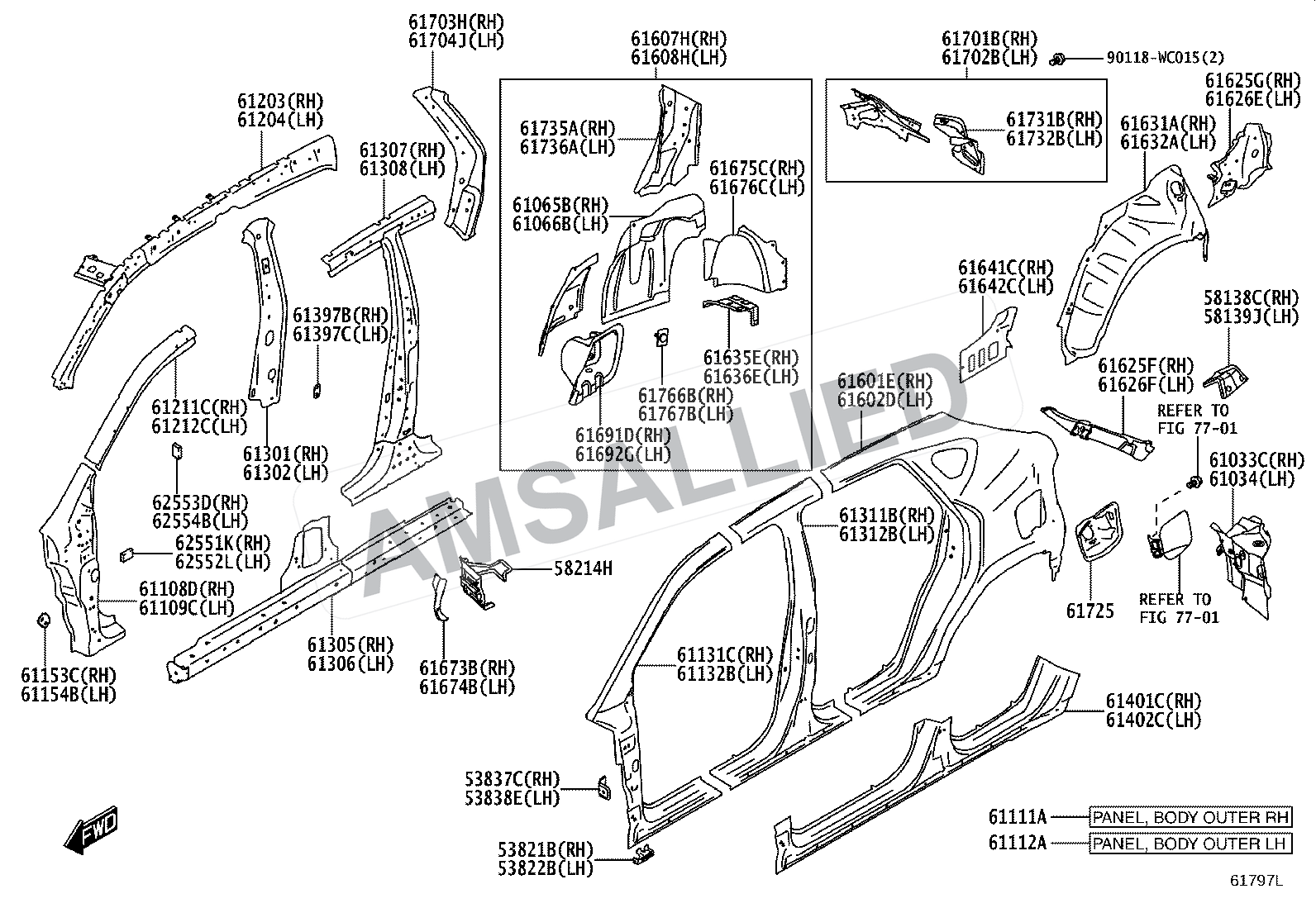

Figure 6101 · Side Member
67 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
67 partsBracket, Front Fender, Rear Lh
PNC 53822B
Bracket, Front Side Panel, No.2 Rh
PNC 53837C, 53838E
Bracket, Fender Liner, Rh
PNC 58138C, 58139J
Bracket, Jack Support
PNC 58214H
Reinforce Sub-assy, Back Door Opening Side, Rh
PNC 61033C
Reinforce Sub-assy, Back Door Opening Side, Lh
PNC 61034
Support Sub-assy, Rear Suspension Spring, Rh
PNC 61065B
Support Sub-assy, Rear Suspension Spring, Lh
PNC 61066B
Reinforcement Sub-assy, Front Pillar, Lower Rh
PNC 61108D
Reinforcement Sub-assy, Front Pillar, Lower Lh
PNC 61109C
Panel, Front Side, Outer Rh
PNC 61111A
Panel, Front Side, Outer Lh
PNC 61112A
Pillar, Front Body, Outer Rh
PNC 61131C
Pillar, Front Body, Outer Lh
PNC 61132B
Retainer, Front Body Pillar Lower Hinge, Rh
PNC 61153C, 61154B
Rail Sub-assy, Roof Side, Inner Rh
PNC 61203
Rail Sub-assy, Roof Side, Inner Lh
PNC 61204
Rail, Roof Side, Rh
PNC 61211C
Rail, Roof Side, Lh
PNC 61212C
Pillar Sub-assy, Center Body, Rh
PNC 61301
Pillar Sub-assy, Center Body, Lh
PNC 61302
Reinforce Sub-assy, Center Body Pillar, Lower Rh
PNC 61305
Reinforce Sub-assy, Center Body Pillar, Lower Lh
PNC 61306
Pillar Sub-assy, Center Body, Inner Rh
PNC 61307
Pillar Sub-assy, Center Body, Inner Lh
PNC 61308
Pillar, Center Body, Outer Rh
PNC 61311B
Pillar, Center Body, Outer Lh
PNC 61312B
Retainer, Center Body Pillar
PNC 61397B, 61397C
Panel Sub-assy, Rocker, Outer Rh
PNC 61401C
Panel Sub-assy, Rocker, Outer Lh
PNC 61402C
Panel Sub-assy, Quarter, Outer Rh
PNC 61601E
Panel Sub-assy, Quarter, Outer Lh
PNC 61602D
Panel Sub-assy, Quarter Wheel House, Inner Rh
PNC 61607H
Panel Sub-assy, Quarter Wheel House, Inner Lh
PNC 61608H
Extension, Quarter Panel, Rear Rh
PNC 61625G
Extension, Quarter Panel, Upper Rh
PNC 61625F
Extension, Quarter Panel, Inner Rear Lh
PNC 61626E
Extension, Quarter Panel, Upper Lh
PNC 61626F
Panel, Quarter Wheel House, Outer Rh
PNC 61631A
Panel, Quarter Wheel House, Outer Lh
PNC 61632A
Extension, Quarter Wheel House, Rh
PNC 61635E
Extension, Quarter Wheel House, Lh
PNC 61636E
Gusset, Quarter Wheel House, Front Rh
PNC 61641C
Gusset, Quarter Wheel House, Front Lh
PNC 61642C
Reinforcement, Quarter Wheel House, Inner Rh
PNC 61673B
Reinforcement, Quarter Wheel House, Inner Rear Rh
PNC 61675C
Reinforcement, Quarter Wheel House, Inner Lh
PNC 61674B
Reinforcement, Quarter Wheel House, Inner Rear Lh
PNC 61676C
Reinforce, Rear Seat Back Lock Striker, Rh
PNC 61691D
Reinforce, Rear Seatback Lock Striker, Lh
PNC 61692G
Panel Sub-assy, Roof Side, Inner Upper Rh
PNC 61701B
Panel Sub-assy, Roof Side, Inner Upper Lh
PNC 61702B
Reinforcement Sub-assy, Roof Side, Inner Rh
PNC 61703H
Reinforcement Sub-assy, Roof Side, Inner Lh
PNC 61704J
Box, Fuel Inlet
PNC 61725
Box, Fuel Inlet
PNC 61725
Panel, Roof Side, Inner Rh
PNC 61731B
Panel, Roof Side, Inner Lh
PNC 61732B
Panel, Roof Side, Inner Rear Rh
PNC 61735A
Panel, Roof Side, Inner Rear Lh
PNC 61736A
Reinforcement, Belt Anchor To Roof Side, Inner Rh
PNC 61766B, 61767B
Liner, Rear Wheel House, Rh
PNC 65637
Liner, Rear Wheel House, Lh
PNC 65638
Pad, Pillar, No.1 Rh
PNC 62551K, 62552L, 62553D, 62554B
Clip, Rear Wheel House Liner
PNC 65637C, 65638C
Diagram Hardware / Fastener
PNC 90118WC015
