Ornament, Console Box
PNC 58835C
Body

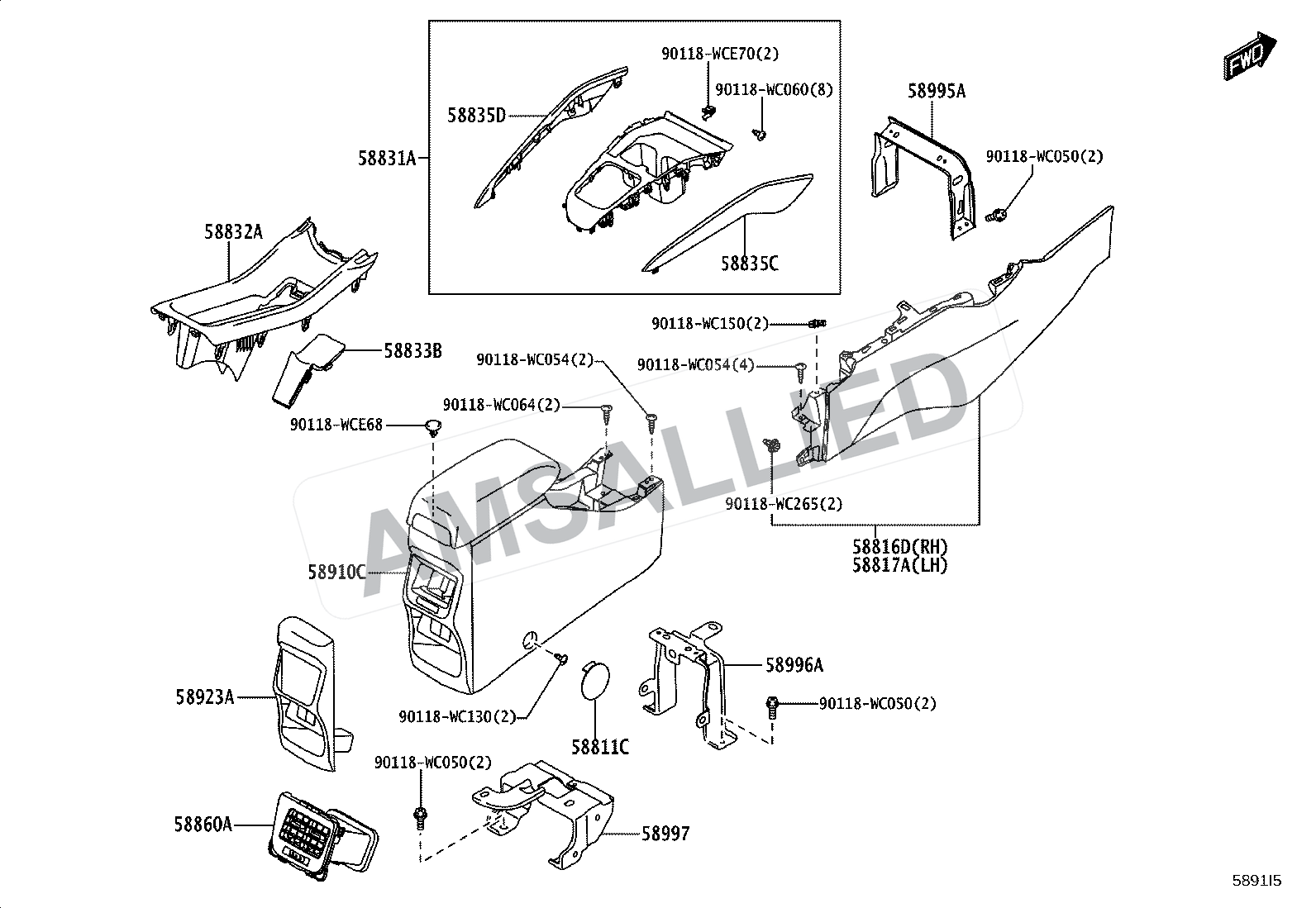

Figure 5806 · Console Box & Bracket
32 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
32 partsOrnament, Console Box
PNC 58835C
Ornament, Console Box, No.2
PNC 58835D
Ornament, Console Box, No.2
PNC 58835D
Register Assy, Console Box
PNC 58860A
Garnish, Console Upper Panel, Rear
PNC 58832A
Panel, Console Rear End
PNC 58923A
Garnish, Console Upper Panel, Front
PNC 58831A
Insert, Console Box, Front No.1
PNC 58816D
Garnish, Console Upper Panel, Front
PNC 58831A
Insert, Console Box, Front No.2
PNC 58817A
Bracket, Console Box Mounting, No.3
PNC 58997
Bracket, Console Box Mounting, No.3
PNC 58997
Garnish, Console Upper Panel, No.1
PNC 58833B
Box Assy, Console, Rear
PNC 58910C
Box Assy, Console, Rear
PNC 58910C
Panel, Console Rear End
PNC 58923A
Garnish, Console Upper Panel, Rear
PNC 58832A
Bracket, Console Box Mounting, No.2
PNC 58996A
Bracket, Console Box Mounting, No.1
PNC 58995A
Bracket, Console Box Mounting, No.1
PNC 58995A
Bracket, Console Box Mounting, No.2
PNC 58996A
Cap(for Console)
PNC 58811C
Diagram Hardware / Fastener
PNC 90118WC265
Diagram Hardware / Fastener
PNC 90118WCE70
Diagram Hardware / Fastener
PNC 90118WC060
Diagram Hardware / Fastener
PNC 90118WC130
Diagram Hardware / Fastener
PNC 90118WCE68
Diagram Hardware / Fastener
PNC 90118WC150
Diagram Hardware / Fastener
PNC 90118WC054
Diagram Hardware / Fastener
PNC 90118WC064
Diagram Hardware / Fastener
PNC 90118WC050
