Figure 5801 · Floor Pan & Lower Back Panel

45 genuine catalog part numbers · Production from 2024-04

Open interactive figure

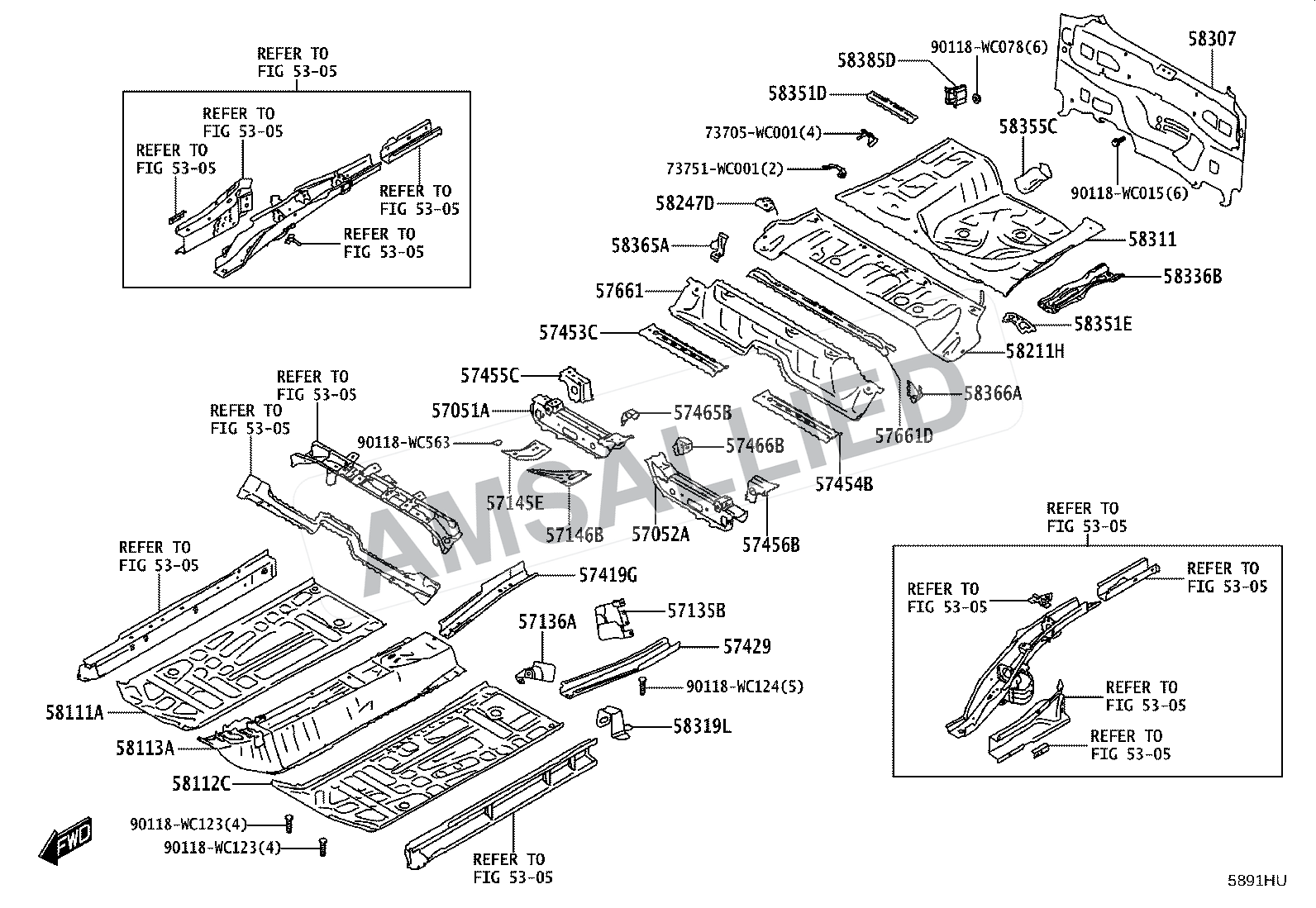

Toyota Taisor Floor Pan & Lower Back Panel exploded parts diagram, figure 5801
AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

45 parts
57051-WC010

Member Sub-assy, Front Floor Cross, Rh

PNC 57051A

57052-WC011

Member Sub-assy, Front Floor Cross, Lh

PNC 57052A

57053-WC001

Reinforcement Sub-assy, Front Floor Crossmember, Rh

PNC 57053

57054-WC001

Reinforcement Sub-assy, Front Floor Crossmember, Lh

PNC 57054A

57145-WC001

Reinforcement, Front Side Member, Rear Rh

PNC 57145E

57181-WC001

Reinforcement, Front Side Member, Rear Lh

PNC 57146B

57419-WC008

Reinforcement, Front Floor Under, Rear Rh

PNC 57419G

57429-WC005

Reinforcement, Front Floor Under, Rear Lh

PNC 57429

57453-WC006

Member, Front Floor Cross Side, Rh

PNC 57453C, 57454B

57455-WC001

Bracket, Front Seat Mounting, Outside Rh

PNC 57455C

57456-WC001

Bracket, Front Seat Mounting, Outside Lh

PNC 57456B

58247-WC001

Bracket, Rear Seat Hinge, Outer Rh

PNC 58247D
