Panel Sub-assy, Instrument, Upper
PNC 55302A
Body

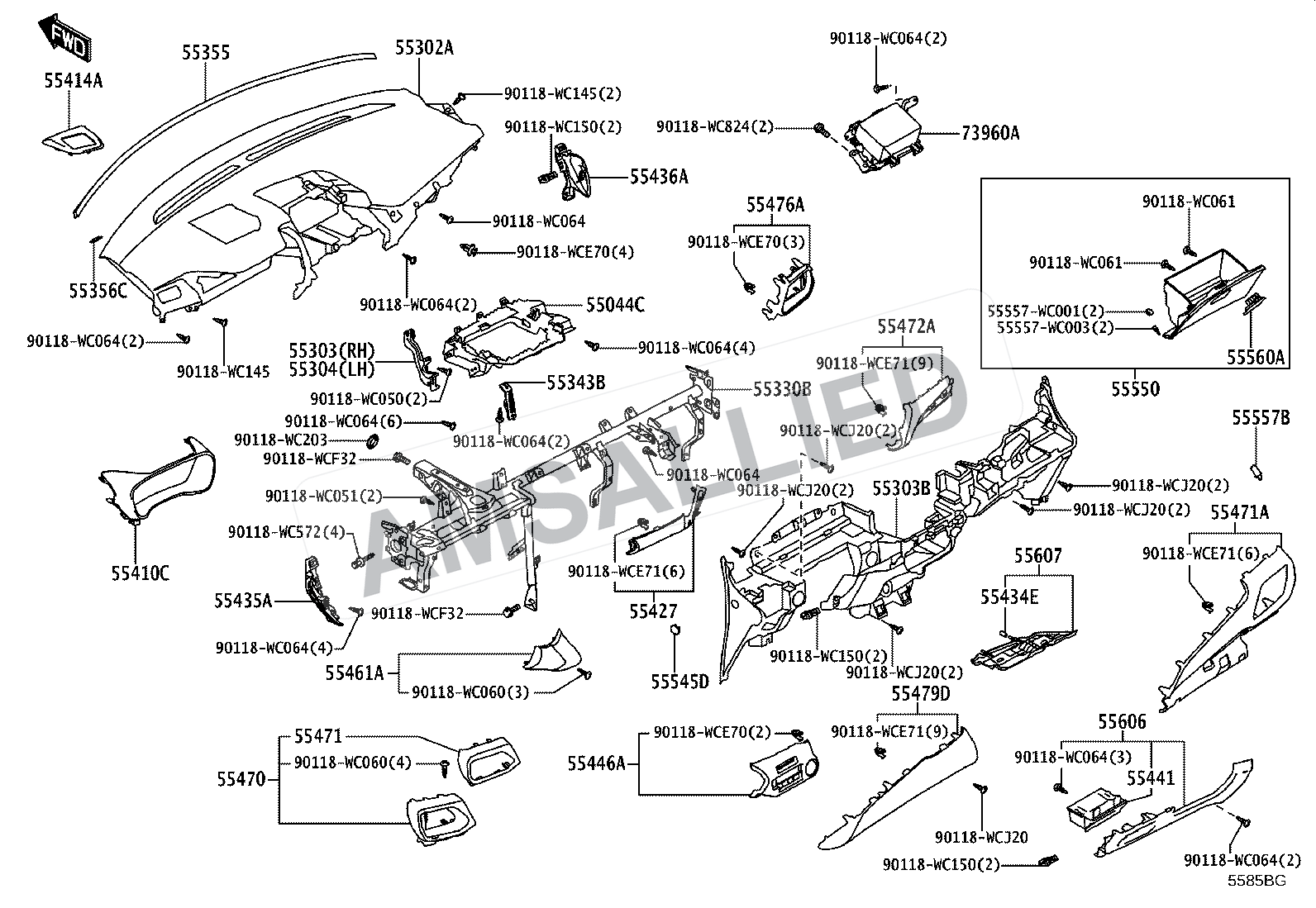

Figure 5501 · Instrument Panel & Glove Compartment
72 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
72 partsPanel Sub-assy, Instrument, Upper
PNC 55302A
Panel Sub-assy, Instrument, Lower
PNC 55303B
Reinforcement Assy, Instrument Panel
PNC 55330B
Reinforcement Assy, Instrument Panel
PNC 55330B
Brace, Instrument Panel To Cowl, Center
PNC 55343B
Stay Sub-assy, Instrument Panel, Rh
PNC 55303
Stay Sub-assy, Instrument Panel, Lh
PNC 55304
Cushion, Instrument Panel, No.1
PNC 55355
Cushion, Instrument Panel, No.2
PNC 55356C
Panel Sub-assy, Instrument Cluster Finish, Center
PNC 55405B
Panel Sub-assy, Instrument Cluster Finish, Center
PNC 55405B
Panel Assy, Instrument Cluster Finish
PNC 55410C
Panel Assy, Instrument Cluster Finish, Center
PNC 55420A
Panel Assy, Instrument Cluster Finish, Center
PNC 55420A
Panel, Instrument Cluster Finish, End
PNC 55414A
Panel, Instrument Panel Finish, End Rh
PNC 55435A
Panel, Instrument Panel Finish, End Lh
PNC 55436A
Box, Instrument Panel
PNC 55441
Base, Switch Hole, No.1
PNC 55446A
Base, Switch Hole, No.1
PNC 55446A
Garnish Assy, Instrument Cluster Finish Panel
PNC 55470
Garnish Assy, Instrument Cluster Finish Panel
PNC 55470
Moulding, Instrument Cluster, No.1
PNC 55471
Ornament, Instrument Cluster Finish Panel
PNC 55471A
Moulding, Instrument Cluster, No.2
PNC 55472A
Ornament, Instrument Panel, Center
PNC 55427
Ornament, Instrument Panel, Center
PNC 55427
Ornament, Instrument Panel
PNC 55461A
Garnish, Instrument Cluster Finish Panel, Center
PNC 55475B
Garnish, Instrument Cluster Finish Panel, Center
PNC 55475B
Garnish, Instrument Cluster Finish Panel, No.3
PNC 55476A
Garnish, Instrument Cluster Finish Panel, No.3
PNC 55476A
Garnish, Instrument Cluster Finish Panel, Lower
PNC 55479D
Cover, Stereo Opening, No.2
PNC 55521F
Cover, Stereo Opening
PNC 55521C
Cover, Spare Switch Hole
PNC 55539
Cover, Instorument Panel Hole, No.1
PNC 55545D
Door Assy, Glove Compartment
PNC 55550
Cushion(for Glove Compartment Door)
PNC 55510A
Cushion, Glove Compartment Door Check
PNC 55557A
Stopper, Glove Compertment Door Check
PNC 55557B
Lock Assy, Glove Compartment Door
PNC 55560A
Cover Sub-assy, Instrument Panel Under, No.1
PNC 55606
Cover Sub-assy, Instrument Panel Under, No.2
PNC 55607
Register Assy, Instrument Panel, No.1
PNC 55650
Register Assy, Instrument Panel, No.1
PNC 55650
Register Assy, Instrument Panel, No.2
PNC 55660
Register Assy, Instrument Panel, No.2
PNC 55660
Register Assy, Instrument Panel, No.3
PNC 55670
Register Assy, Instrument Panel, No.3
PNC 55670
Register Assy, Instrument Panel, No.4
PNC 55680A
Register Assy, Instrument Panel, No.4
PNC 55680A
Airbag Assy, Instrument Panel Passenger W/o Door
PNC 73960A
Cover, Cigarette Lighter Hole
PNC 55476
Cap, Instrument Panel Safety Pad
PNC 55458A
Cap
PNC 55434E
Panel Sub-assy, Instrument Panel Finish
PNC 55044C
Diagram Hardware / Fastener
PNC 90118WC572
Diagram Hardware / Fastener
PNC 90118WCF32
Diagram Hardware / Fastener
PNC 90118WC064
Diagram Hardware / Fastener
PNC 90118WCJ20
Diagram Hardware / Fastener
PNC 90118WC145
Diagram Hardware / Fastener
PNC 90118WC150
Diagram Hardware / Fastener
PNC 90118WCE70
Diagram Hardware / Fastener
PNC 90118WC050
Diagram Hardware / Fastener
PNC 90118WC051
Diagram Hardware / Fastener
PNC 90118WC061
Diagram Hardware / Fastener
PNC 90118WC060
Diagram Hardware / Fastener
PNC 90118WCE71
Diagram Hardware / Fastener
PNC 90118WC824
Diagram Hardware / Fastener
PNC 90118WCE77
