Plate, Radiator Side Air Guide, Front Rh
PNC 16691A
Body

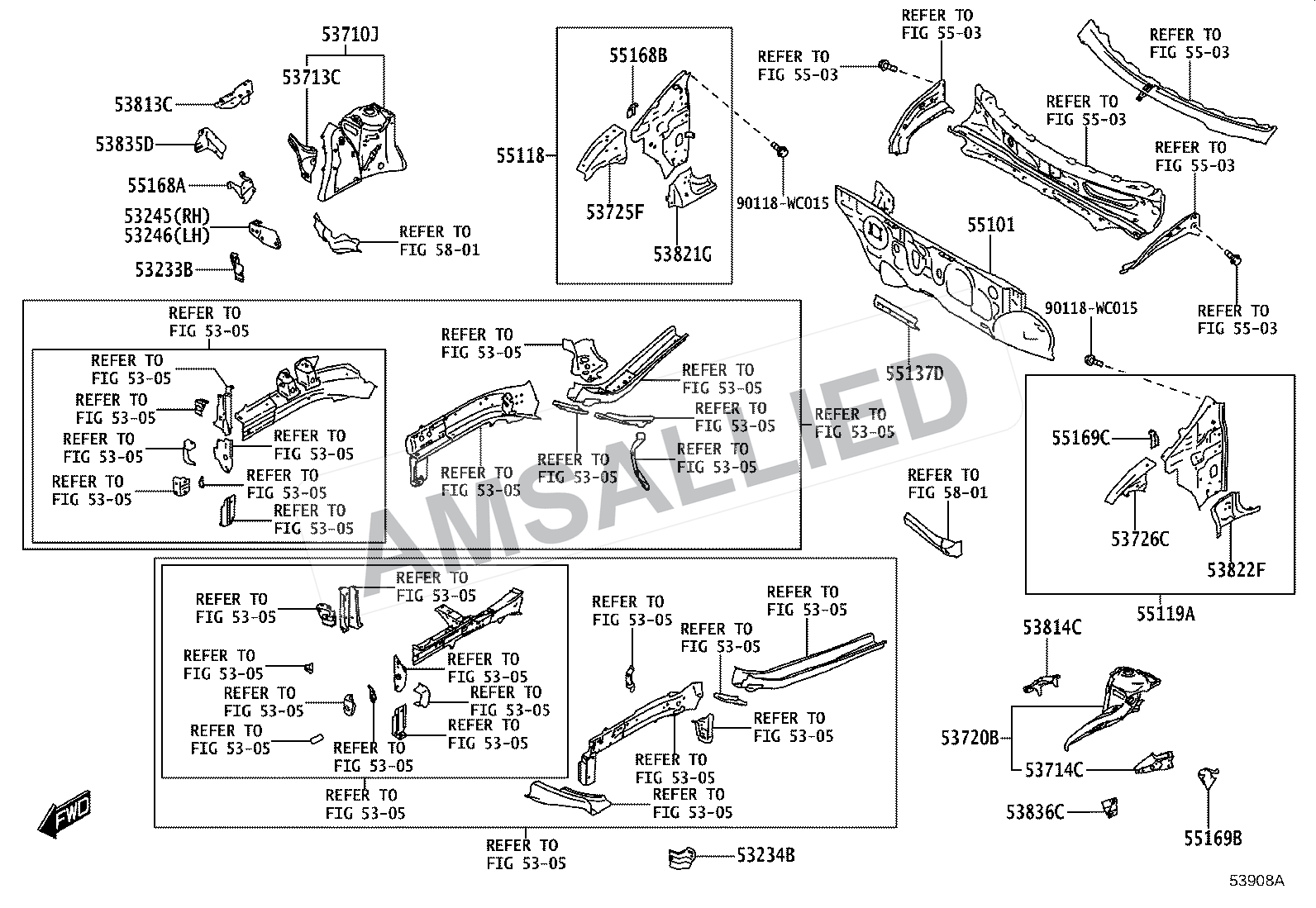

Figure 5304 · Front Fender Apron & Dash Panel
45 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
45 partsPlate, Radiator Upper Air Guide
PNC 16681A
Plate, Radiator Upper Air Guide
PNC 16681A
Plate, Radiator Lower Air Guide
PNC 16683A
Plate, Radiator Lower Air Guide
PNC 16683A
Support Sub-assy, Radiator, Lower
PNC 53028
Support Sub-assy, Radiator, Upper
PNC 53205
Bracket, Headlamp, Inner Rh
PNC 53233B
Bracket, Headlamp, Inner Lh
PNC 53234B
Bracket, Headlamp, Rh
PNC 53245
Bracket, Headlamp, Lh
PNC 53246
Apron Assy, Front Fender, Rh
PNC 53710J
Apron Assy, Front Fender, Rh
PNC 53710J
Extension, Front Fender Apron, Front Rh
PNC 53713C
Extension, Front Fender Apron, Front Lh
PNC 53714C
Apron Assy, Front Fender, Lh
PNC 53720B
Apron, Front Fender No.2 Side, Rh
PNC 53725F
Apron, Front Fender No.2 Side, Lh
PNC 53726C
Extension, Front Fender, Rh
PNC 53813C
Extension, Front Fender, Lh
PNC 53814C
Bracket, Front Fender, Rear Rh
PNC 53821G
Bracket, Front Fender, Rear Lh
PNC 53822F
Bracket, Front Side Panel, Rh
PNC 53835D
Bracket, Front Side Panel, Lh
PNC 53836C
Panel Sub-assy, Dash
PNC 55101
Panel Sub-assy, Dash
PNC 55101
Panel Sub-assy, Dash
PNC 55101
Extension, Dash Panel, Rh
PNC 55118
Extension, Dash Panel, Lh
PNC 55119A
Reinforcement, Front Panel Member
PNC 55137D
Bracket, Front Fender Mounting, No.2 Rh
PNC 55168B, 55169C
Bracket, Front Fender Mounting, Rh
PNC 55168A
Bracket, Front Fender Mounting, Lh
PNC 55169B
Insulator Assy, Dash Panel
PNC 55210
Insulator Assy, Dash Panel
PNC 55210
Insulator, Dash Panel, Outer
PNC 55223A
Insulator, Dash Panel, Outer
PNC 55223A
Silencer, Front Panel Side, No.1 Rh
PNC 55241
Silencer, Front Panel Side, No.1 Lh
PNC 55242
Clip
PNC 55223C
Cushion, Hood, Center
PNC 53384G
Clip, Front Side Air Guide
PNC 53153F
Cushion, Hood Bumper
PNC 53301G
Diagram Hardware / Fastener
PNC 90118WC015
Diagram Hardware / Fastener
PNC 90118WC022
