Figure 5303 · Hood Lock & Hinge

11 genuine catalog part numbers · Production from 2024-04

Open interactive figure

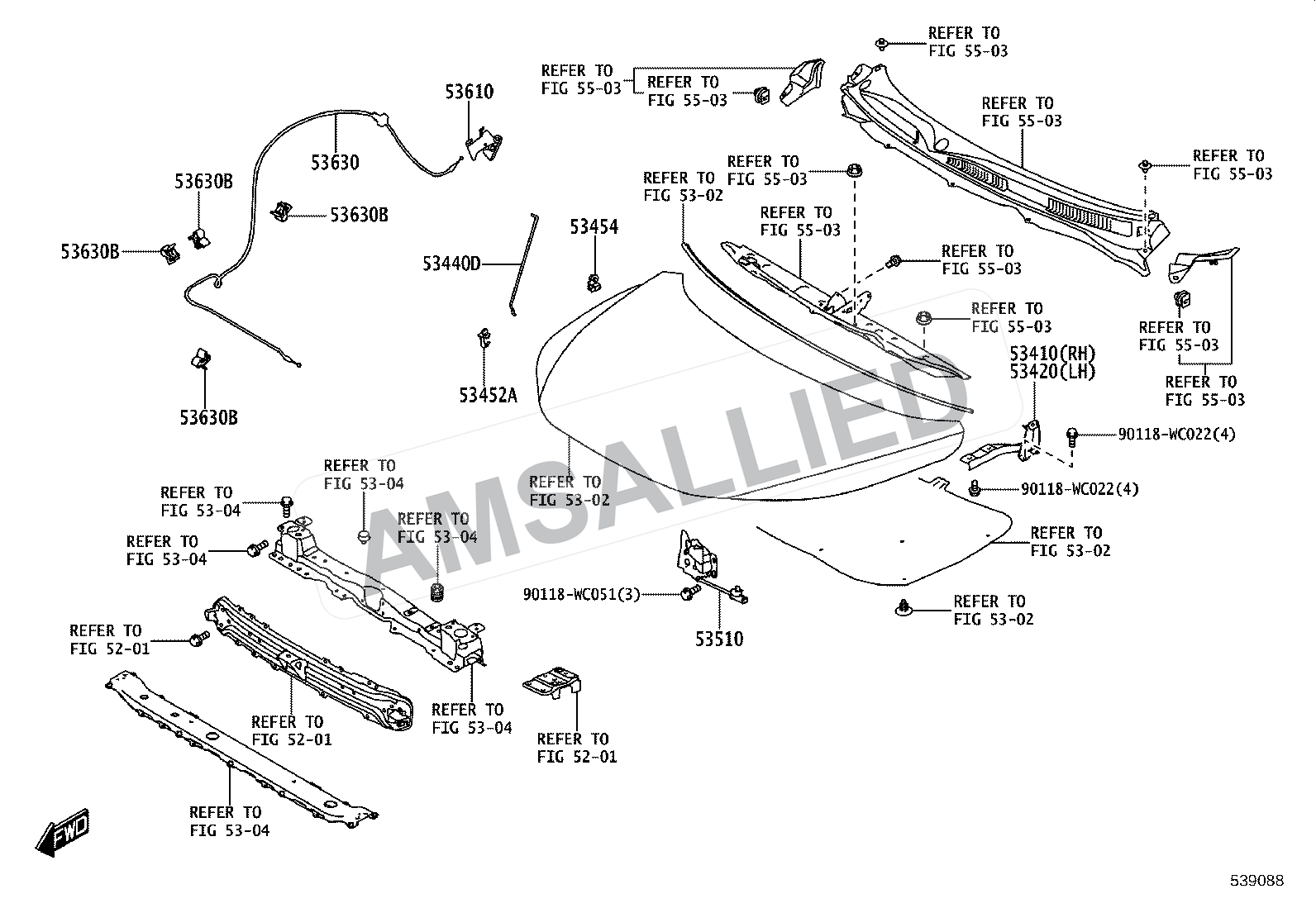

Toyota Taisor Hood Lock & Hinge exploded parts diagram, figure 5303 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

11 parts

Hinge Assy, Hood, Rh

PNC 53410

Hinge Assy, Hood, Lh

PNC 53420

Support Assy, Hood

PNC 53440D

Holder, Hood Stay

PNC 53452A

Clip, Hood Support Rod

PNC 53454

Lever Assy, Hood Lock Release

PNC 53610

Lock Assy, Hood

PNC 53510

Cable Assy, Hood Lock Control

PNC 53630

Clamp(for Hood Lock Control Cable)

PNC 53630B

Diagram Hardware / Fastener

PNC 90118WC022

Diagram Hardware / Fastener

PNC 90118WC051
