Figure 5302 · Hood & Front Fender

20 genuine catalog part numbers · Production from 2024-04

Open interactive figure

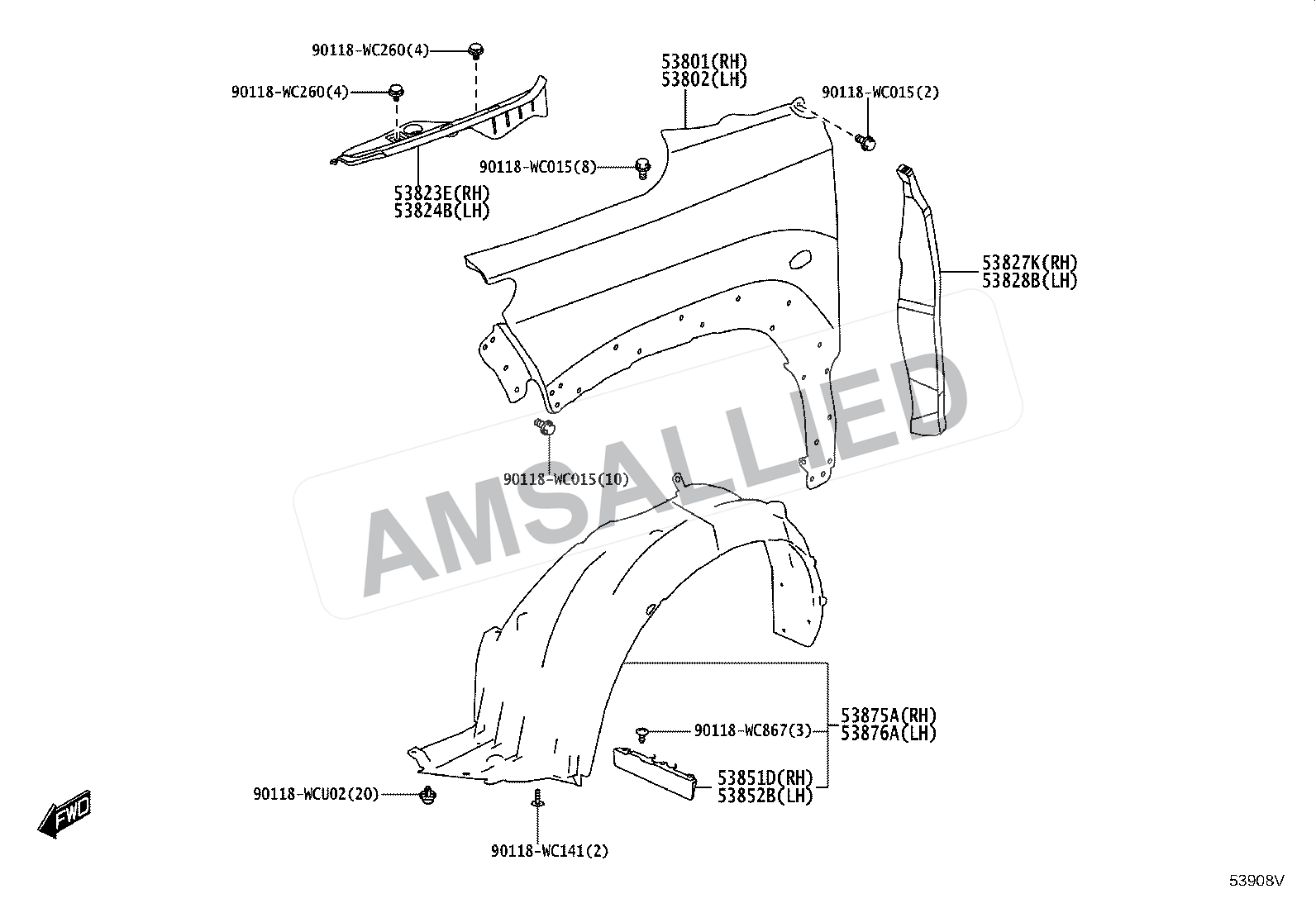

Toyota Taisor Hood & Front Fender exploded parts diagram, figure 5302 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

20 parts

52826-WC004

Protector, Front Side Panel, No.2 Lh

PNC 53824B

53301-WC011

Hood Sub-assy

PNC 53301

53341-WC008

Insulator, Hood

PNC 53341B

53383-WC007

Seal, Hood To Cowl Top

PNC 53383

53811-WC014

Fender Sub-assy, Front Rh

PNC 53801

53811-WC015

Fender Sub-assy, Front Rh

PNC 53801

53812-WC015

Fender Sub-assy, Front Lh

PNC 53802

53812-WC016

Fender Sub-assy, Front Lh

PNC 53802

53825-WC005

Protector, Front Side Panel, No.2 Rh

PNC 53823E

53827-WC005

Protector, Front Fender Side Panel, Rh

PNC 53827K

53828-WC011

Protector, Front Fender Side Panel, Lh

PNC 53828B

53851-WC004

Pad, Front Wheel Opening Extension, Rh

PNC 53851D

53852-WC003

Pad, Front Wheel Opening Extension, Lh

PNC 53852B

53875-WC010

Liner, Front Fender, Rh

PNC 53875A

53876-WC010

Liner, Front Fender, Lh

PNC 53876A

90118-WCU02

Clip(for Hood Insulator)

PNC 53341C

90118-WC260

Diagram Hardware / Fastener

PNC 90118WC260

90118-WC141

Diagram Hardware / Fastener

PNC 90118WC141

90118-WC867

Diagram Hardware / Fastener

PNC 90118WC867

90118-WC015

Diagram Hardware / Fastener

PNC 90118WC015
