Figure 5202 · Rear Bumper & Bumper Stay

13 genuine catalog part numbers · Production from 2024-04

Open interactive figure

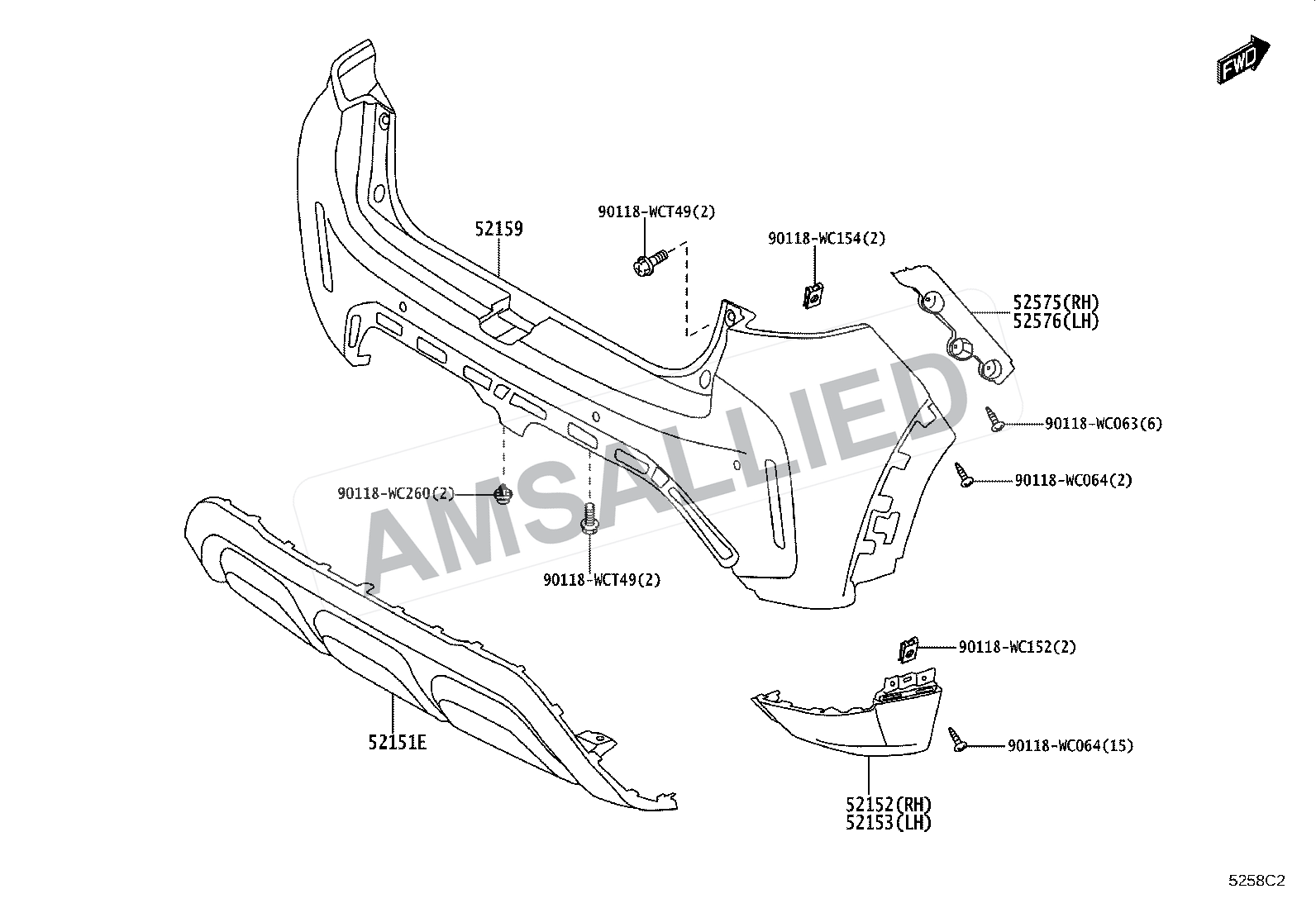

Toyota Taisor Rear Bumper & Bumper Stay exploded parts diagram, figure 5202 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

13 parts

Bar, Rear Bumper

PNC 52151E

Bar, Rear Bumper, Rh

PNC 52152

Bar, Rear Bumper, Lh

PNC 52153

Cover, Rear Bumper

PNC 52159

Retainer, Rear Bumper Side, Rh

PNC 52575

Retainer, Rear Bumper Side, Lh

PNC 52576

Retainer, Ultrasonic Sensor, Rear Corner

PNC 89C48A, 89C48B

Diagram Hardware / Fastener

PNC 90118WC260

Diagram Hardware / Fastener

PNC 90118WCT49

Diagram Hardware / Fastener

PNC 90118WC152

Diagram Hardware / Fastener

PNC 90118WC154

Diagram Hardware / Fastener

PNC 90118WC064

Diagram Hardware / Fastener

PNC 90118WC063
