Body

Figure 5201 · Front Bumper & Bumper Stay

34 genuine catalog part numbers · Production from 2024-04

Open interactive figure

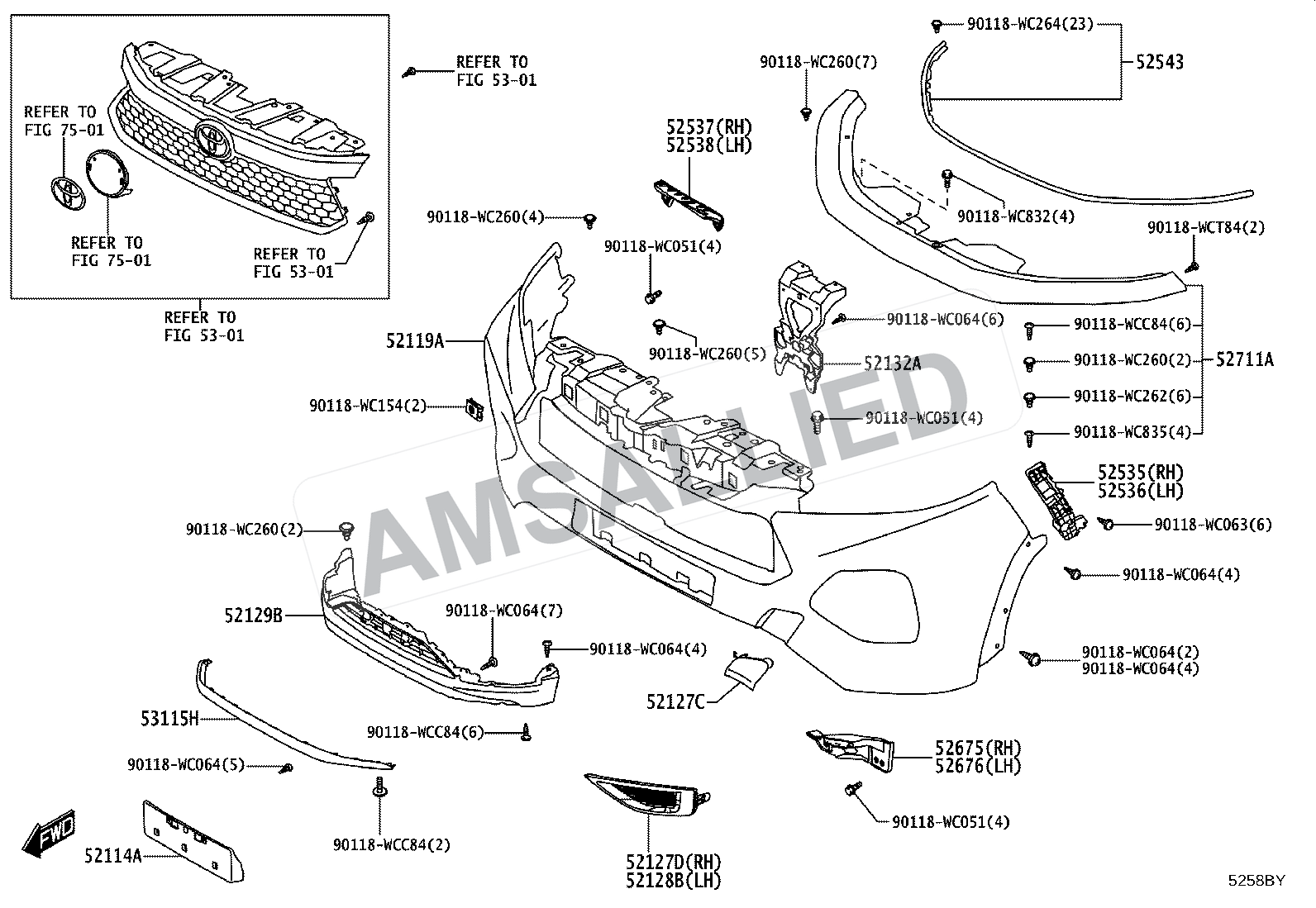

Toyota Taisor Front Bumper & Bumper Stay exploded parts diagram, figure 5201
AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

34 parts
52114-WC003

Bracket, Front Bumper Extension Mounting

PNC 52114A

52601-WC001

Absorber Sub-assy, Front Bumper Energy

PNC 52601

52675-WC001

Support, Front Bumper Lower Side, Rh

PNC 52675

52676-WC001

Support, Front Bumper Lower Side, Lh

PNC 52676
