Figure 5102 · Suspension Crossmember & Under Cover

15 genuine catalog part numbers · Production from 2024-04

Open interactive figure

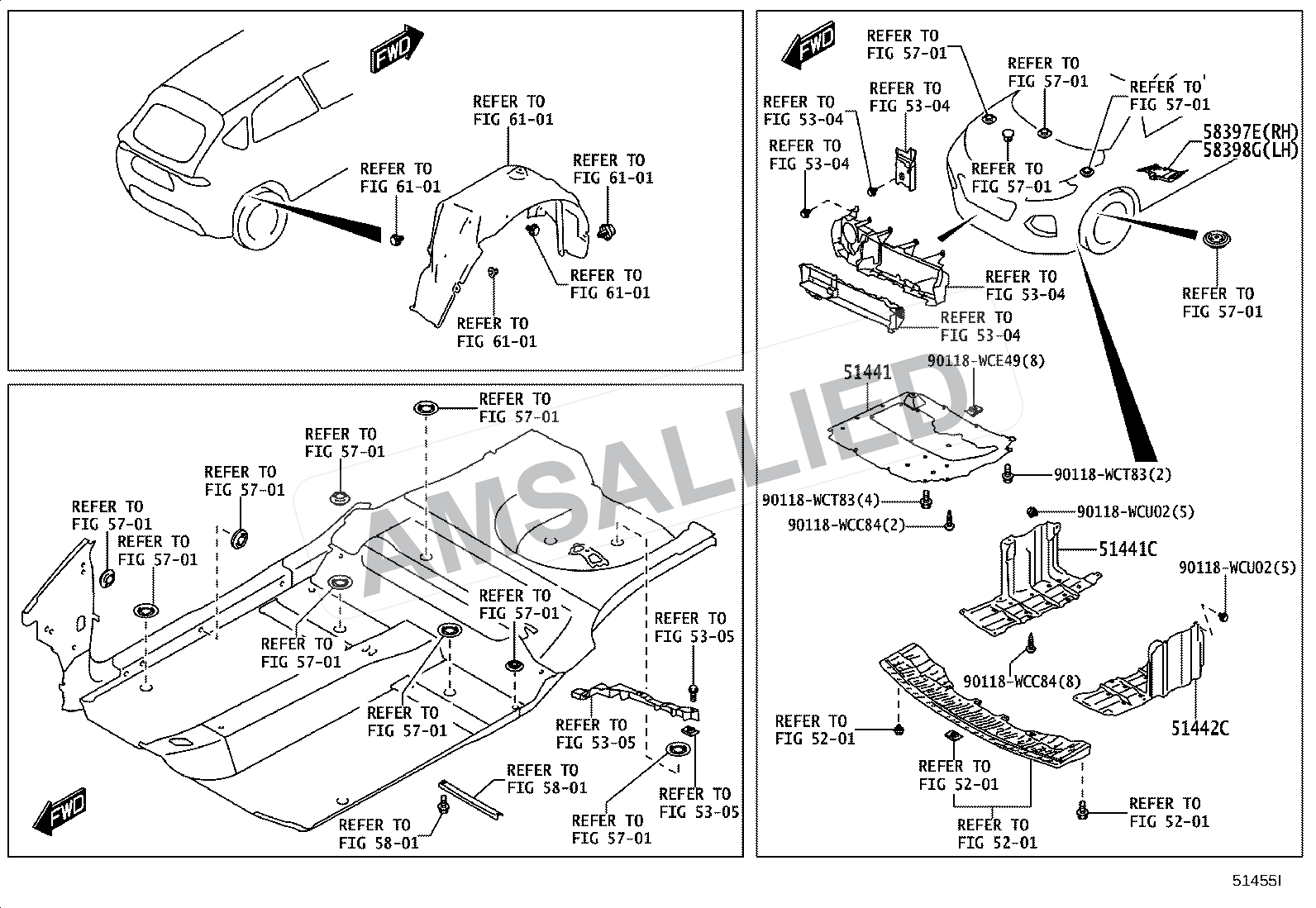

Toyota Taisor Suspension Crossmember & Under Cover exploded parts diagram, figure 5102 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

15 parts

51201-WC008

Crossmember Sub-assy, Front Suspension

PNC 51201

51441-WC006

Cover, Engine Under, No.1

PNC 51441

51441-WC009

Cover, Engine Under, Rh

PNC 51441C

51441-WC010

Cover, Engine Under, No.1

PNC 51441

51442-WC001

Cover, Engine Under, Lh

PNC 51442C

58397-WC001

Cover, Body Lower Back, Rh

PNC 58397E

58398-WC001

Cover, Body Lower Back, Lh

PNC 58398G

90118-WCF17

Cover, Front Suspension Crossmember Hole

PNC 51201J

90118-WCT83

Diagram Hardware / Fastener

PNC 90118WCT83

90118-WCU02

Diagram Hardware / Fastener

PNC 90118WCU02

90118-WCC84

Diagram Hardware / Fastener

PNC 90118WCC84

90118-WCE49

Diagram Hardware / Fastener

PNC 90118WCE49

90118-WC530

Diagram Hardware / Fastener

PNC 90118WC530

90118-WCC47

Diagram Hardware / Fastener

PNC 90118WCC47

90118-WC254

Diagram Hardware / Fastener

PNC 90118WC254
