Beam Assy, Rear Axle
PNC 42110F
Powertrain / Chassis

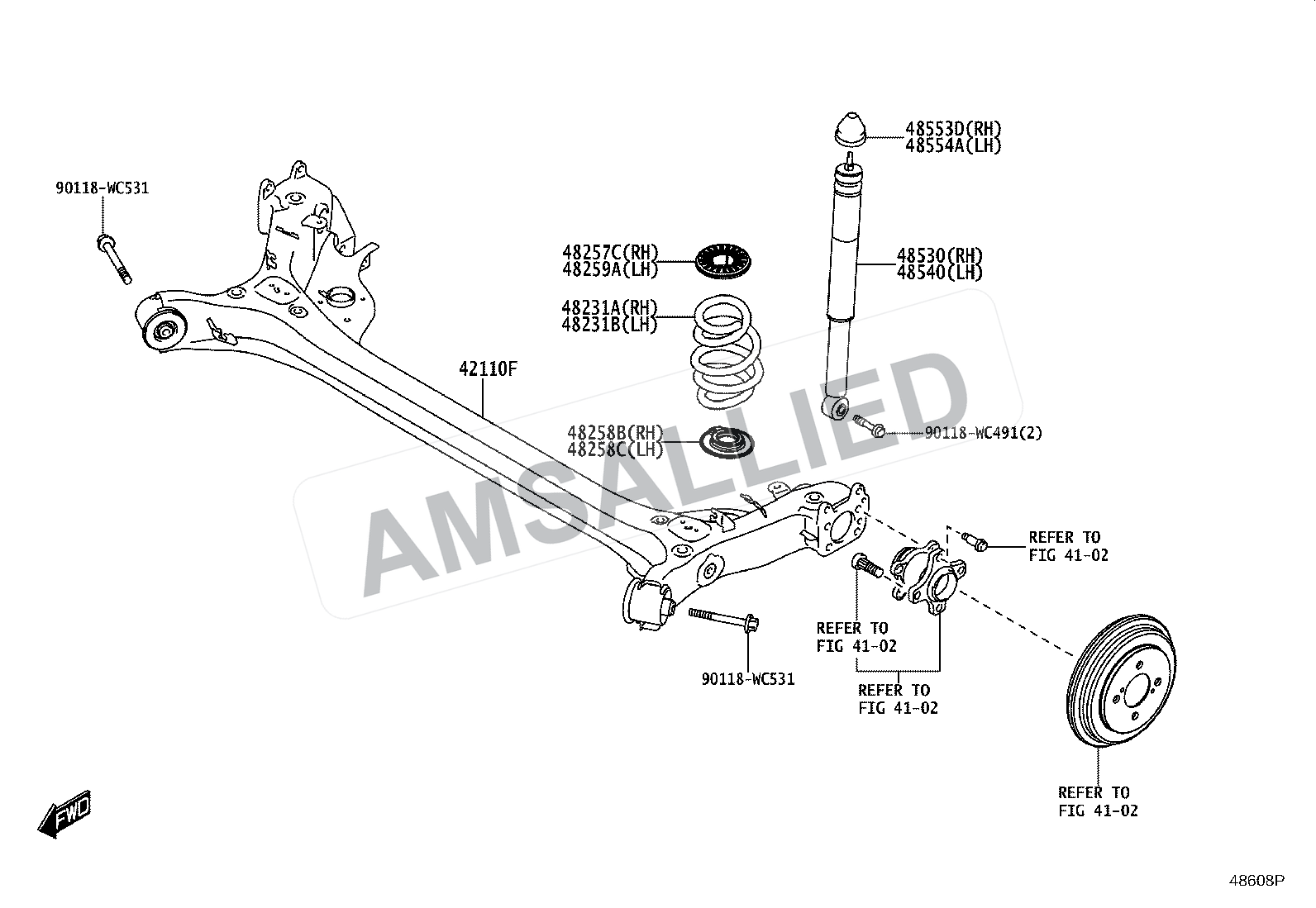

Figure 4804 · Rear Spring & Shock Absorber
12 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
12 partsSpring, Coil, Rear Rh
PNC 48231A, 48231B
Spring, Coil, Rear Rh
PNC 48231A, 48231B
Spring, Coil, Rear Rh
PNC 48231A, 48231B
Insulator, Rear Coil Spring, Upper Rh
PNC 48257C, 48259A
Insulator, Rear Coil Spring, Lower Rh
PNC 48258B, 48258C
Absorber Assy, Shock, Rear Rh
PNC 48530, 48540
Absorber Assy, Shock, Rear Rh
PNC 48530, 48540
Absorber Assy, Shock, Rear Rh
PNC 48530, 48540
Cap, Rear Shock Absorber, Rh
PNC 48553D, 48554A
Diagram Hardware / Fastener
PNC 90118WC491
Diagram Hardware / Fastener
PNC 90118WC531
