Spring, Front Coil, Rh
PNC 48131, 48132
Powertrain / Chassis

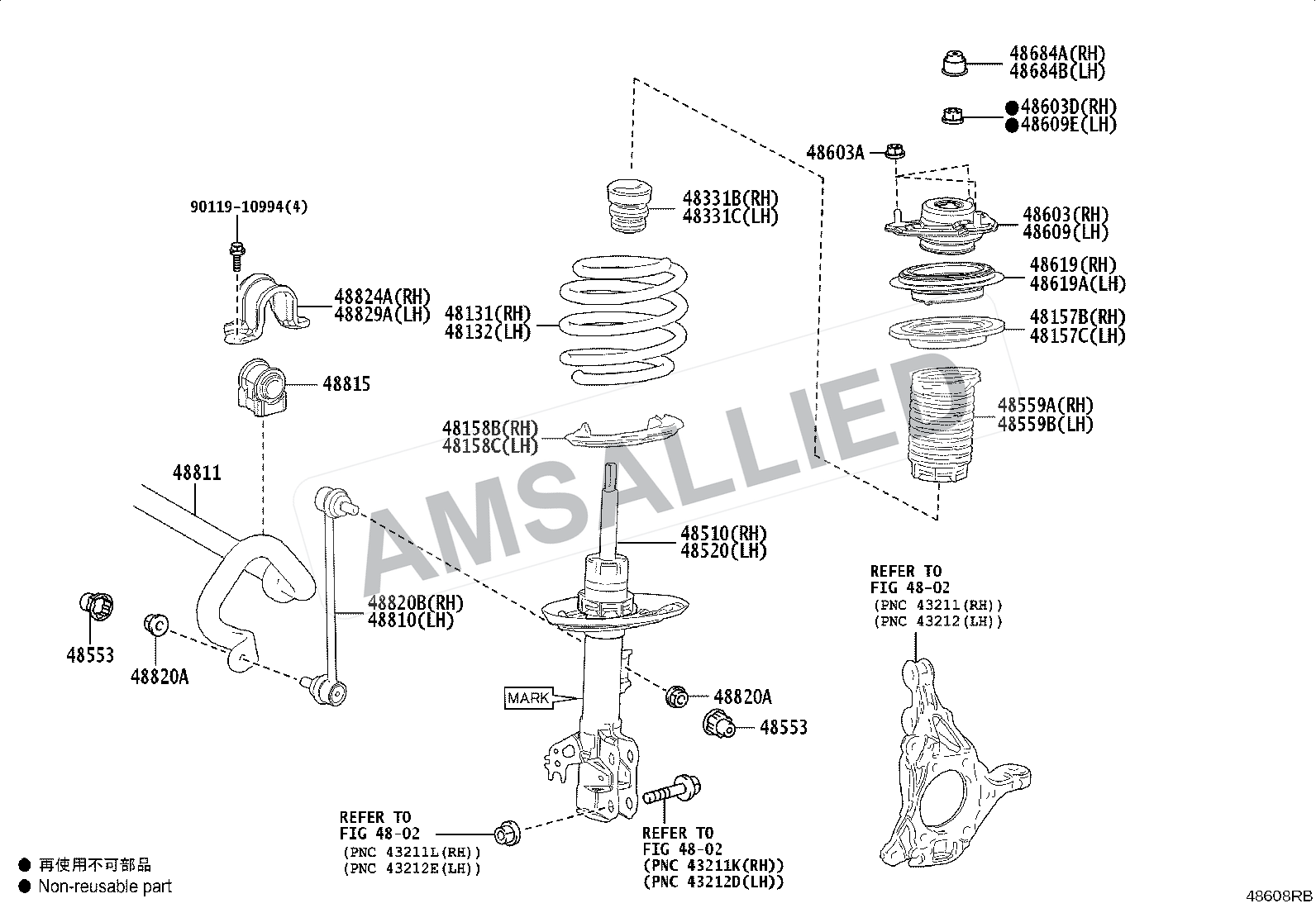

Figure 4803 · Front Spring & Shock Absorber
23 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
23 partsSpring, Front Coil, Rh
PNC 48131, 48132
Spring, Front Coil, Rh
PNC 48131, 48132
Insulator, Front Coil Spring, Lower Rh
PNC 48158B, 48158C
Bumper, Front Spring, Rh
PNC 48331B, 48331C
Seat Sub-assy, Bumper, Rh
PNC 48304A, 48304B
Absorber Assy, Shock, Front Rh
PNC 48510
Absorber Assy, Shock, Front Rh
PNC 48510
Absorber Assy, Shock, Front Lh
PNC 48520
Absorber Assy, Shock, Front Lh
PNC 48520
Insulator, Front Coil Spring, Upper Rh
PNC 48157B, 48157C
Support Sub-assy, Front Suspension, Rh
PNC 48603, 48609
Bearing, Strut Mounting, Rh
PNC 48619, 48619A
Support, Front Suspension, No.2 Rh
PNC 48682A, 48682B
Cover, Front Suspension Support Dust, Rh
PNC 48684A, 48684B
Bar, Stabilizer, Front
PNC 48811
Bush, Front Stabilizer Bar, No.1
PNC 48815
Link Assy, Front Stabilizer, Lh
PNC 48810, 48820B
Bracket, Front Stabilizer, No.1 Rh
PNC 48824A, 48829A
Nut(for Front Suspension Support)
PNC 48603A
Nut(for Front Support To Front Shock Absorber Rh)
PNC 48603D, 48609E
Diagram Hardware / Fastener
PNC 9011910994
Diagram Hardware / Fastener
PNC 90118WCF13
