Actuator Assy, Brake
PNC 44510
Powertrain / Chassis

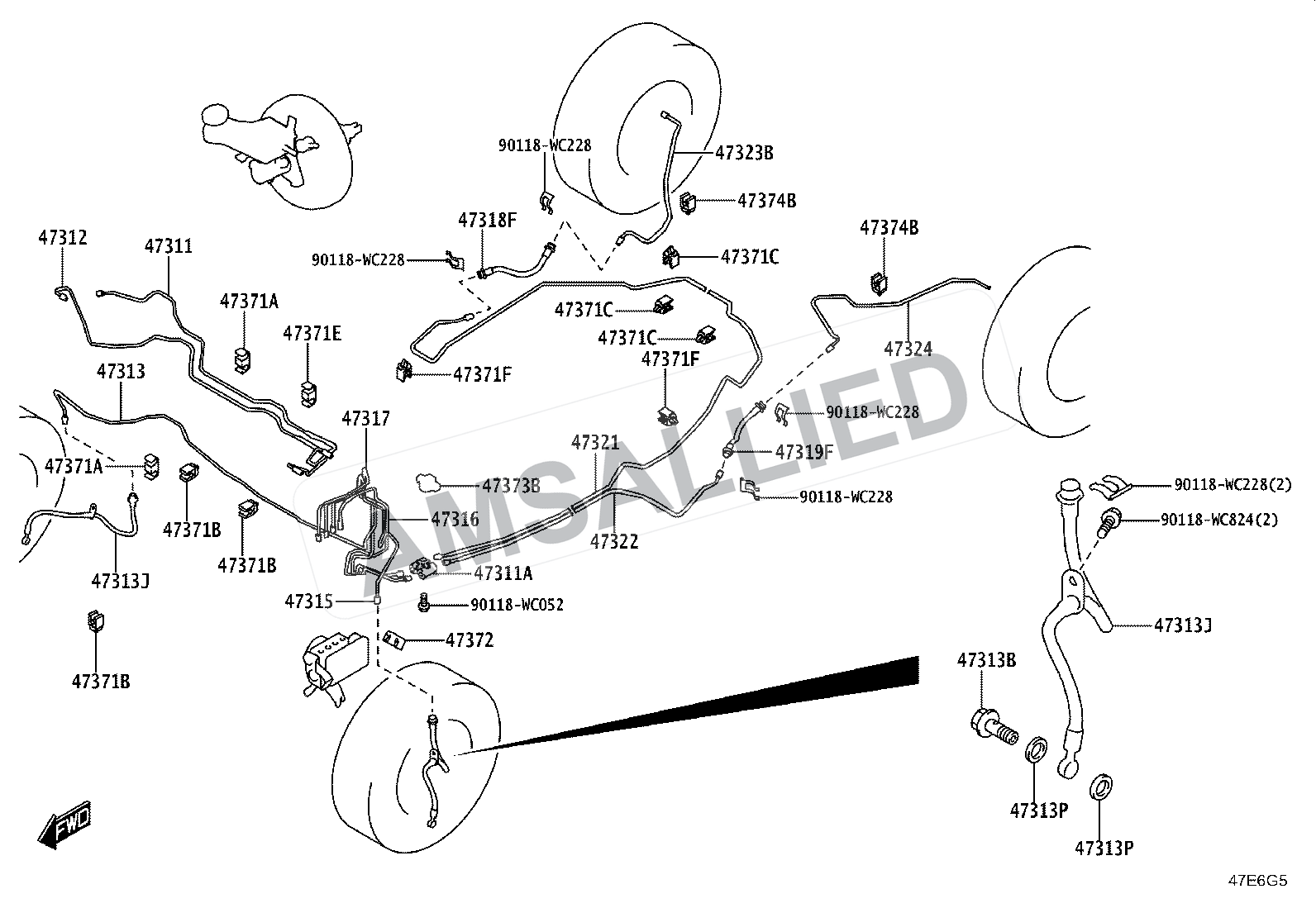

Figure 4708 · Brake Tube & Clamp
30 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
30 partsActuator Assy, Brake
PNC 44510
Actuator Assy, Brake
PNC 44510
Actuator Assy, Brake
PNC 44510
Actuator Assy, Brake
PNC 44510
Bracket Assy, Brake Actuator
PNC 44590
Tube, Front Brake, No.1
PNC 47311
Tube, Front Brake, No.2
PNC 47312
Tube, Front Brake, No.3
PNC 47313
Tube, Front Brake, No.5
PNC 47315
Tube, Front Brake, No.6
PNC 47316
Tube, Front Brake, No.7
PNC 47317
Tube, Rear Brake, No.1
PNC 47321
Tube, Rear Brake, No.1
PNC 47321
Tube, Rear Brake, No.2
PNC 47322
Tube, Rear Brake, No.3
PNC 47323B
Tube, Rear Brake, No.4
PNC 47324
Gasket(for Front Flexible Hose)
PNC 47313P
Bolt, Union(for Front Flexible Hose)
PNC 47313B
Hose, Flexible(for Rear Rh)
PNC 47318F, 47319F
Clamp, Brake Tube, No.6
PNC 47371B, 47371C, 47371F, 47374B
Clamp, Brake Tube, No.2
PNC 47372
Clamp, Brake Tube, No.3
PNC 47373B
Clamp, Brake Tube, No.1
PNC 47371A
Clamp, Brake Tube, No.9
PNC 47371E
Hose, Flexible, No.2(for Front)
PNC 47313J
Way(for Front Brake Tube)
PNC 47311A
Diagram Hardware / Fastener
PNC 90118WC052
Diagram Hardware / Fastener
PNC 90118WC228
Diagram Hardware / Fastener
PNC 90118WC824
