Shoe Kit, Rear Brake
PNC 04495
Powertrain / Chassis

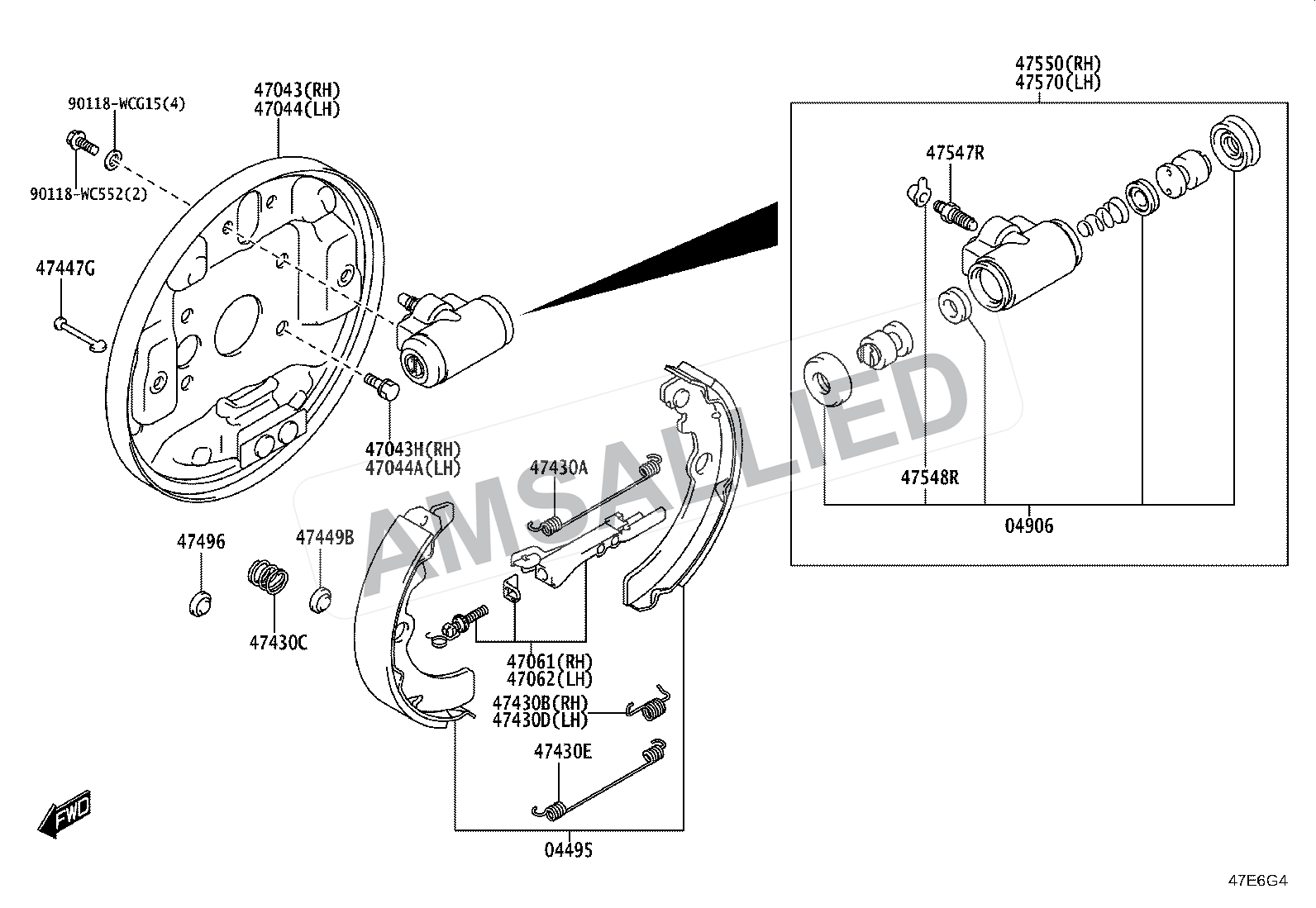

Figure 4706 · Rear Drum Brake Wheel Cylinder & Backing Plate
20 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
20 partsCup Kit, Rear Wheel Cylinder
PNC 04906
Cap, Bleeder Plug(for Drum Brake, Rear)
PNC 47548R
Plate Sub-assy, Brake Backing, Rear Rh
PNC 47043
Plate Sub-assy, Brake Backing, Rear Lh
PNC 47044
Strut Set, Parking Brake Shoe, Rh
PNC 47061
Strut Set, Parking Brake Shoe, Lh
PNC 47062
Pin, Shoe Hold Down Spring(for Rear Brake)
PNC 47447G
Cup, Shoe Hold Down Spring(for Rear Brake)
PNC 47449B
Plug, Hole(for Rear Brake)
PNC 47496
Plug, Bleeder(for Drum Brake, Rear)
PNC 47547R
Cylinder Assy, Rear Wheel Brake(for Rh, Front Or Upper)
PNC 47550, 47570
Bolt, No.1(for Rear Brake Backing Plate Rh)
PNC 47043H, 47044A
Spring, Tension(for Rear Brake Shoe Return)
PNC 47430A
Spring, Tension(for Rear Brake Shoe Return)
PNC 47430E
Spring, Tension(for Rear Brake Shoe Return)
PNC 47430D
Spring(for Rear Brake Shoe Hold Down)
PNC 47430C
Spring, Tension(for Rear Brake Shoe Return)
PNC 47430B
Diagram Hardware / Fastener
PNC 90118WCG15
Diagram Hardware / Fastener
PNC 90118WC552
