Powertrain / Chassis

Figure 4705 · Front Disc Brake Caliper & Dust Cover

15 genuine catalog part numbers · Production from 2024-04

Open interactive figure

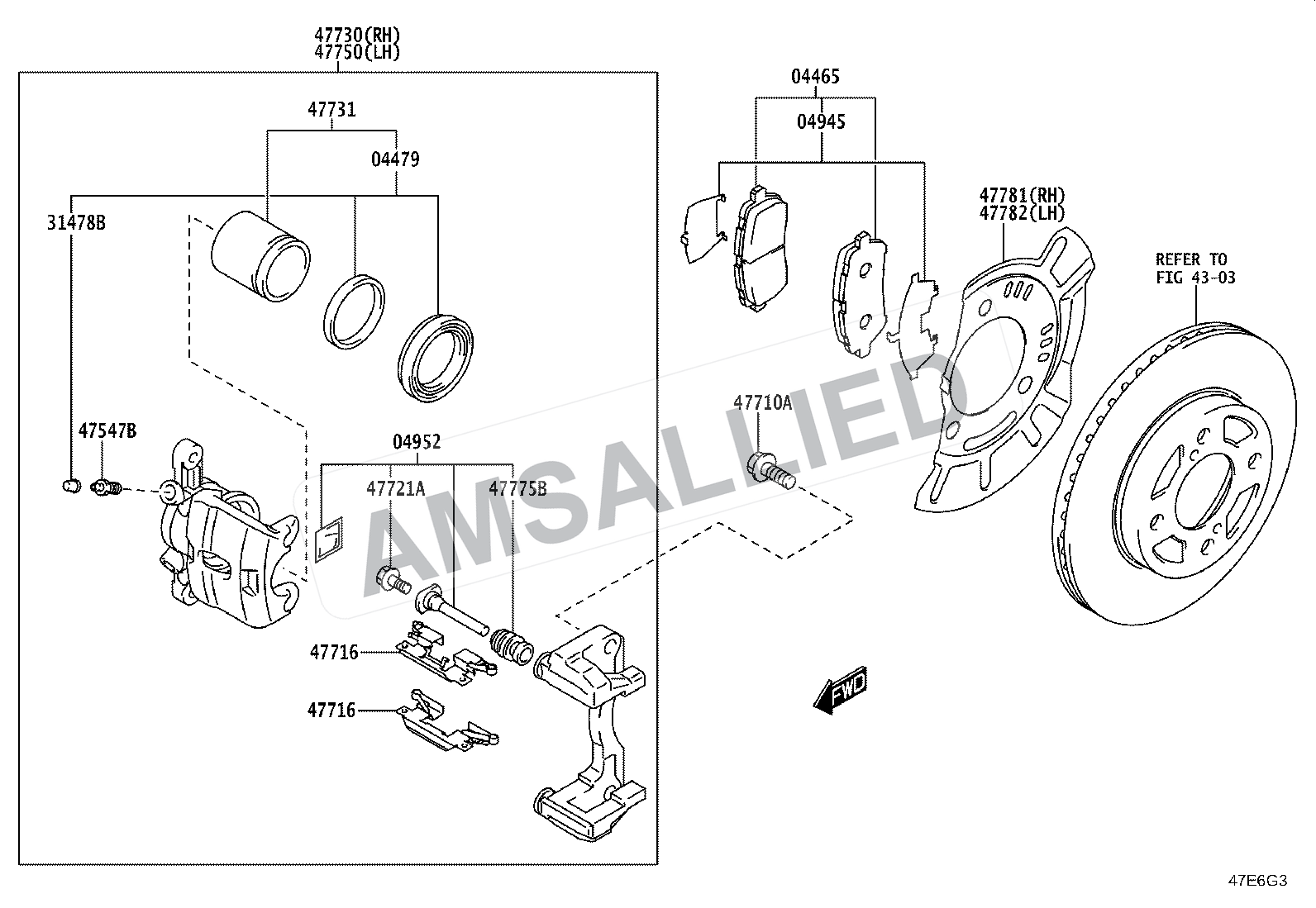

Toyota Taisor Front Disc Brake Caliper & Dust Cover exploded parts diagram, figure 4705 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

15 parts

04465-WC002

Pad Kit, Disc Brake, Front

PNC 04465

04478-WC002

Cylinder Kit, Disc Brake, Front

PNC 04479

04945-WC002

Shim Kit, Anti Squeal, Front

PNC 04945

04952-WC002

Pin Kit, Front Disc Brake Cylinder Slide

PNC 04952

31478-WC001

Cap, Bleeder Plug(for Front Disc Brake)

PNC 31478B

47547-WC001

Plug, Bleeder(for Front Disc Brake)

PNC 47547B

47717-WC002

Plate, Pad Support, No.1(for Front Disc Brake)

PNC 47716

47730-WC002

Cylinder Assy, Front Disc Brake, Rh

PNC 47730

47731-WC002

Piston, Front Disc Brake

PNC 47731

47741-WC002

Boot, Bush Dust, No.1

PNC 47775B

47750-WC002

Cylinder Assy, Disc Brake, Lh

PNC 47750

47781-WC005

Cover, Disc Brake Dust, Front Rh

PNC 47781

47782-WC003

Cover, Disc Brake Dust, Front Lh

PNC 47782

90118-WC560

Bolt, Hexagon(for Front Disc Brake Caliper)

PNC 47710A

90118-WC561

Bolt(for Front Disc Brake Cylinder Mounting)

PNC 47721A
