Powertrain / Chassis

Figure 4703 · Brake Booster & Vacuum Tube

12 genuine catalog part numbers · Production from 2024-04

Open interactive figure

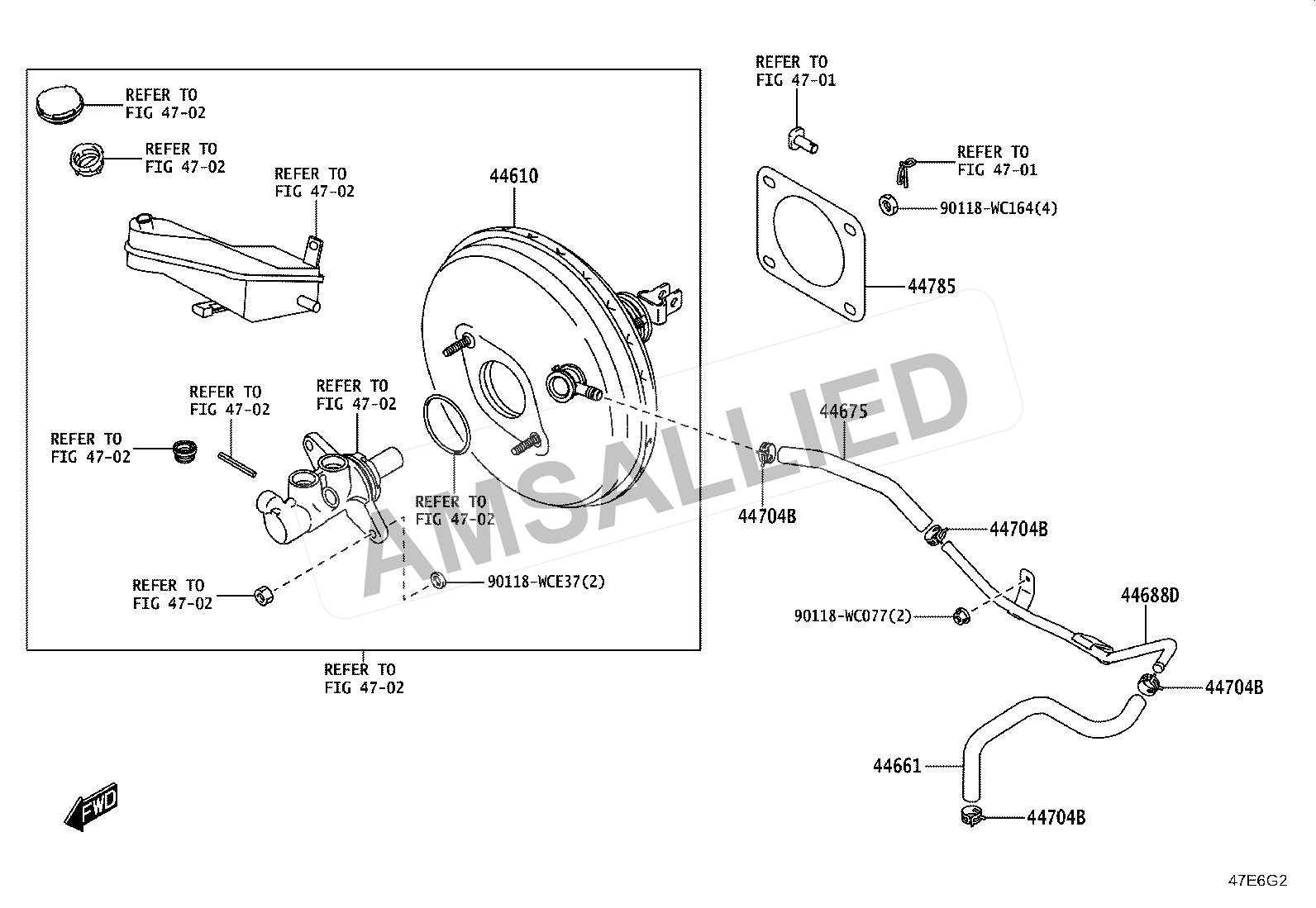

Toyota Taisor Brake Booster & Vacuum Tube exploded parts diagram, figure 4703 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

12 parts

Booster Assy, Brake

PNC 44610

Booster Assy, Brake

PNC 44610

Hose, Booster Vacuum

PNC 44688D

Hose, Booster Vacuum

PNC 44675

Tube, Booster Vacuum

PNC 44661

Tube, Booster Vacuum

PNC 44661

Gasket, Brake Booster

PNC 44785

Gasket, Brake Booster

PNC 44785

Clip(for Hose)

PNC 44704B

Diagram Hardware / Fastener

PNC 90118WC164

Diagram Hardware / Fastener

PNC 90118WCE37

Diagram Hardware / Fastener

PNC 90118WC077
