Figure 4701 · Brake Pedal & Bracket

5 genuine catalog part numbers · Production from 2024-04

Open interactive figure

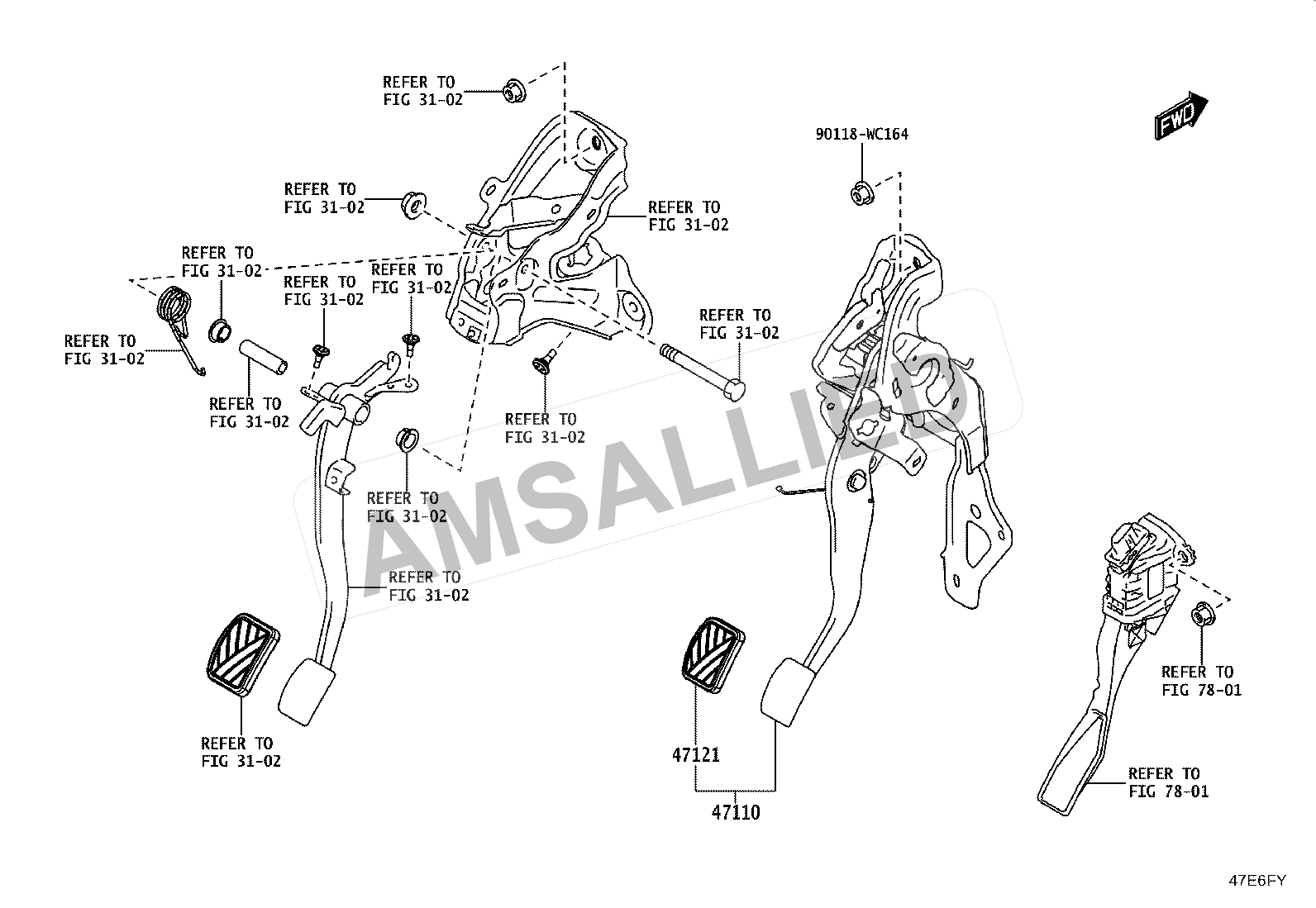

Toyota Taisor Brake Pedal & Bracket exploded parts diagram, figure 4701 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

5 parts

Support Assy, Brake Pedal

PNC 47110

Support Assy, Brake Pedal

PNC 47110

Pad, Brake Pedal

PNC 47121

Pin(for Push Rod)

PNC 47264A

Diagram Hardware / Fastener

PNC 90118WC164
