End Sub-assy, Tie Rod, Rh
PNC 45046
Powertrain / Chassis

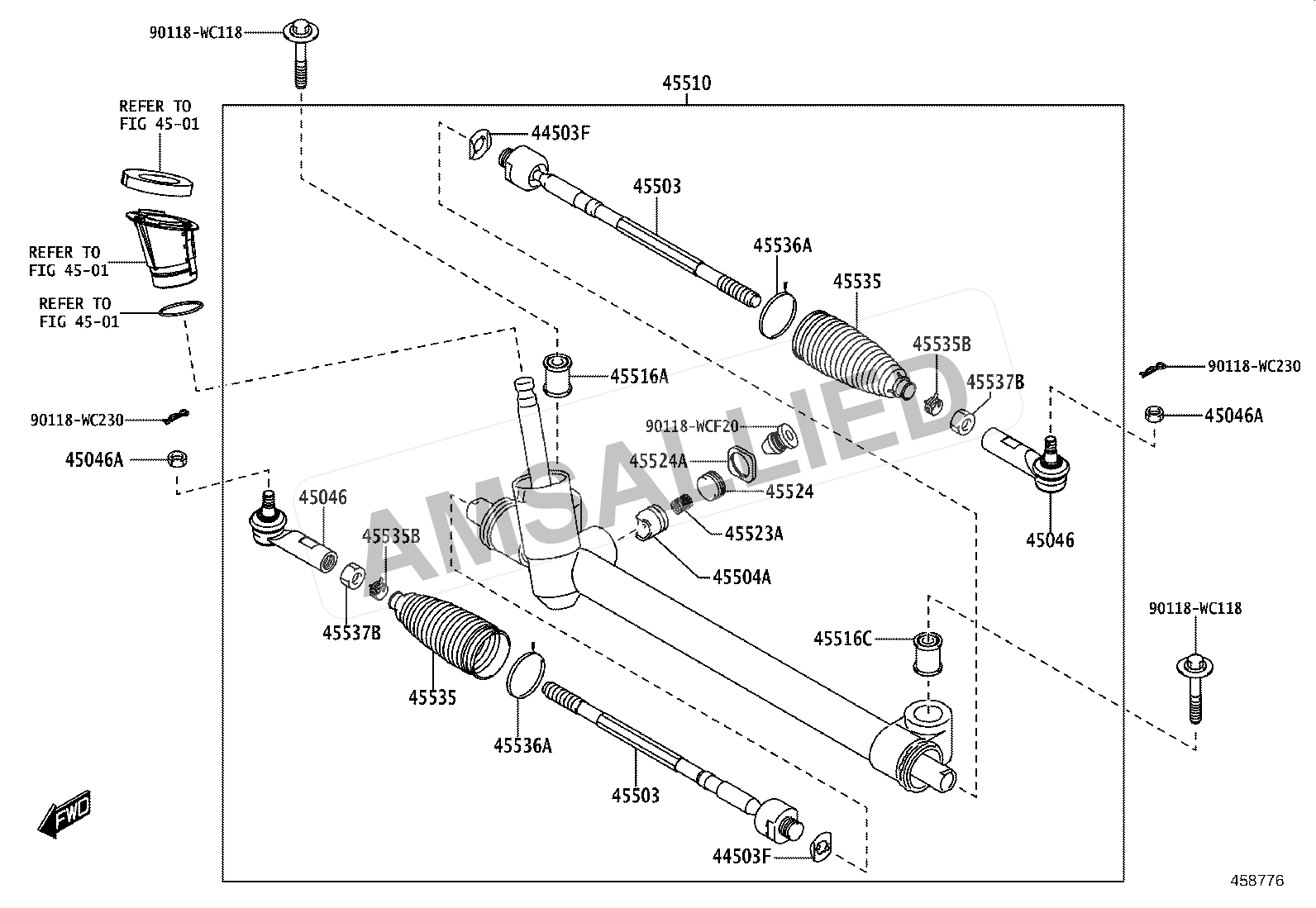

Figure 4505 · Front Steering Gear & Link
25 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
25 partsEnd Sub-assy, Steering Rack
PNC 45503
End Sub-assy, Steering Rack
PNC 45503
Guide Sub-assy, Rack
PNC 45504A
Guide Sub-assy, Rack
PNC 45504A
Gear Assy, Steering
PNC 45510
Gear Assy, Steering
PNC 45510
Bush, Steering Rack Housing, No.1
PNC 45516A
Bush, Steering Rack Housing, No.2
PNC 45516C
Cap, Steering Rack Guide Spring
PNC 45524
Cap, Steering Rack Guide Spring
PNC 45524
Boot, Steering Rack, No.1
PNC 45535
Boot, Steering Rack, No.1
PNC 45535
Nut, Castle(for Tie Rod End)
PNC 45046A
Nut, Rack End Lock
PNC 45537B
Washer, Claw(for Power Steering Rack End)
PNC 44503F
Clip(for Steering Rack Boot)
PNC 45535B
Clamp(for Steering Rack Boot No.2)
PNC 45536A
Spring(for Steering Gear Rack Guide)
PNC 45523A
Nut(for Steering Rack Guide Spring Cap)
PNC 45524A
Spring(for Steering Gear Rack Guide)
PNC 45523A
Nut(for Steering Rack Guide Spring Cap)
PNC 45524A
Diagram Hardware / Fastener
PNC 90118WC118
Diagram Hardware / Fastener
PNC 90118WC230
Diagram Hardware / Fastener
PNC 90118WCF20
