Actuator Or Upper Bracket Assy, Steering Lock
PNC 45020B
Powertrain / Chassis

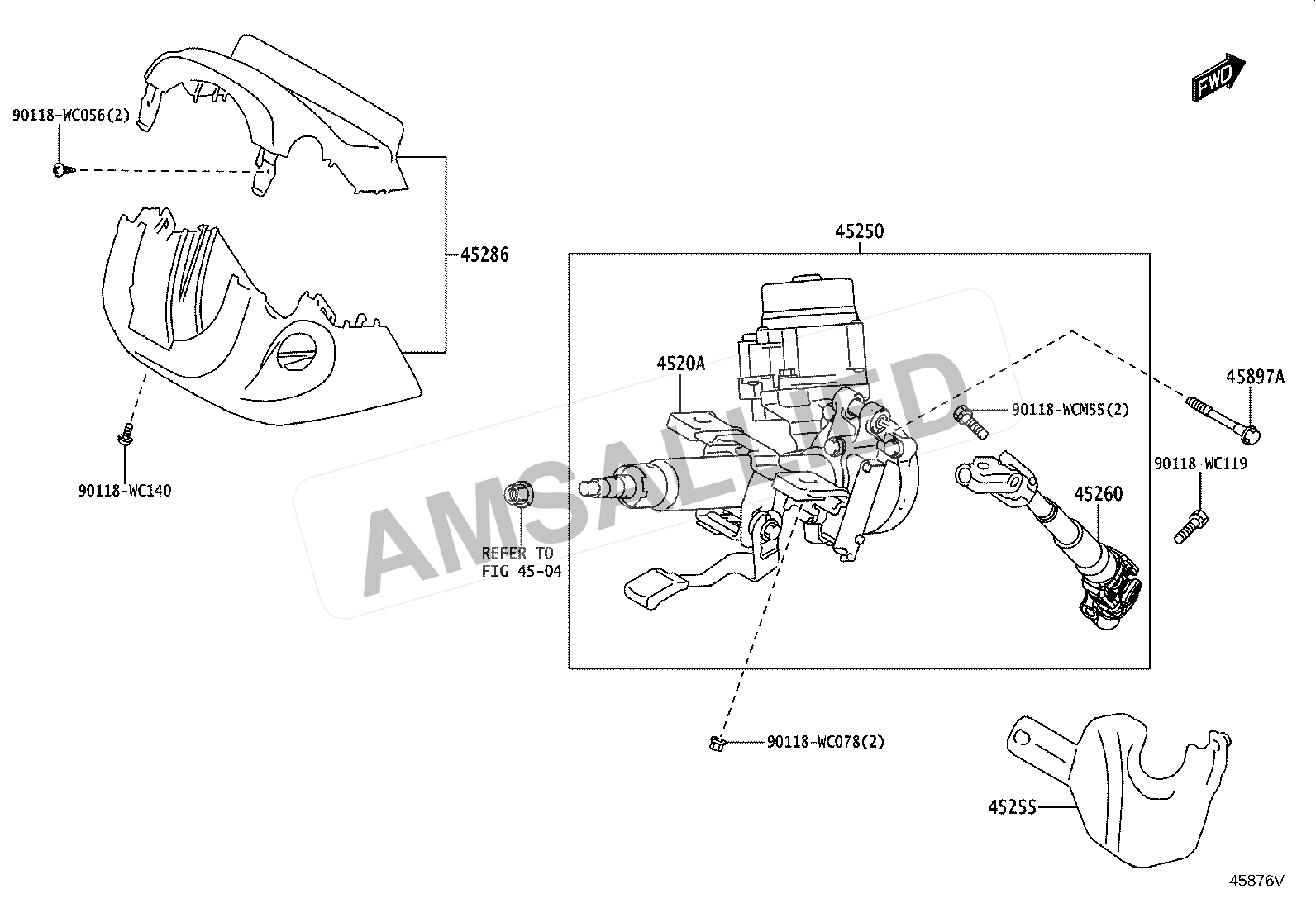

Figure 4501 · Steering Column & Shaft
25 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
25 partsCover, Steering Column
PNC 45286
Cover, Steering Column
PNC 45286
Column Sub-assy, Electric Power Steering
PNC 4520A
Column Sub-assy, Electric Power Steering
PNC 4520A
Column Sub-assy, Electric Power Steering
PNC 4520A
Column Sub-assy, Electric Power Steering
PNC 4520A
Column Sub-assy, Electric Power Steering
PNC 4520A
Column Sub-assy, Electric Power Steering
PNC 4520A
Column Assy, Steering
PNC 45250
Column Assy, Steering
PNC 45250
Column Assy, Steering
PNC 45250
Column Assy, Steering
PNC 45250
Seal, Dust
PNC 45231B
Plate, Steering Column Hole Cover
PNC 45255
Shaft Assy, Steering Intermediate, No.2
PNC 45260
Cover Sub-assy, Steering Column Hole, No.1
PNC 45025D
Bolt, Steering Lock Set
PNC 45897
Bolt, Tilt Steering Pawl Set
PNC 45897A
Ring, O(for Steering Column Hole Cover)
PNC 45025A
Diagram Hardware / Fastener
PNC 90118WC056
Diagram Hardware / Fastener
PNC 90118WC119
Diagram Hardware / Fastener
PNC 90118WC078
Diagram Hardware / Fastener
PNC 90118WCM55
Diagram Hardware / Fastener
PNC 90118WC140
