Powertrain / Chassis

Figure 4303 · Front Axle Hub

5 genuine catalog part numbers · Production from 2024-04

Open interactive figure

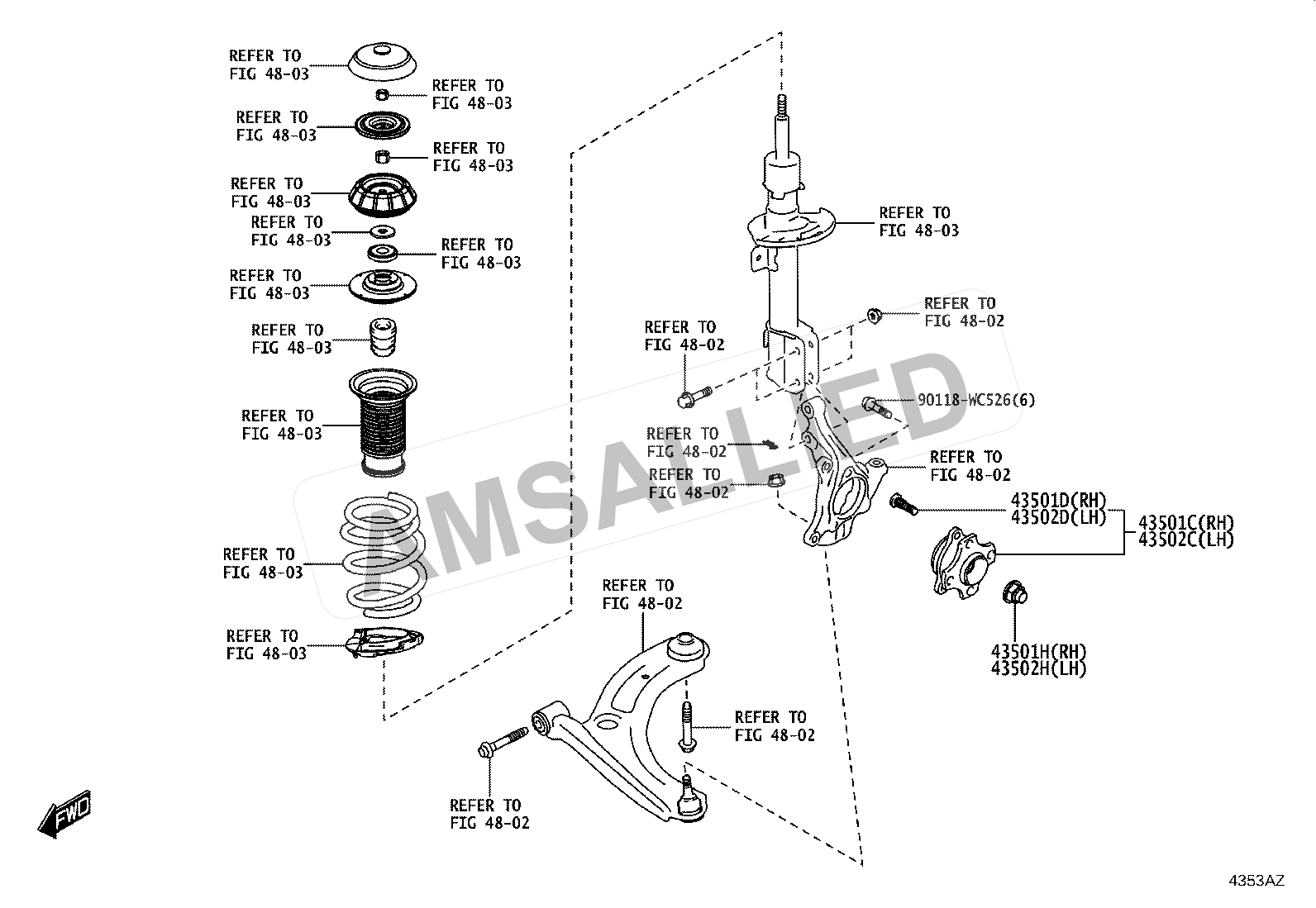

Toyota Taisor Front Axle Hub exploded parts diagram, figure 4303 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

5 parts

Disc, Front

PNC 43512

Hub Sub-assy, Front Axle, Rh

PNC 43501C, 43502C

Nut (for Front Axle Shaft Rh)

PNC 43501H, 43502H

Bolt, Hub (for Front Axle Rh)

PNC 43501D, 43502D

Diagram Hardware / Fastener

PNC 90118WC526
