Figure 4302 · Front Drive Shaft

41 genuine catalog part numbers · Production from 2024-04

Open interactive figure

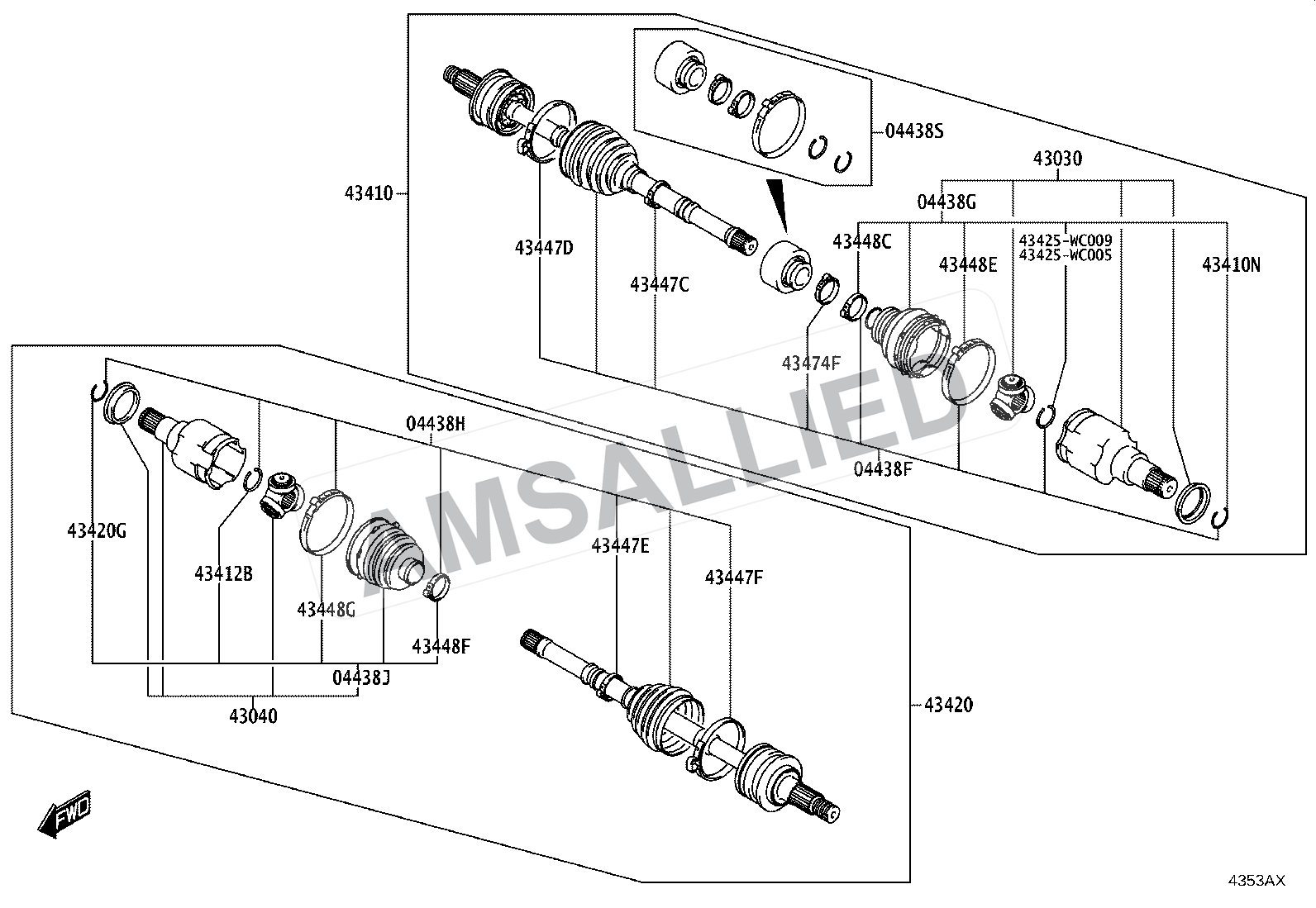

Toyota Taisor Front Drive Shaft exploded parts diagram, figure 4302 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

41 parts

04427-WC035

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F

04427-WC036

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F

04427-WC037

Boot Kit, Front Drive Shaft, In & Outboard, Rh

PNC 04438F

04427-WC038

Boot Kit, Front Drive Shaft, In & Outboard, Lh

PNC 04438H

04427-WC039

Boot Kit, Front Drive Shaft, In & Outboard, Lh

PNC 04438H

04427-WC040

Boot Kit, Front Drive Shaft, In & Outboard, Lh

PNC 04438H

04437-WC025

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G, 04438J

04437-WC026

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G, 04438J

04437-WC027

Boot Kit, Front Drive Shaft Inboard Joint, Rh

PNC 04438G, 04438J

42345-WC003

Clamp (for Front Axle Outboard Joint Boot Rh)

PNC 43447C, 43447E

42345-WC005

Clamp (for Front Drive Shaft Damper Rh)

PNC 43474F

42345-WC013

Clamp, No.2 (for Front Axle Outboard Joint Boot Rh)

PNC 43447D, 43447F

42345-WC016

Clamp (for Front Axle Inboard Joint Boot Rh)

PNC 43448C, 43448F

42345-WC021

Clamp, No.2 (for Front Axle Inboard Joint Boot Rh)

PNC 43448E, 43448G

42345-WC024

Clamp, No.2 (for Front Axle Outboard Joint Boot Rh)

PNC 43447D, 43447F

42345-WC025

Clamp (for Front Axle Outboard Joint Boot Rh)

PNC 43447C, 43447E, 43448C, 43448F

42345-WC026

Clamp (for Front Drive Shaft Damper Rh)

PNC 43474F

42345-WC045

Clamp, No.2 (for Front Axle Inboard Joint Boot Rh)

PNC 43448E, 43448G

42345-WC046

Clamp, No.2 (for Front Axle Inboard Joint Boot Rh)

PNC 43448E, 43448G

42345-WC047

Clamp (for Front Axle Inboard Joint Boot Rh)

PNC 43448C, 43448F

42345-WC048

Clamp (for Front Drive Shaft Damper Rh)

PNC 43474F

43030-WC014

Joint Assy, Front Drive Inboard, Lh

PNC 43040

43030-WC015

Joint Assy, Front Drive Inboard, Lh

PNC 43040

43040-WC021

Joint Assy, Front Drive Inboard, Rh

PNC 43030

43040-WC022

Joint Assy, Front Drive Inboard, Rh

PNC 43030

43040-WC023

Joint Assy, Front Drive Inboard, Rh

PNC 43030, 43040

43410-WC026

Shaft Assy, Front Drive, Rh

PNC 43410

43410-WC027

Shaft Assy, Front Drive, Rh

PNC 43410

43410-WC028

Shaft Assy, Front Drive, Rh

PNC 43410

43420-WC024

Shaft Assy, Front Drive, Lh

PNC 43420

43420-WC025

Shaft Assy, Front Drive, Lh

PNC 43420

43420-WC026

Shaft Assy, Front Drive, Lh

PNC 43420

43425-WC003

Ring, Shaft Snap (for Front Drive Inner Shaft Inner Rh)

PNC 43411E, 43412B

43425-WC005

Ring, Shaft Snap (for Front Drive Inner Shaft Inner Lh)

PNC 43412B

43425-WC009

Ring, Shaft Snap (for Front Drive Inner Shaft Inner Lh)

PNC 43412B

43425-WC010

Ring, Hole Snap (for Front Drive Shaft Rh)

PNC 43410N, 43420G

43474-WC017

Clamp Kit, Front Drive Shaft, Rh

PNC 04438S

43474-WC018

Clamp Kit, Front Drive Shaft, Rh

PNC 04438S

43474-WC019

Clamp Kit, Front Drive Shaft, Rh

PNC 04438S

90118-WC527

Ring, Hole Snap (for Front Drive Shaft Rh)

PNC 43410N, 43420G

90118-WCK97

Ring, Hole Snap (for Front Drive Shaft Rh)

PNC 43410N, 43420G
