Powertrain / Chassis

Figure 4103 · Disc Wheel & Wheel Cap

18 genuine catalog part numbers · Production from 2024-04

Open interactive figure

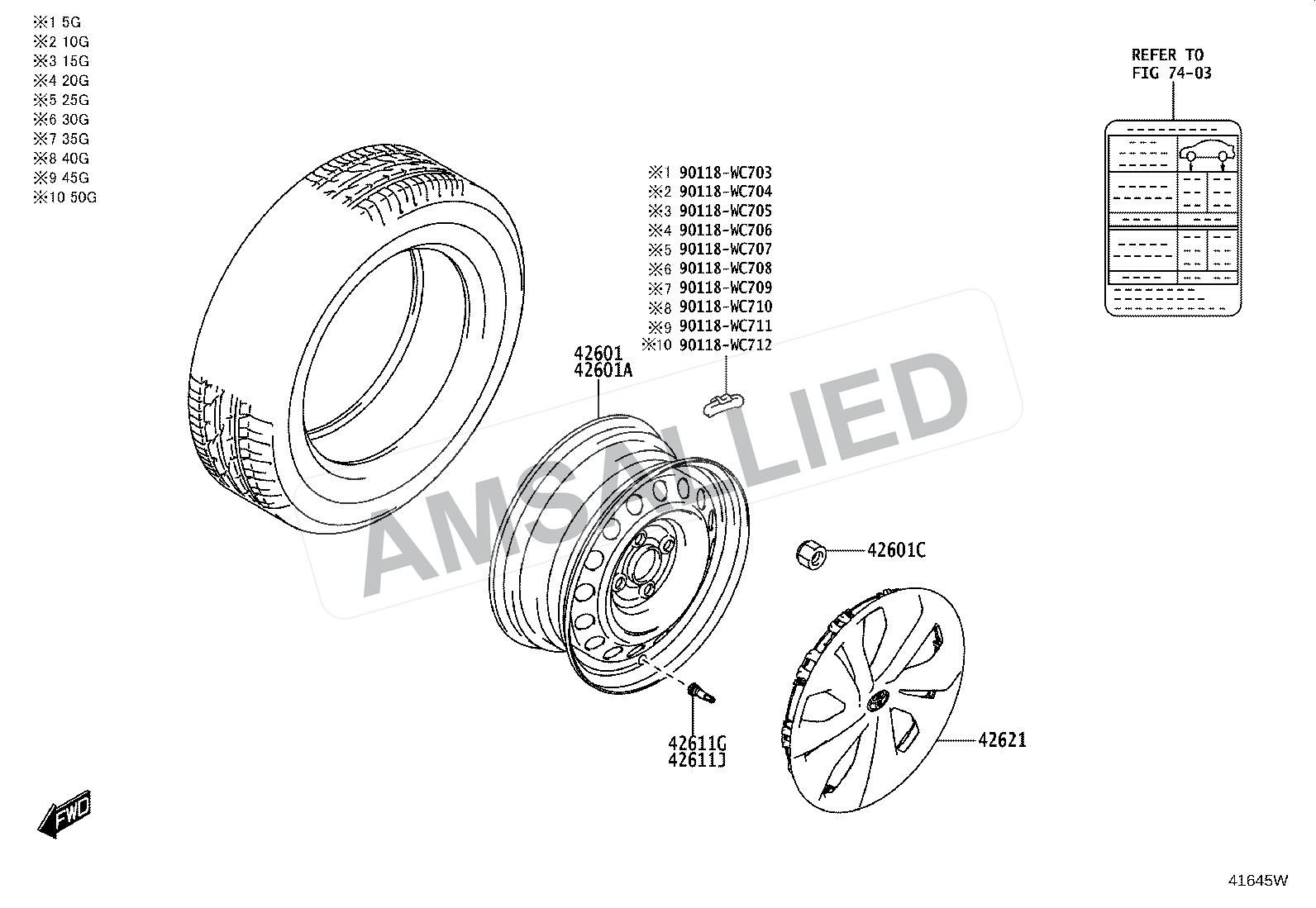

Toyota Taisor Disc Wheel & Wheel Cap exploded parts diagram, figure 4103 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

18 parts

42602-WC009

Cap, Wheel

PNC 42621

42603-WC001

Ornament Sub-assy, Wheel Hub

PNC 42603

42611-WC035

Wheel, Disc

PNC 42601

42611-WC036

Wheel, Disc

PNC 42601

42611-WC037

Wheel, Disc

PNC 42601, 42601A

90118-WC493

Valve (for Tubeless Tire)

PNC 42611G, 42611J

90118-WC523

Nut, Hub (for Axle)

PNC 42601C

90118-WC685

Nut, Hub (for Axle)

PNC 42601C

90118-WC712

Diagram Hardware / Fastener

PNC 90118WC712

90118-WC711

Diagram Hardware / Fastener

PNC 90118WC711

90118-WC710

Diagram Hardware / Fastener

PNC 90118WC710

90118-WC709

Diagram Hardware / Fastener

PNC 90118WC709

90118-WC708

Diagram Hardware / Fastener

PNC 90118WC708

90118-WC707

Diagram Hardware / Fastener

PNC 90118WC707

90118-WC706

Diagram Hardware / Fastener

PNC 90118WC706

90118-WC705

Diagram Hardware / Fastener

PNC 90118WC705

90118-WC704

Diagram Hardware / Fastener

PNC 90118WC704

90118-WC703

Diagram Hardware / Fastener

PNC 90118WC703
