Figure 3514 · Oil Cooler & Tube (atm)

11 genuine catalog part numbers · Production from 2024-04

Open interactive figure

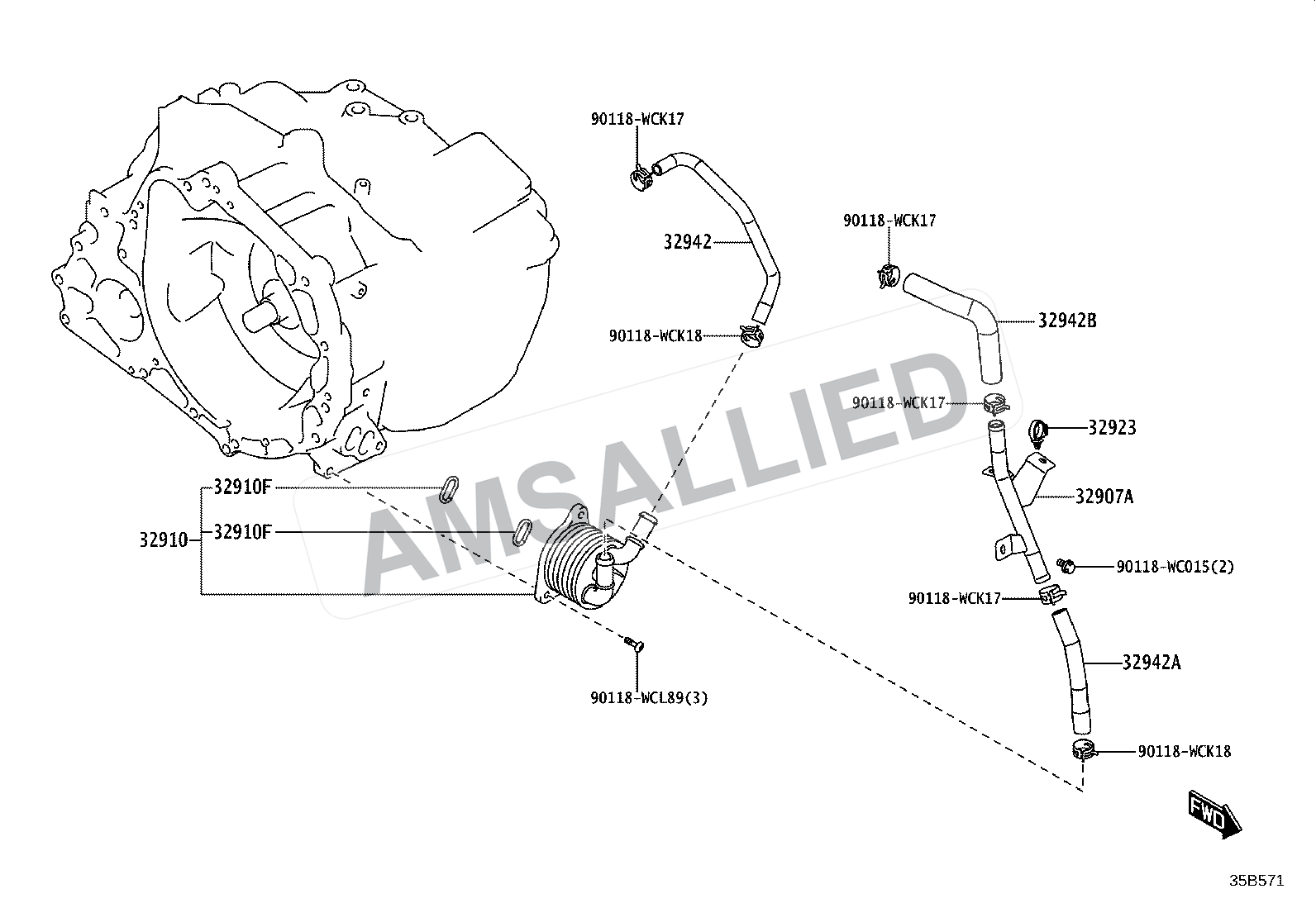

Toyota Taisor Oil Cooler & Tube (atm) exploded parts diagram, figure 3514 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

11 parts

Tube, Oil Cooler

PNC 32907A

Cooler Assy, Oil

PNC 32910

Clamp, Automatic Transmission Oil Cooler Tube

PNC 32923

Hose, Oil Cooler Outlet, No.1

PNC 32942

Hose, Oil Cooler Outlet, No.2

PNC 32942A

Hose, Oil Cooler Outlet, No.3

PNC 32942B

Ring, O(for Oil Cooler)

PNC 32910F

Diagram Hardware / Fastener

PNC 90118WC015

Diagram Hardware / Fastener

PNC 90118WCK18

Diagram Hardware / Fastener

PNC 90118WCL89

Diagram Hardware / Fastener

PNC 90118WCK17
