Cover Sub-assy, Manual Transmission Case
PNC 33102E
Powertrain / Chassis

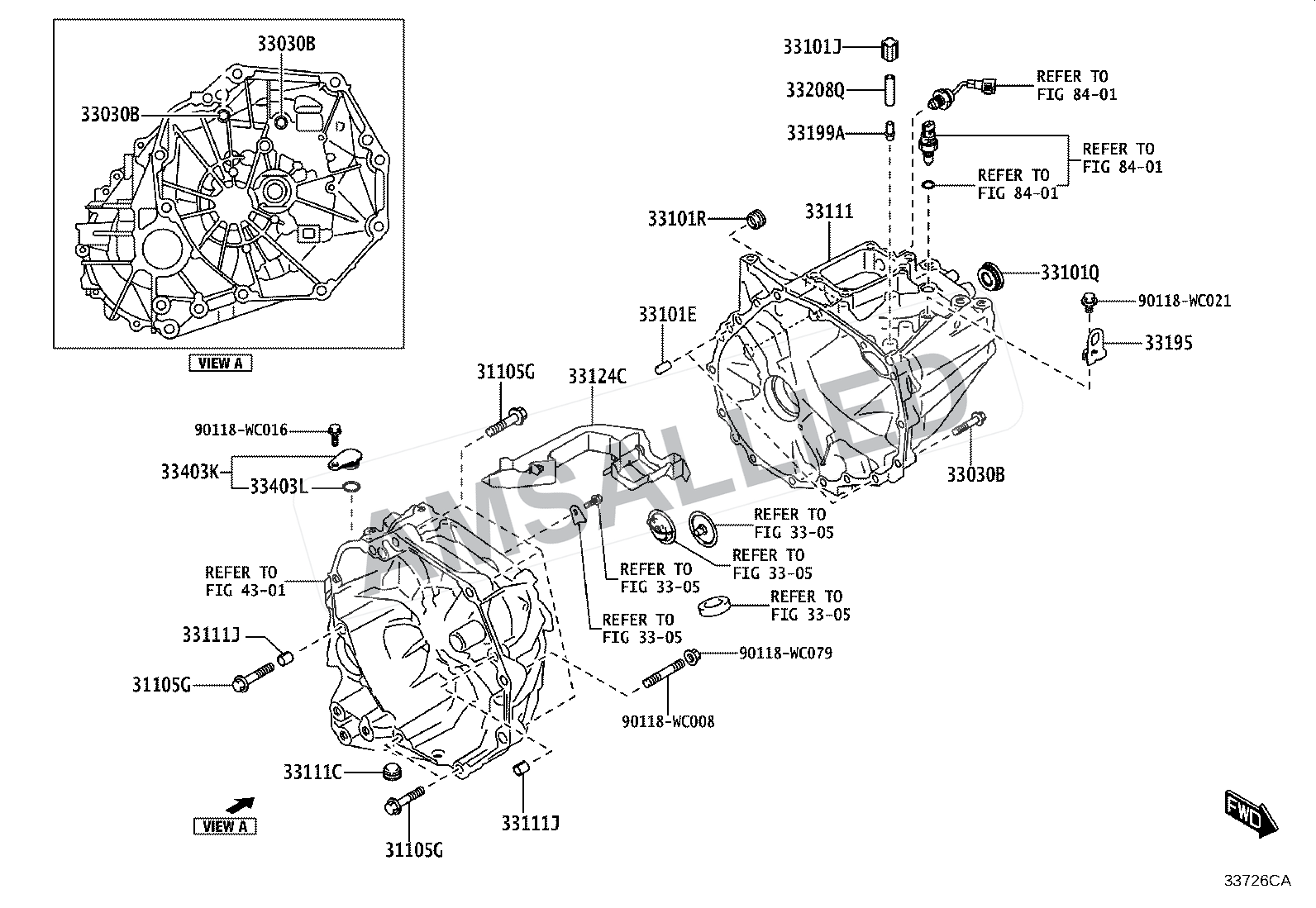

Figure 3302 · Clutch Housing & Transmission Case (mtm)
39 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
39 partsCase, Manual Transmission
PNC 33111
Case, Manual Transmission
PNC 33111
Case, Manual Transmission
PNC 33111
Case, Manual Transmission
PNC 33111
Pipe, Oil Receiver, No.1(mtm)
PNC 33124C
Pipe, Oil Receiver, No.1(mtm)
PNC 33124C
Hanger, Transmission Case, No.1
PNC 33195
Hanger, Transmission Case, No.1
PNC 33195
Hanger, Transmission Case, No.1
PNC 33195
Plate, Stiffener, Lh(mtm)
PNC 33119
Cover Sub-assy, Speedometer Driven Hole
PNC 33403K
Bolt(for Transaxle Case & Transmission Case Setting)
PNC 33030B
Pin, Straight(for Manual Transmission Case)
PNC 33111J
Plug, No.2(for Transmission Case)
PNC 33101R
Plug(for Transmission Case)
PNC 33111C
Ring, O
PNC 33403L
Pin, Straight(for Transmission Case)
PNC 33101E
Plug, No.1(for Transmission Case)
PNC 33101Q
Protector, Breather
PNC 33199A
Plug, Breather
PNC 33101J
Bolt(for Transaxle Case & Engine Setting)
PNC 31105G
Hose, Breather
PNC 33208Q
Retainer, Output Shaft Rear Bearing(mtm)
PNC 33151
Hose, Breather
PNC 33208Q
Protector, Breather
PNC 33199A
Hose, Breather
PNC 33208Q
Gasket, Transmission Case Plug
PNC 33111X
Plug, Manual Transmission Case
PNC 33111A
Diagram Hardware / Fastener
PNC 90118WC016
Diagram Hardware / Fastener
PNC 90118WC021
Diagram Hardware / Fastener
PNC 90118WC008
Diagram Hardware / Fastener
PNC 90118WC079
Diagram Hardware / Fastener
PNC 90118WC846
Diagram Hardware / Fastener
PNC 90118WC868
Diagram Hardware / Fastener
PNC 90118WCB68
Diagram Hardware / Fastener
PNC 90118WCA74
Diagram Hardware / Fastener
PNC 90118WC022
Diagram Hardware / Fastener
PNC 90118WCJ21
