Powertrain / Chassis

Figure 3107 · Pump & Actuator, Sequential Or Multi-mode Manual Transaxle

19 genuine catalog part numbers · Production from 2024-04

Open interactive figure

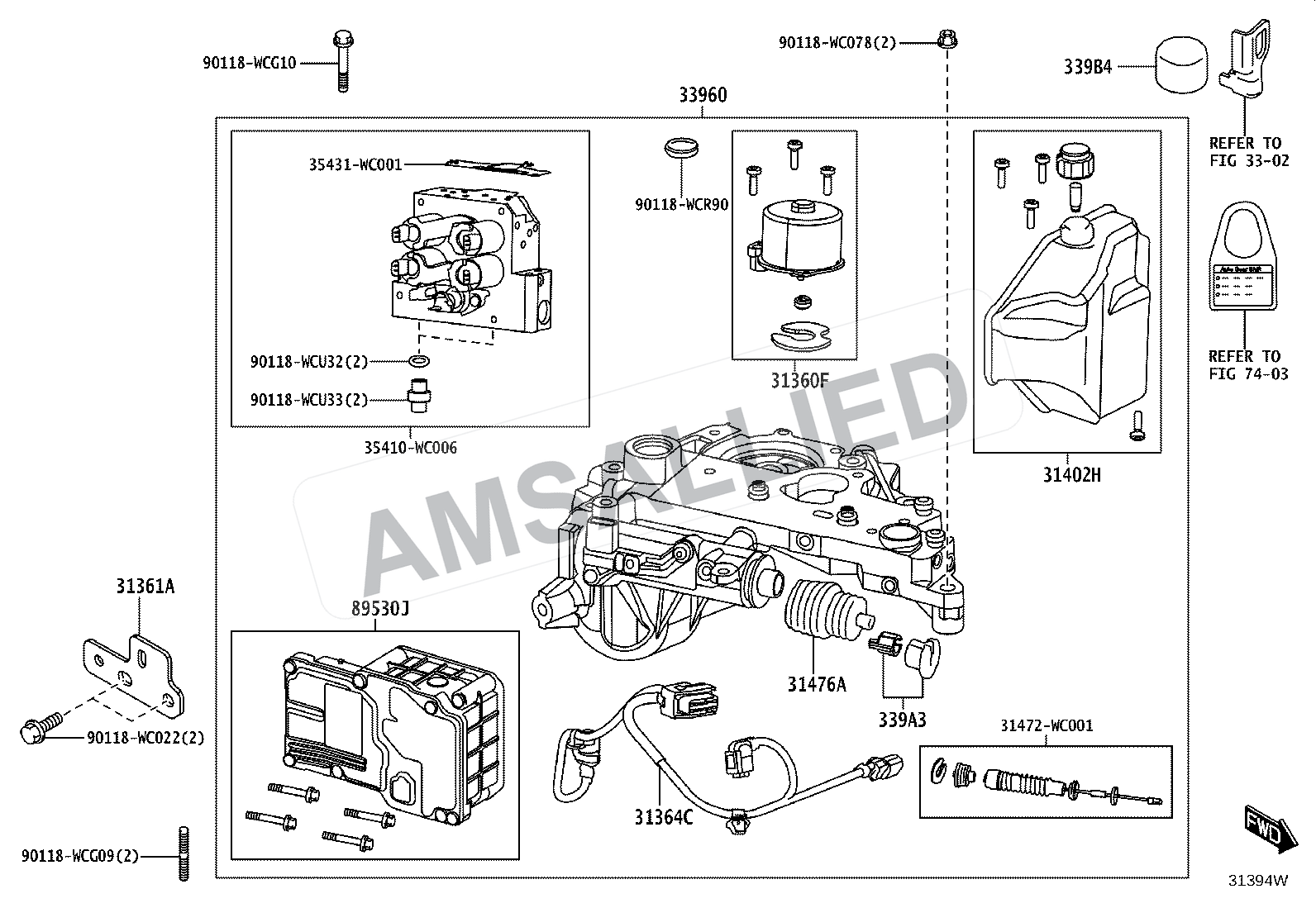

Toyota Taisor Pump & Actuator, Sequential Or Multi-mode Manual Transaxle exploded parts diagram, figure 3107
AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

19 parts
31360-WC001

Pump Assy, Sequential Transmission

PNC 31360F

31361-WC001

Bracket, Sequential Transmission Pump

PNC 31361A

33960-WC008

Actuator Assy, Sequential Transmission

PNC 33960
