Cover Assy, Clutch
PNC 31210
Powertrain / Chassis

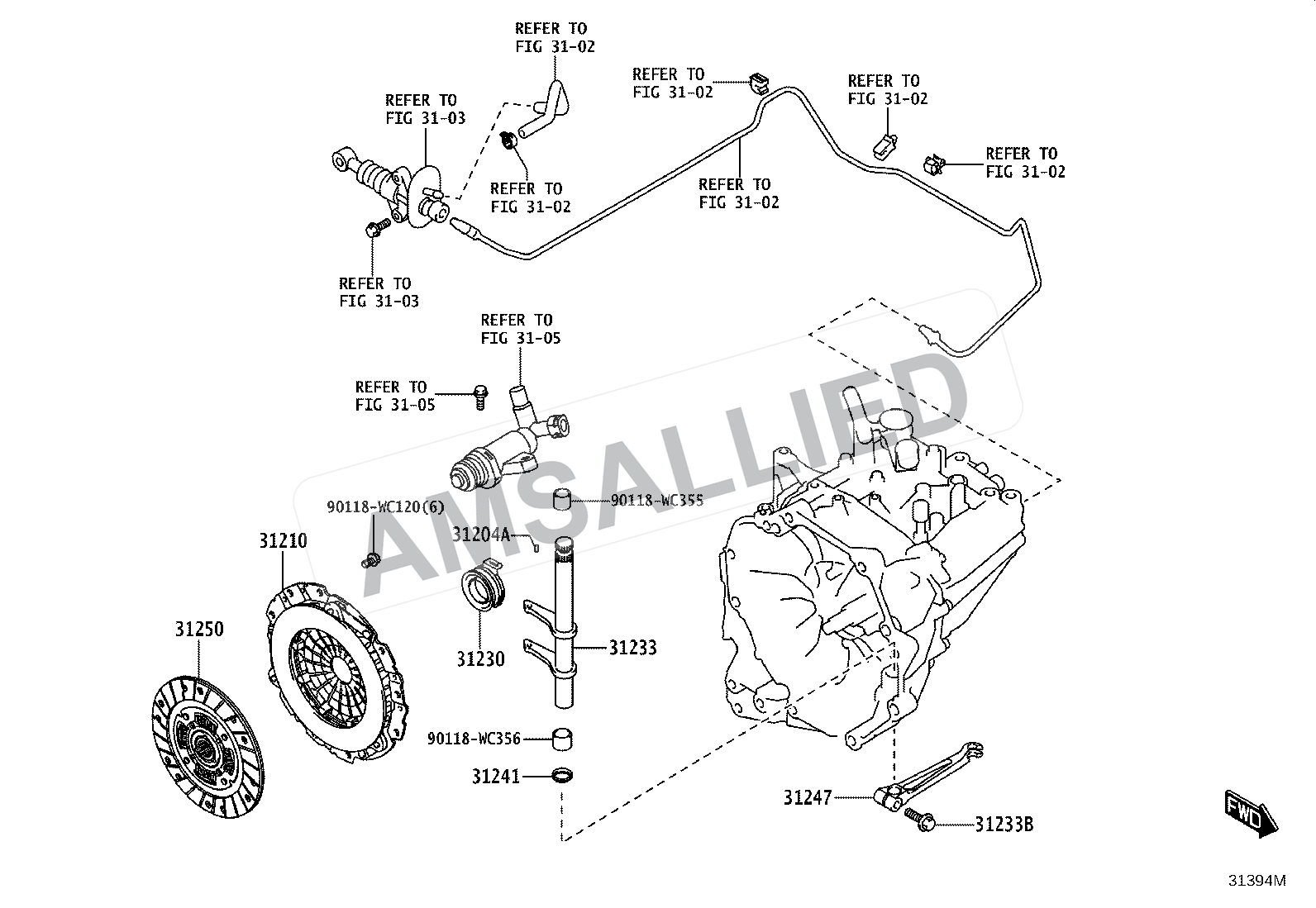

Figure 3101 · Clutch & Release Fork
16 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
16 partsCover Assy, Clutch
PNC 31210
Cover Assy, Clutch
PNC 31210
Bearing Assy, Clutch Release
PNC 31230
Fork, Clutch Release
PNC 31233
Disc Assy, Clutch
PNC 31250
Disc Assy, Clutch
PNC 31250
Disc Assy, Clutch
PNC 31250
Lever, Clutch Release Fork
PNC 31247
Lever, Clutch Release Fork
PNC 31247
Bolt(for Release Fork & Release Lever Setting)
PNC 31233B
Pin(for Clutch Release Fork)
PNC 31204A
Seal, Clutch Release Fork Dust
PNC 31241
Diagram Hardware / Fastener
PNC 90118WC120
Diagram Hardware / Fastener
PNC 90118WC356
Diagram Hardware / Fastener
PNC 90118WC355
