Figure 2501 · Exhaust Gas Recirculation System

12 genuine catalog part numbers · Production from 2024-04

Open interactive figure

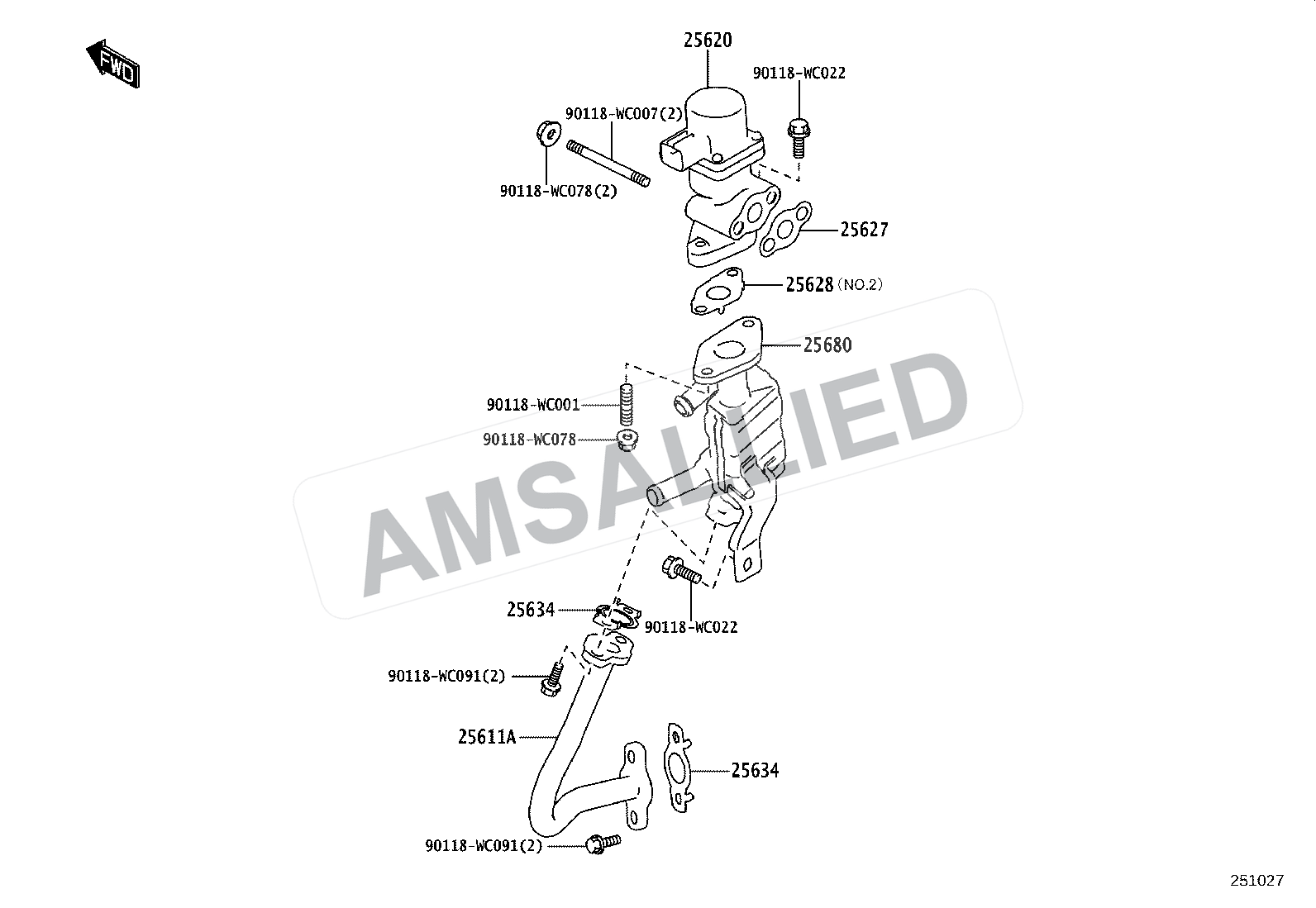

Toyota Taisor Exhaust Gas Recirculation System exploded parts diagram, figure 2501 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

12 parts

Cooler Assy, Egr

PNC 25680

Pipe, Egr, No.1

PNC 25611A

Valve Assy, Egr

PNC 25620

Gasket, Egr Valve

PNC 25627

Gasket, Egr Inlet

PNC 25628

Gasket, Egr Inlet

PNC 25628

Gasket, Egr Pipe

PNC 25634

Diagram Hardware / Fastener

PNC 90118WC022

Diagram Hardware / Fastener

PNC 90118WC091

Diagram Hardware / Fastener

PNC 90118WC001

Diagram Hardware / Fastener

PNC 90118WC078

Diagram Hardware / Fastener

PNC 90118WC007
