Tool / Engine / Fuel

Figure 1708 · Vacuum Piping

16 genuine catalog part numbers · Production from 2024-04

Open interactive figure

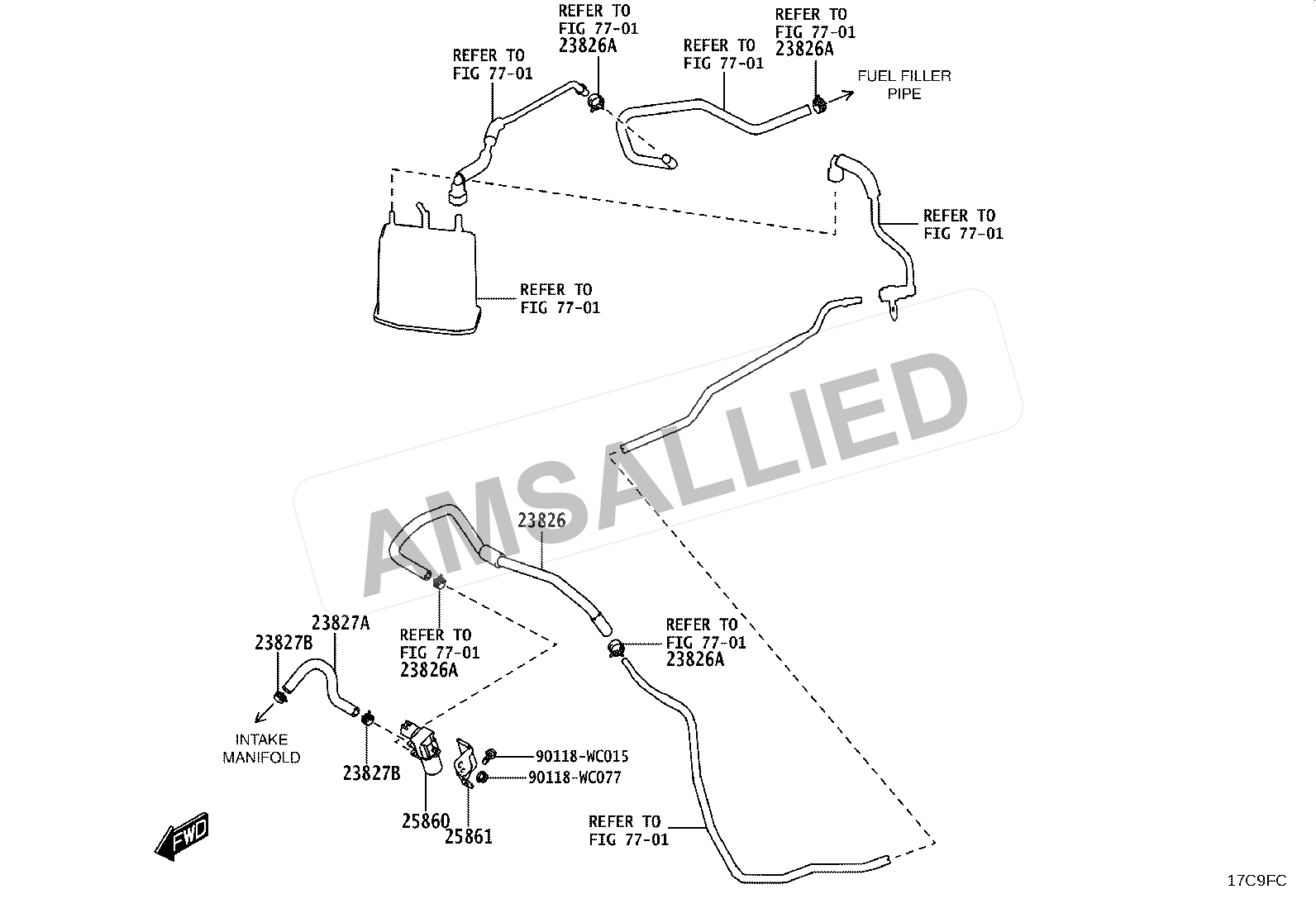

Toyota Taisor Vacuum Piping exploded parts diagram, figure 1708 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

16 parts

17122-WC001

Valve, Check, No.1

PNC 23285A

17361-WC002

Tube, Air

PNC 17361M

17369-WC002

Bracket

PNC 23211K

23826-WC027

Hose, Fuel Vapor Feed, No.1

PNC 23826

23826-WC028

Hose, Fuel Vapor Feed, No.1

PNC 23826

23826-WC029

Hose, Fuel Vapor Feed, No.1

PNC 23826

23827-WC011

Hose, Fuel Vapor Feed, No.2

PNC 23827A

23827-WC014

Hose, Fuel Vapor Feed, No.2

PNC 23827A

25860-WC001

Valve Assy, Vacuum Switching, No.1

PNC 25860

25861-WC002

Bracket, Vacuum Switching Valve

PNC 25861

90118-WC234

Clip(for Fuel Vapor Feed Hose, No.1)

PNC 23826A, 23827B

90118-WC015

Diagram Hardware / Fastener

PNC 90118WC015

90118-WC077

Diagram Hardware / Fastener

PNC 90118WC077

90118-WCT91

Diagram Hardware / Fastener

PNC 90118WCT91

90118-WCT94

Diagram Hardware / Fastener

PNC 90118WCT94

90118-WCT98

Diagram Hardware / Fastener

PNC 90118WCT98
