Pipe, Ventilation
PNC 12229A
Tool / Engine / Fuel

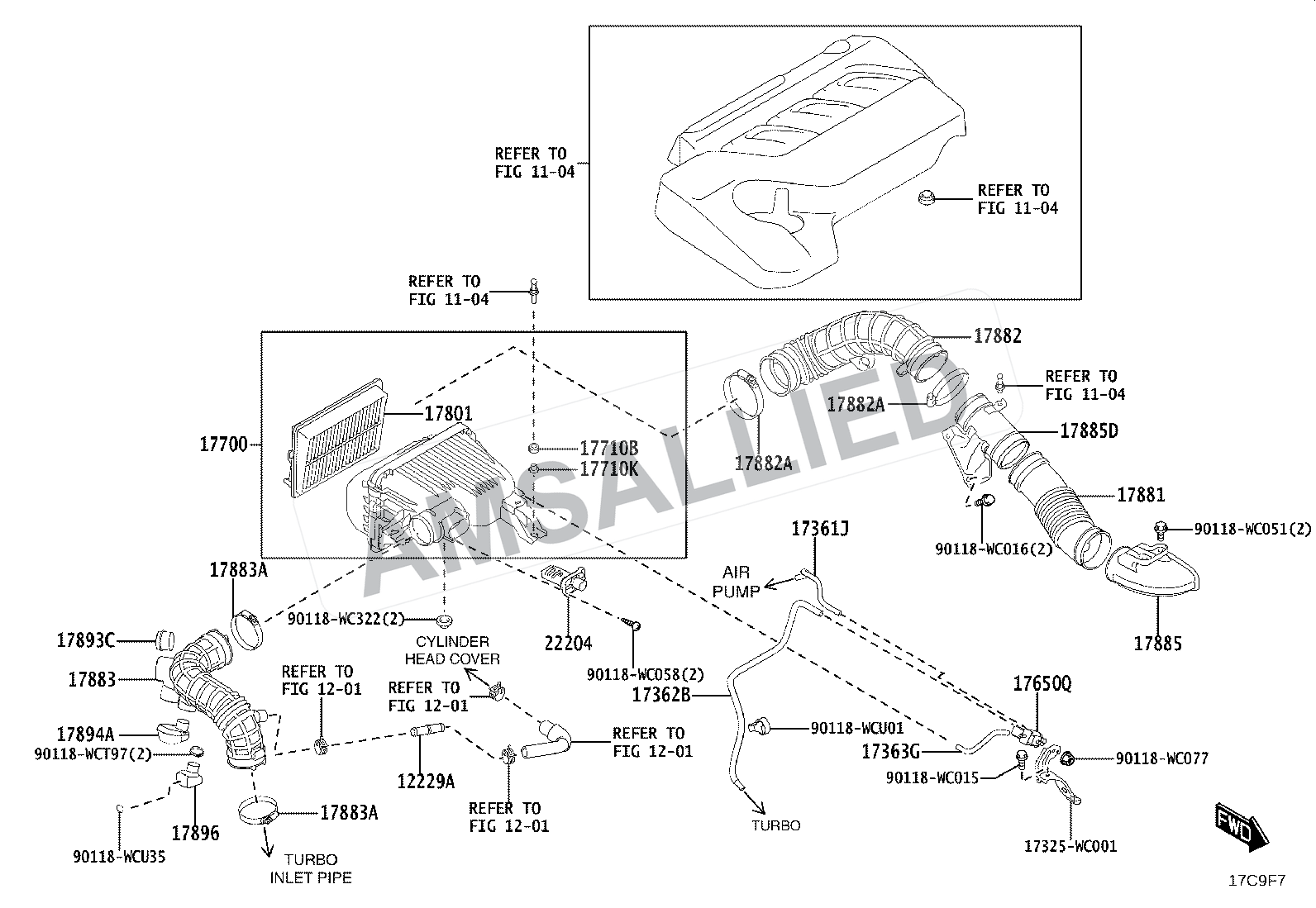

Figure 1703 · Air Cleaner
55 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
55 partsPipe, Ventilation
PNC 12229A
Hose(for Inter Cooler)
PNC 17133
Hose, Air, No.1(for Intercooler)
PNC 17341K
Hose, Air, No.2(for Intercooler)
PNC 17342F
Tube, Air, No.1
PNC 17361J
Tube, Air, No.2
PNC 17362B
Tube, Air, No.3
PNC 17363G
Pipe Assy, Air
PNC 17360D
Valve, Vacuum Switching
PNC 17650Q
Cleaner Assy, Air
PNC 17700
Cleaner Assy, Air
PNC 17700
Bracket, Air Cleaner Inlet Pipe
PNC 53766A
Element Sub-assy, Air Cleaner Filter
PNC 17801
Element Sub-assy, Air Cleaner Filter
PNC 17801
Hose, Air Cleaner, No.2
PNC 17882
Hose, Air Cleaner, No.1
PNC 17881
Hose, Air Cleaner, No.2
PNC 17882
Hose, Air Cleaner, No.3
PNC 17883
Pipe, Air Cleaner
PNC 17885
Pipe, Air Cleaner, No.2
PNC 17885D
Resonator, Intake Air, No.1
PNC 17893C
Resonator, Intake Air, No.2
PNC 17894A
Resonator, Intake Air, No.3
PNC 17896
Intercooler Assy
PNC 17940D
Protector, Intercooler
PNC 17943
Protector, Intercooler
PNC 17943
Protector, Intercooler
PNC 17943
Bracket, Intercooler Support
PNC 17945
Meter Sub-assy, Intake Air Flow
PNC 22204
Pipe, Air Cleaner
PNC 17885
Hose, Air Cleaner, No.1
PNC 17881
Grommet
PNC 17710B
Support, Air Cleaner
PNC 17769
Collar(for Air Cleaner)
PNC 17710K
Clamp, Hose, No.2(for Intercooler)
PNC 17342G, 17881C, 17883A
Clamp, Hose
PNC 17341L, 17881A
Clamp(for Air Cleaner Hose, No.2)
PNC 17882A
Collar(for Air Cleaner)
PNC 17710K
Grommet
PNC 17710B
Diagram Hardware / Fastener
PNC 90118WCU35
Diagram Hardware / Fastener
PNC 17325WC001
Diagram Hardware / Fastener
PNC 90118WC016
Diagram Hardware / Fastener
PNC 90118WCT97
Diagram Hardware / Fastener
PNC 90118WC058
Diagram Hardware / Fastener
PNC 90118WCU01
Diagram Hardware / Fastener
PNC 90118WC077
Diagram Hardware / Fastener
PNC 90118WC051
Diagram Hardware / Fastener
PNC 90118WC015
Diagram Hardware / Fastener
PNC 90118WC142
Diagram Hardware / Fastener
PNC 90118WC021
Diagram Hardware / Fastener
PNC 90118WCU16
Diagram Hardware / Fastener
PNC 90118WC129
Diagram Hardware / Fastener
PNC 90118WC022
Diagram Hardware / Fastener
PNC 90118WCU15
