Tool / Engine / Fuel

Figure 1701 · Manifold

65 genuine catalog part numbers · Production from 2024-04

Open interactive figure

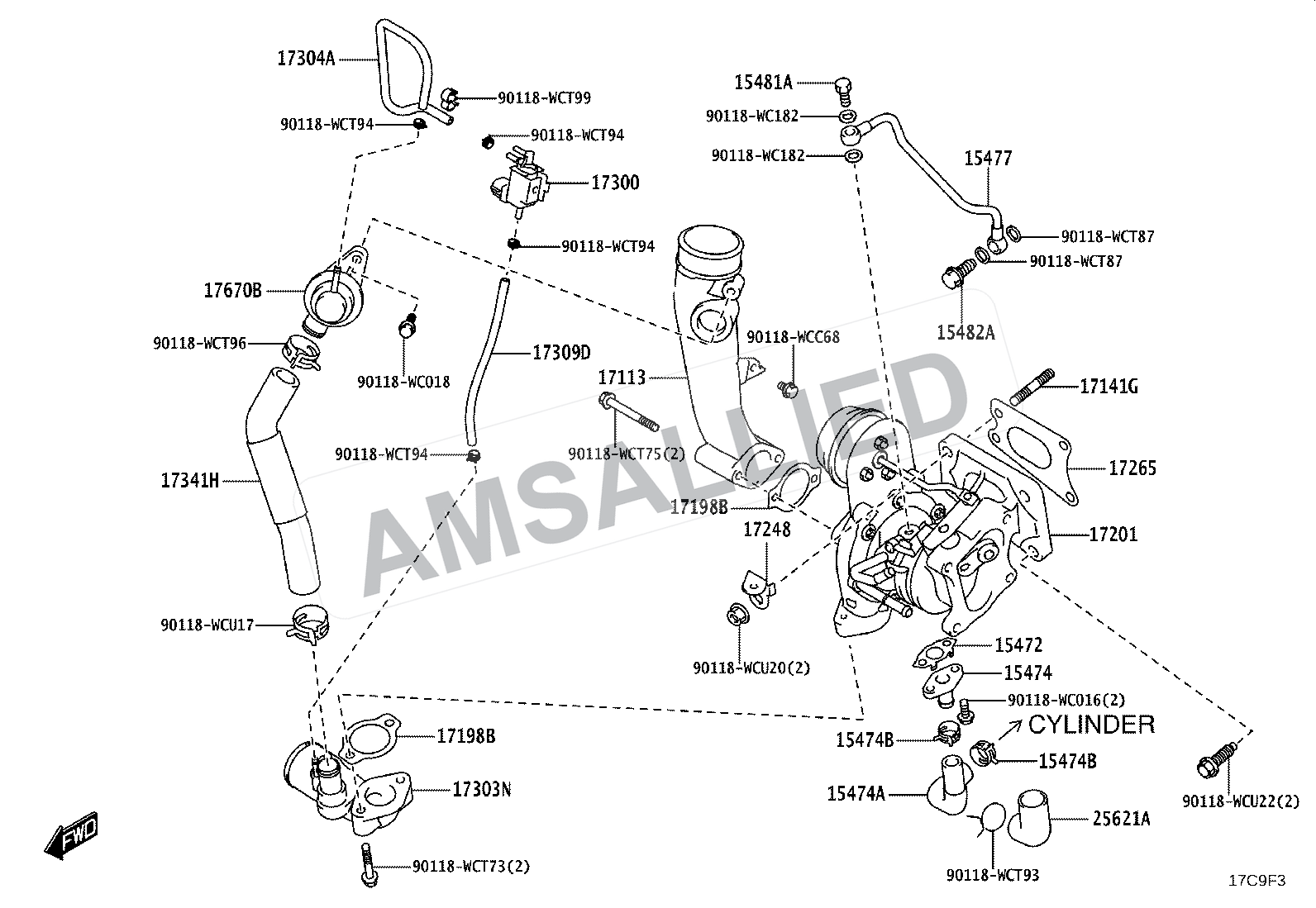

Toyota Taisor Manifold exploded parts diagram, figure 1701
AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

65 parts
17167-WC004

Insulator, Exhaust Manifold Heat, No.1

PNC 17167

17167-WC006

Insulator, Exhaust Manifold Heat, No.1

PNC 17167

17177-WC003

Gasket, Intake Manifold To Head, No.1

PNC 17177

17177-WC007

Gasket, Intake Manifold To Head, No.1

PNC 17177

17376-WC001

Gasket(for Turbocharger Sub-assy No.1)

PNC 17198B

25051-WC001

Converter Sub-assy, Exhaust Manifold

PNC 25051

90118-WC006

Bolt, Stud(for Intake Manifold To Cylinder Head)

PNC 17111Z

90118-WC236

Clamp Or Clip(for Turbo Oil Outlet Hose)

PNC 15474B

90118-WC326

Bolt, Stud(for Manifold To Cylinder Head)

PNC 17159

90118-WCT81

Bolt, Stud(for Manifold To Cylinder Head)

PNC 17159
