Tool / Engine / Fuel

Figure 1601 · Water Pump

10 genuine catalog part numbers · Production from 2024-04

Open interactive figure

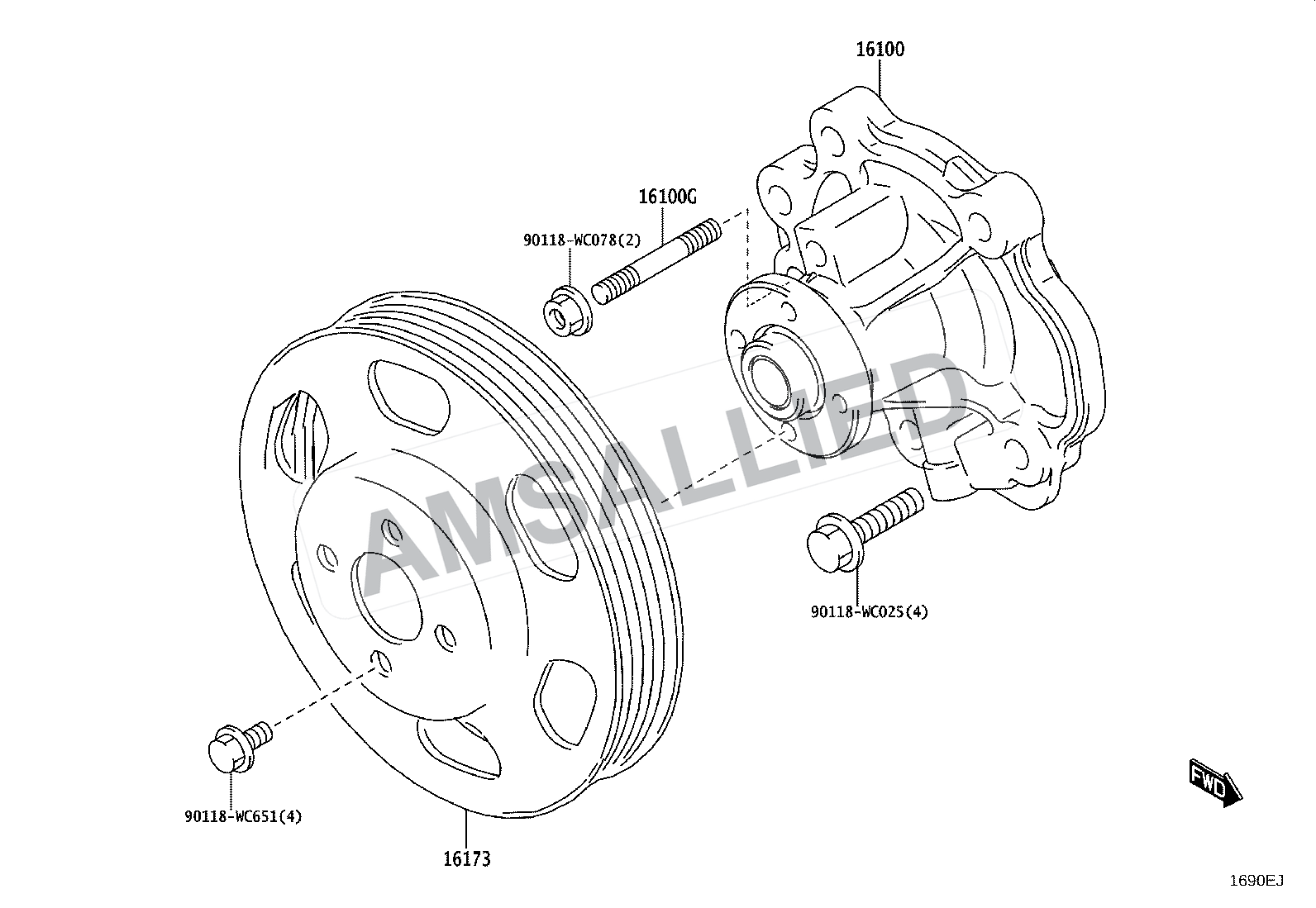

Toyota Taisor Water Pump exploded parts diagram, figure 1601 — AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

10 parts

Pump Assy, Engine Water

PNC 16100

Pulley, Water Pump

PNC 16173

Pulley, Water Pump

PNC 16173

Tensioner Sub-assy, V-ribbed Belt

PNC 16601

Tensioner Assy, V-ribbed Belt

PNC 16620

Bolt, Stud(for Water Pump Set)

PNC 16100G

Diagram Hardware / Fastener

PNC 90118WC078

Diagram Hardware / Fastener

PNC 90118WC651

Diagram Hardware / Fastener

PNC 90118WC025

Diagram Hardware / Fastener

PNC 90118WC816
