Pump Assy, Oil
PNC 15100
Tool / Engine / Fuel

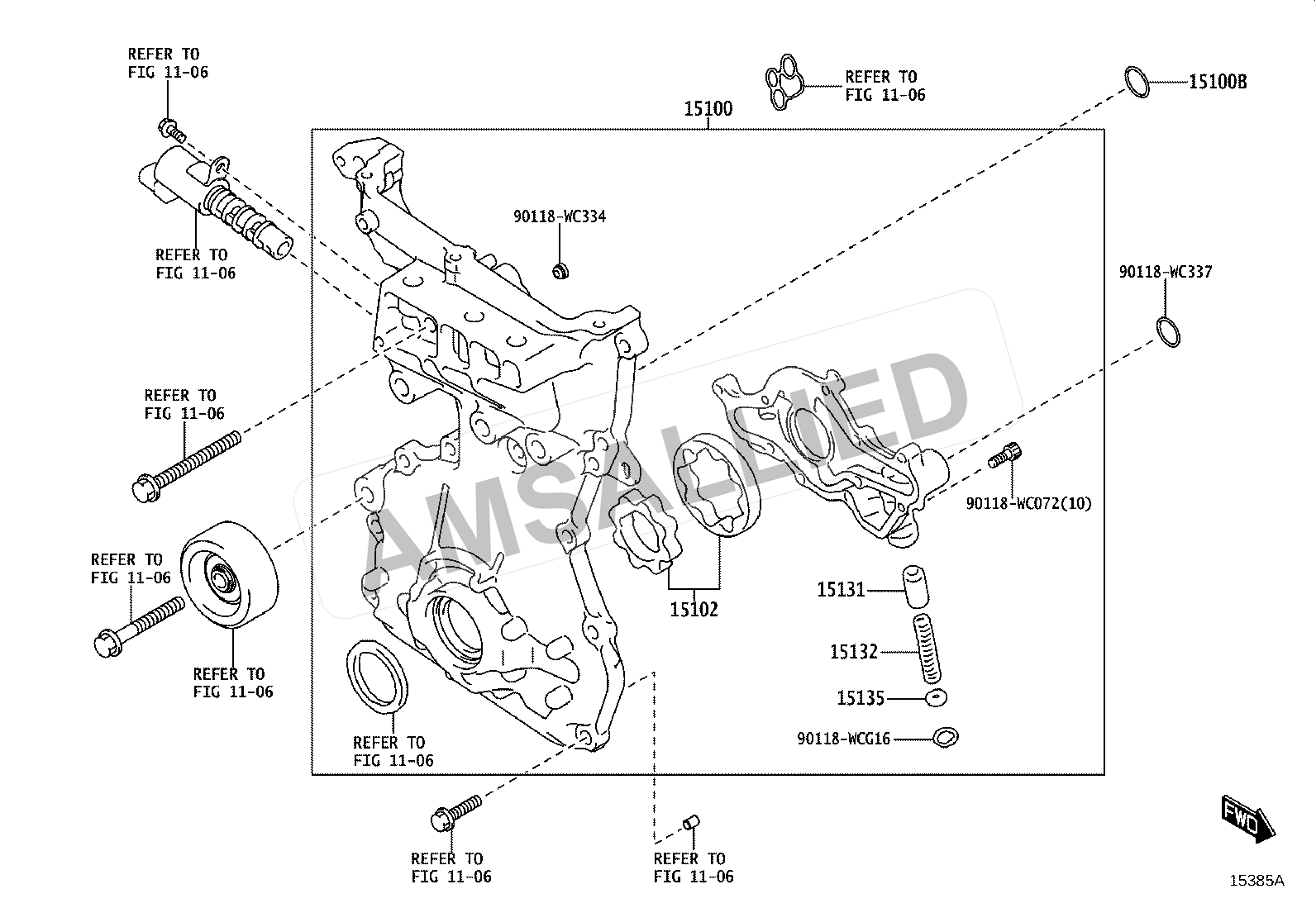

Figure 1501 · Engine Oil Pump
18 genuine catalog part numbers · Production from 2024-04
Part numbers in this diagram
18 partsPump Assy, Oil
PNC 15100
Rotor Set, Oil Pump
PNC 15102
Rotor Set, Oil Pump
PNC 15102
Strainer Sub-assy, Oil
PNC 15104
Strainer Sub-assy, Oil
PNC 15104
Valve, Oil Pump Relief
PNC 15131
Valve, Oil Pump Relief
PNC 15131
Spring, Oil Pump Relief Valve
PNC 15132
Retainer, Oil Pump Relief Valve
PNC 15135
Bolt, Stud(for Oil Strainer)
PNC 15104E
Ring, O(for Oil Pump)
PNC 15100B
Gasket, Oil Strainer
PNC 15147
Diagram Hardware / Fastener
PNC 90118WC334
Diagram Hardware / Fastener
PNC 90118WCG16
Diagram Hardware / Fastener
PNC 90118WC072
Diagram Hardware / Fastener
PNC 90118WC070
Diagram Hardware / Fastener
PNC 90118WC077
