Tool / Engine / Fuel

Figure 1107 · Mounting

27 genuine catalog part numbers · Production from 2024-04

Open interactive figure

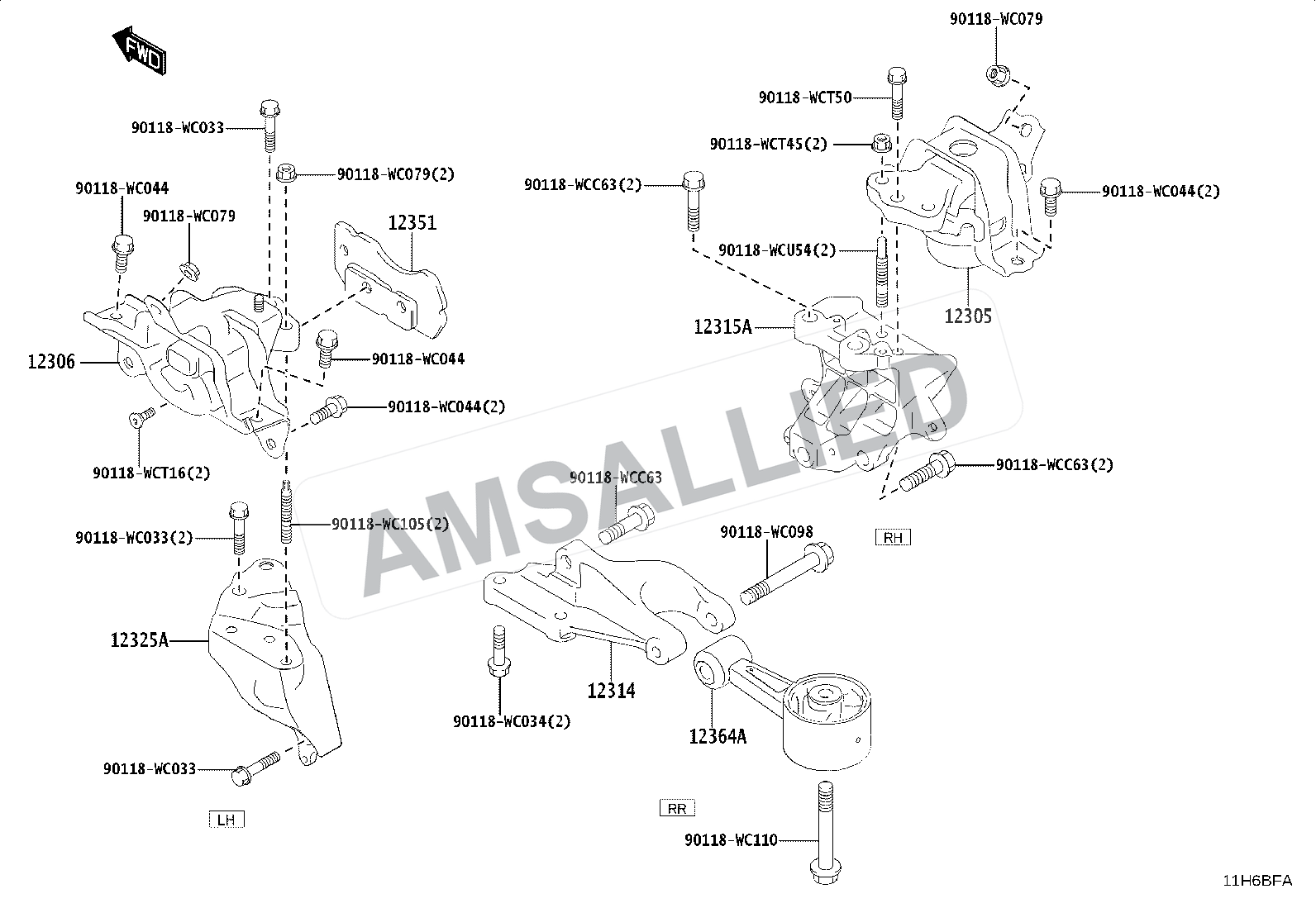

Toyota Taisor Mounting exploded parts diagram, figure 1107
AMS Allied watermarked Toyota Taisor reference diagram.

Part numbers in this diagram

27 parts
12305-WC015

Insulator Sub-assy, Engine Mounting, Rh

PNC 12305

12305-WC016

Insulator Sub-assy, Engine Mounting, Rh

PNC 12305

12305-WC017

Insulator Sub-assy, Engine Mounting, Rh

PNC 12305

12306-WC009

Insulator Sub-assy, Engine Mounting, Lh

PNC 12306

12306-WC019

Insulator Sub-assy, Engine Mounting, Lh

PNC 12306

12306-WC022

Insulator Sub-assy, Engine Mounting, Lh

PNC 12306

12313-WC001

Bracket, Engine Lateral Control Rod

PNC 12314

12313-WC014

Bracket, Engine Lateral Control Rod

PNC 12314

12313-WC015

Bracket, Engine Lateral Control Rod

PNC 12314

12315-WC003

Bracket, Engine Mounting, Rh(for Transverse Engine)

PNC 12315A

12325-WC010

Bracket, Engine Mounting, Lh(for Transverse Engine)

PNC 12325A
